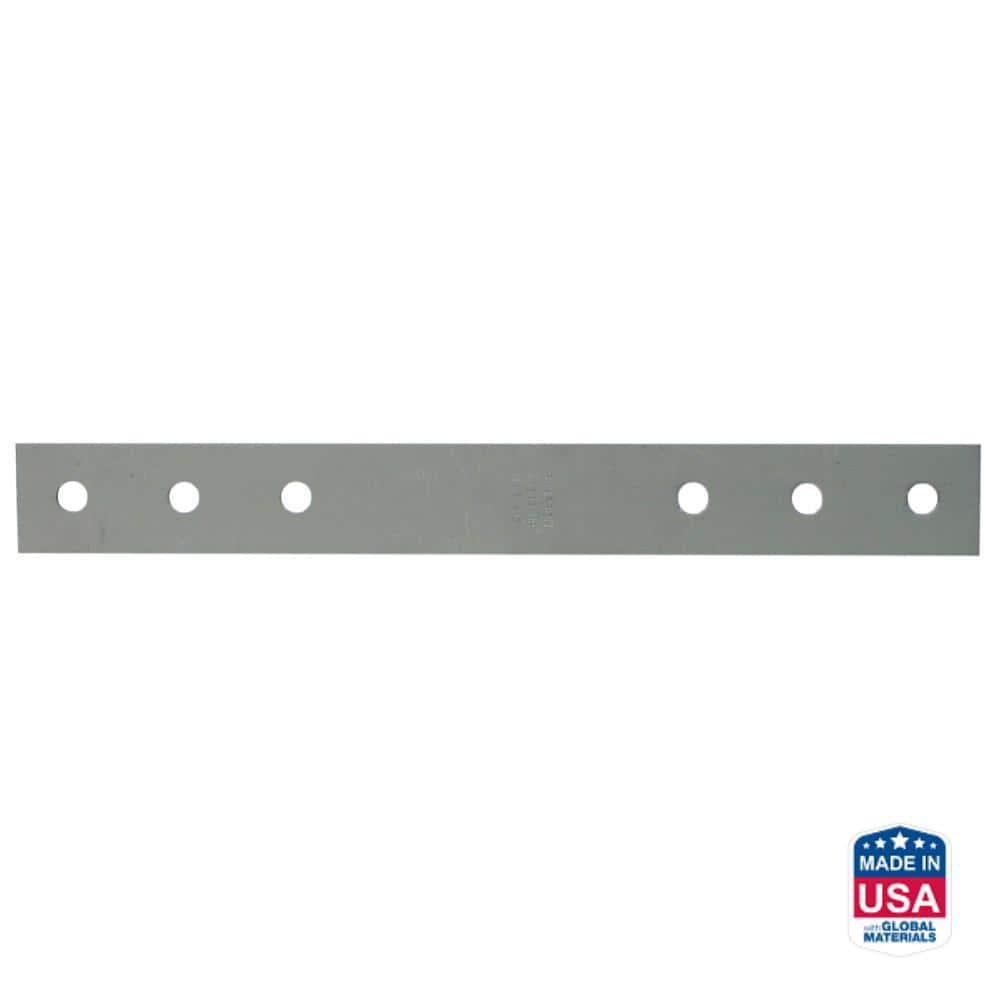

Simpson Heavy Strap Tie HST2

Mfr.: Simpson Strong-Tie
Item #: I090742
Mfr. #: HST2
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $34.48
i h h

Description

The Simpson Strong-Tie HST2 is a high-strength heavy strap tie designed to support concentrated loads by creating a robust connection between wood girders and piles. These load-rated, precut straps provide essential structural reinforcement at wall intersections, ridge ties, and locations where top or bottom plates are cut. Engineered for durability, the HST2 is crafted from heavy 7-gauge steel with a G90 galvanized finish to ensure long-lasting performance and corrosion resistance in demanding structural environments.
  • 7-Gauge Steel Construction
  • G90 Galvanized Finish
  • Precut for Installation Convenience

Features

  • Designed to resist wind and seismic forces in structural framing applications.

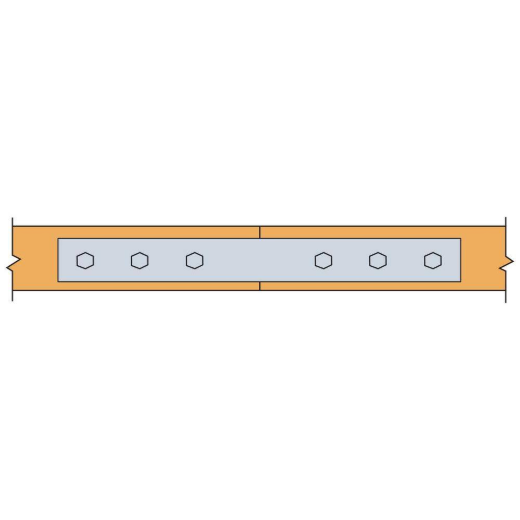

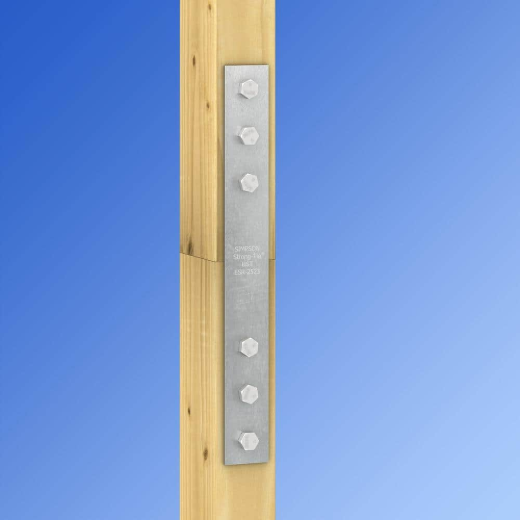

  • Versatile design allows for installation on both the wide and narrow faces of lumber.
  • Optimized for heavy tension loads with a load rating of up to 5,220 lbs in DF/SP lumber.

Includes

  • (1) HST2 Heavy Strap Tie
Products specifications
Model Number HST2
Gauge 7
Material Steel
Finish G90 Galvanized
Length 21-1/4 inch
Width 2-1/2 inch
Fastener Type 5/8 inch Machine Bolt
Fastener Quantity 6
Load Capacity (DFSP) 5,220 lbs
*
*
*
