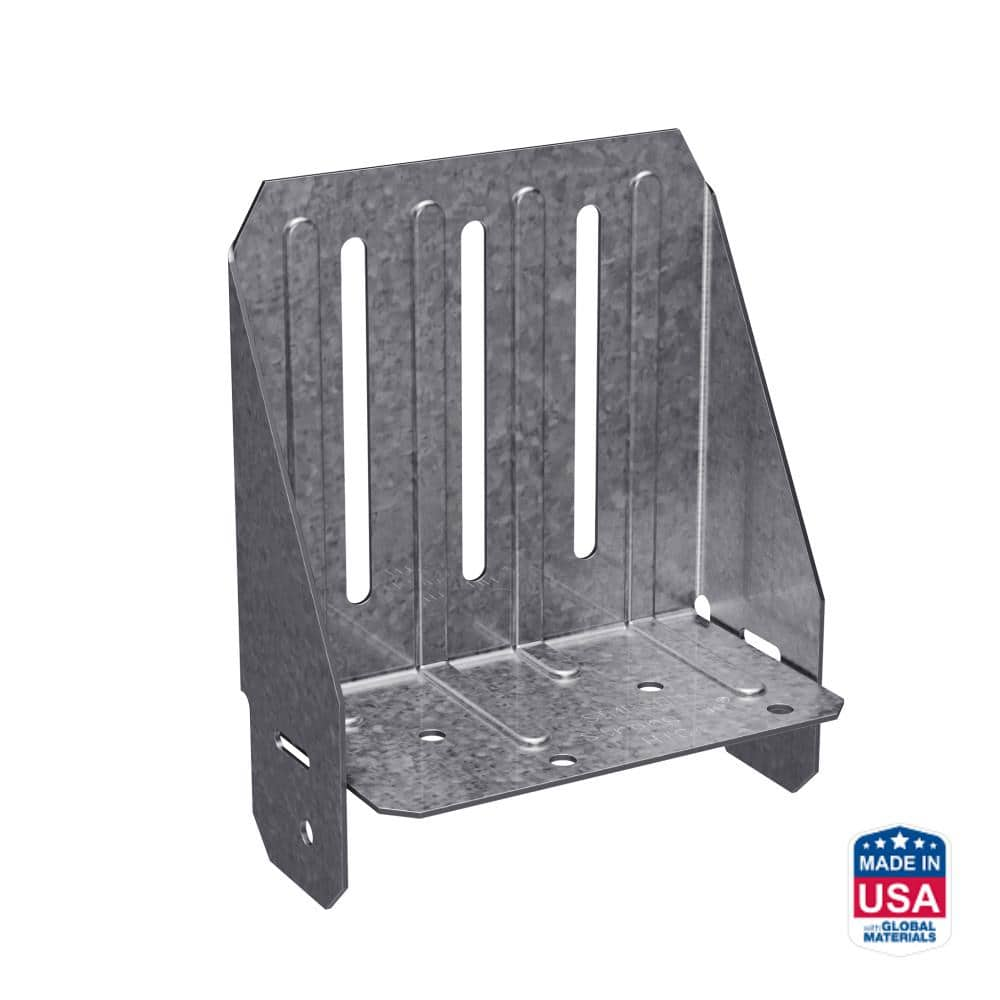

Simpson Heavy Truss Clip HTC4

Mfr.: Simpson Strong-Tie
Item #: I093166
Mfr. #: HTC4
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $9.10
i h h

Description

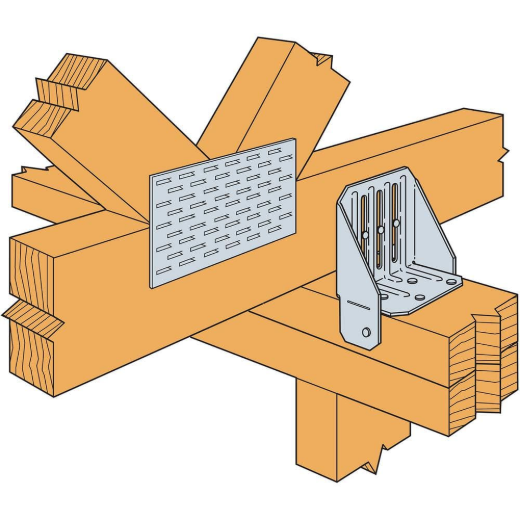

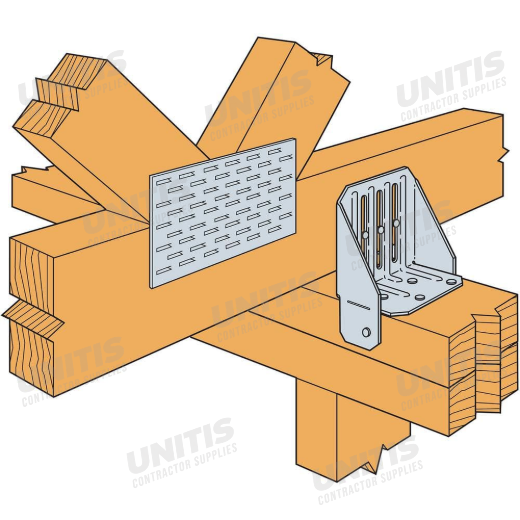

The Simpson Strong-Tie HTC4 Heavy Truss Clip is engineered for alignment control between roof trusses and nonbearing walls. Its design features a 2 1/2-inch slot that permits essential vertical truss chord movement when loads are applied, preventing undue stress. Constructed from durable 18-gauge galvanized steel, this clip offers robust performance and resistance to corrosion, ensuring longevity in construction applications. It's ideal for ensuring structural integrity while allowing for necessary structural adjustments under load. Ideal for wood-to-wood connections, it provides high lateral capacity for added safety.
  • Alignment control between roof truss and nonbearing walls
  • 2 1/2 inch slot for vertical truss chord movement
  • Durable 18-gauge steel construction
  • G90 Galvanized finish for corrosion resistance

Features

  • Provides high lateral capacity.
  • Available for steel truss applications (S/HTC model).
  • Not intended for floor applications due to potential for joist deflection and squeaks.

Includes

  • 1x Heavy Truss Clip (HTC4)

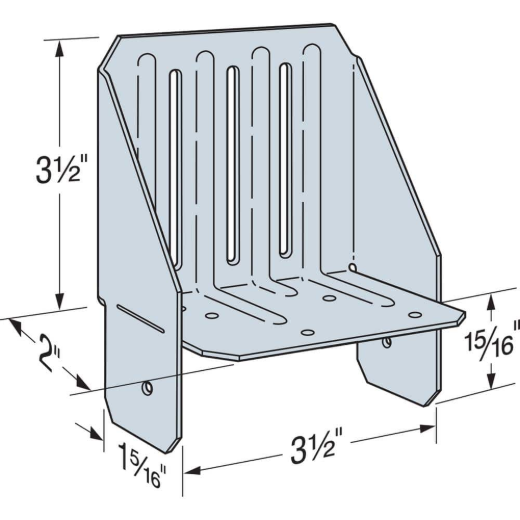

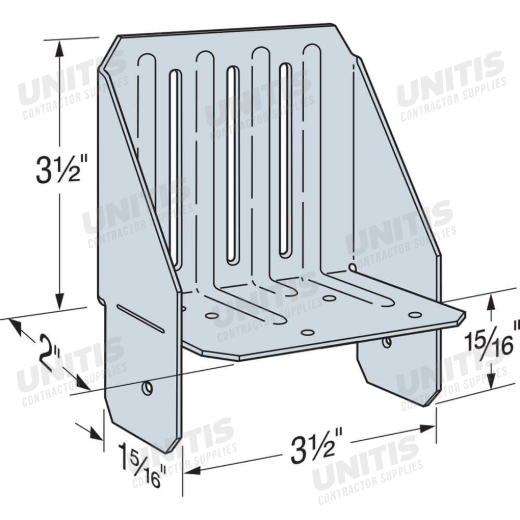

Products specifications
Material 18 gauge Steel
Finish G90 Galvanized
Slot Size 2 1/2 inch
Weight 0.3 lb
Fasteners Required (Base) (6) 0.148 inch x 3 inch Nails
Fasteners Required (Slot) (3) 0.148 inch x 3 inch Nails
Gauge 18
*
*
*
