Simpson Heavy U-Shaped Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091717
Mfr. #: HUS26Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $9.26
i h h

Description

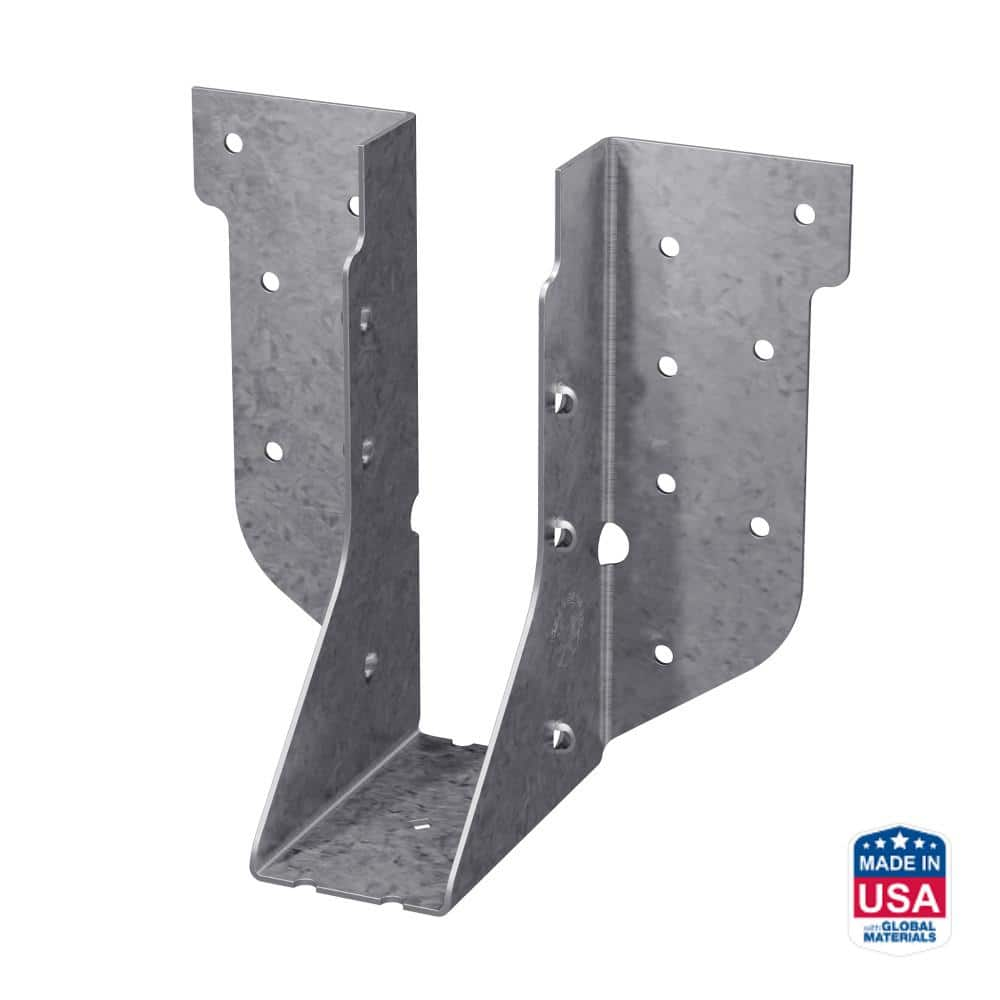

The Simpson Strong-Tie HUS26Z is a heavy-duty, face-mount U-shaped joist hanger designed to provide superior support and load distribution for 2x6 wood framing applications. It features double-shear nailing technology, which improves lateral stability and allows for faster installation with fewer fasteners. Engineered with a ZMAX galvanized coating, this hanger offers enhanced corrosion resistance, making it an ideal choice for outdoor, coastal, and high-moisture environments.
  • ZMAX Galvanized Coating for superior corrosion resistance
  • Double-Shear Nailing Technology for increased load capacity

Features

  • Heavy-duty design for high-capacity applications
  • Compatible with solid sawn lumber, plated truss, and engineered wood

Includes

  • 1 x HUS26Z Heavy U-Shaped Hanger
Products specifications
Material Carbon Steel
Finish ZMAX
Gauge 16
Joist Size 2 x 6
Seat Width 1-5/8 inch
Height 5-3/8 inch
For Treated Lumber Yes
*
*
*
