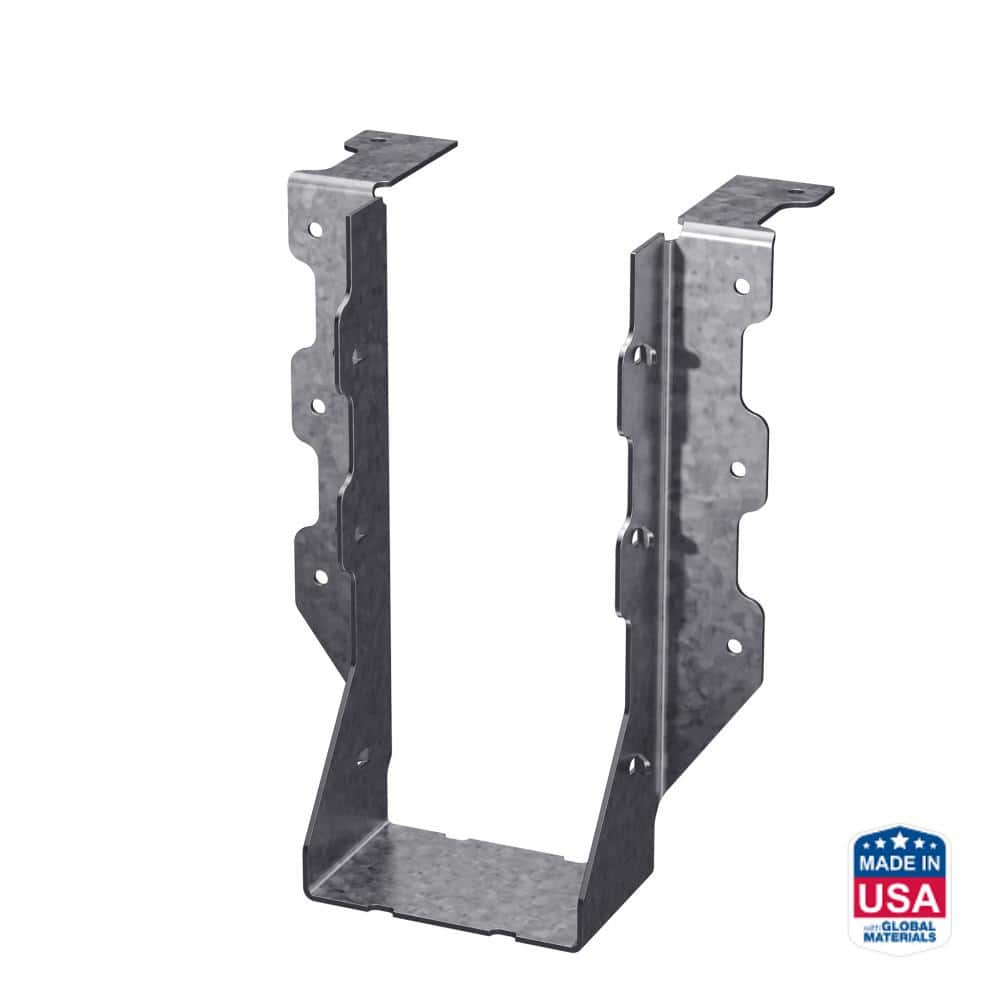

Simpson Heavy U-Shaped Joist Hanger HUS28-2

Mfr.: Simpson Strong-Tie
Item #: I091719
Mfr. #: HUS28-2
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $14.12
i h h

Description

The Simpson Strong-Tie HUS28-2 is a heavy-duty, face-mount joist hanger designed specifically for double 2x8 lumber applications. Engineered for superior performance, it features double-shear nailing, which distributes the load through two points on each joist nail to provide increased strength and improved load transfer. This hanger is constructed from G90 galvanized steel, offering excellent corrosion resistance for long-lasting structural reliability in various framing environments.
  • Heavy-duty construction for high load capacity
  • Double-shear nailing design for enhanced strength

Features

  • G90 galvanized coating for corrosion resistance
  • Code-compliant design for structural reliability
  • Compatible with solid sawn lumber, engineered wood, and plated trusses

Includes

  • (1) HUS28-2 Joist Hanger
Products specifications
Finish G90 Galvanized
Material Carbon Steel
Thickness 14 Gauge
Joist Size Double 2 inch x 8 inch
Width 3-1/8 inch
Height 7-3/16 inch
*
*
*
