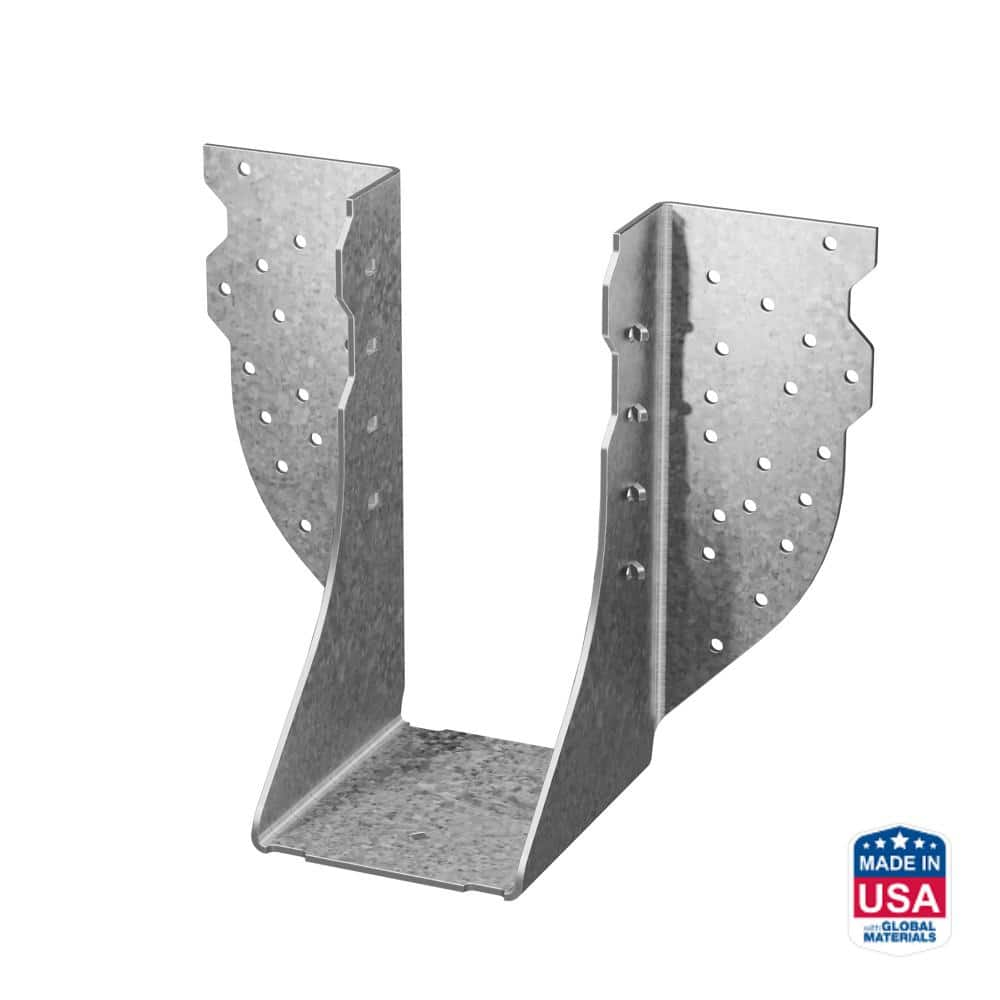

Simpson HGUS282 2x8 Double Face Mount Hanger

Mfr.: Simpson Strong-Tie
Item #: I091292
Mfr. #: HGUS28-2
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $50.37
i h h

Description

The Simpson Strong-Tie HGUS282 is an extra-heavy-capacity face-mount hanger specifically engineered for demanding structural applications requiring robust girder support. This value-engineered hanger features a patented double-shear nailing design that distributes loads through two points on each joist nail, providing superior strength and stability. It is an ideal choice for residential construction, deck beams, and commercial projects where high-load values and long-term reliability are essential. The hanger is manufactured from durable 12-gauge steel to ensure exceptional structural integrity.
  • Double-Shear Nailing Technology
  • Extra-Heavy Load Capacity
  • G90 Galvanized Finish

Features

  • Tested, load-rated, and code-compliant for safety.
  • Can be installed after the beam is secured in place.
  • Uses common nails for all connections.
  • Designed for medium-to-high load truss applications.

Includes

  • HGUS282 Double 2x8 Face Mount Hanger

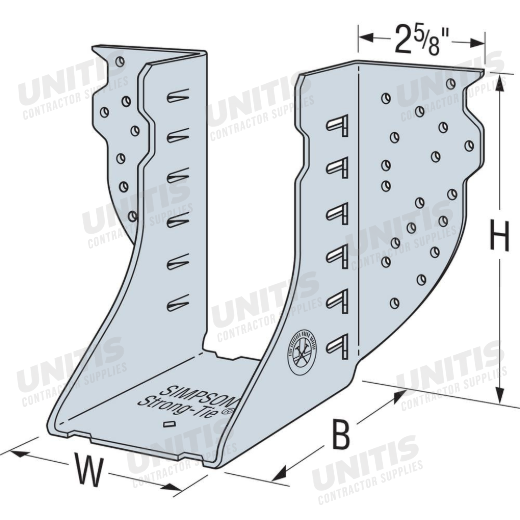

Products specifications
Material 12-Gauge Steel
Finish G90 Galvanized
Joist Size Double 2x8

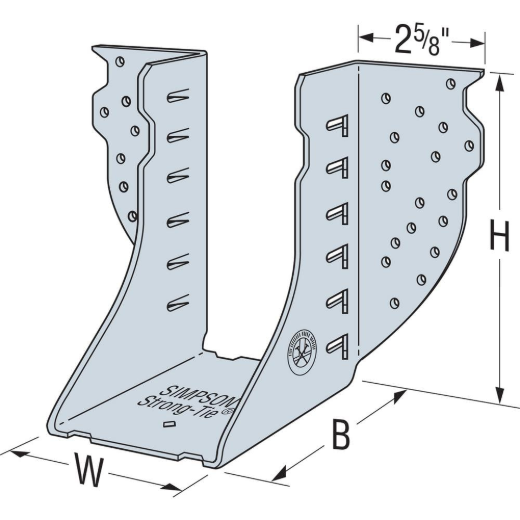

Seat Width 3-5/16 inch
Height 7-3/16 inch
Header Fasteners (36) 0.162 inch x 3-1/2 inch Nails
Joist Fasteners (12) 0.162 inch x 3-1/2 inch Nails
Uplift Load (DFSP) 3235 lb
Floor Load (DFSP) 7460 lb
Model Number HGUS282 (HGUS28-2)
*
*
*
