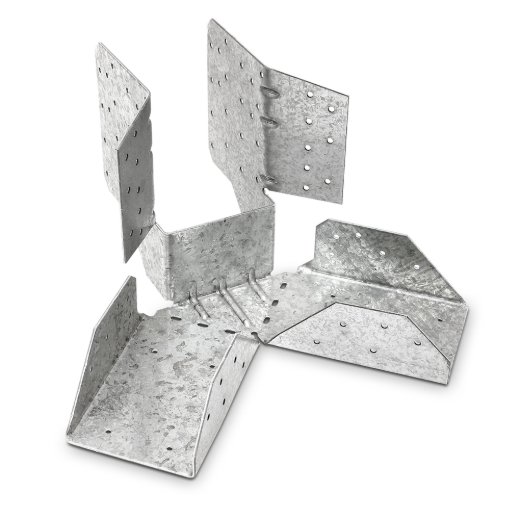

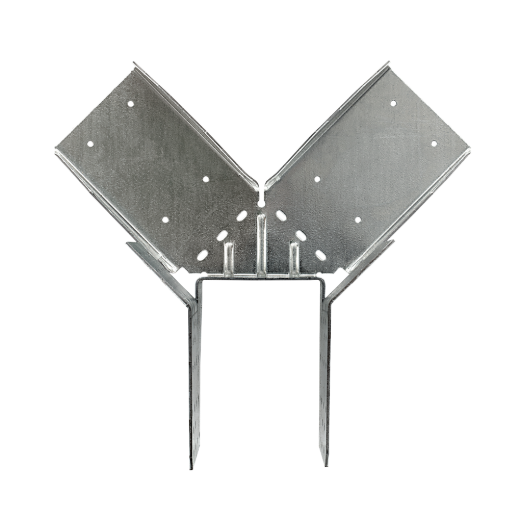

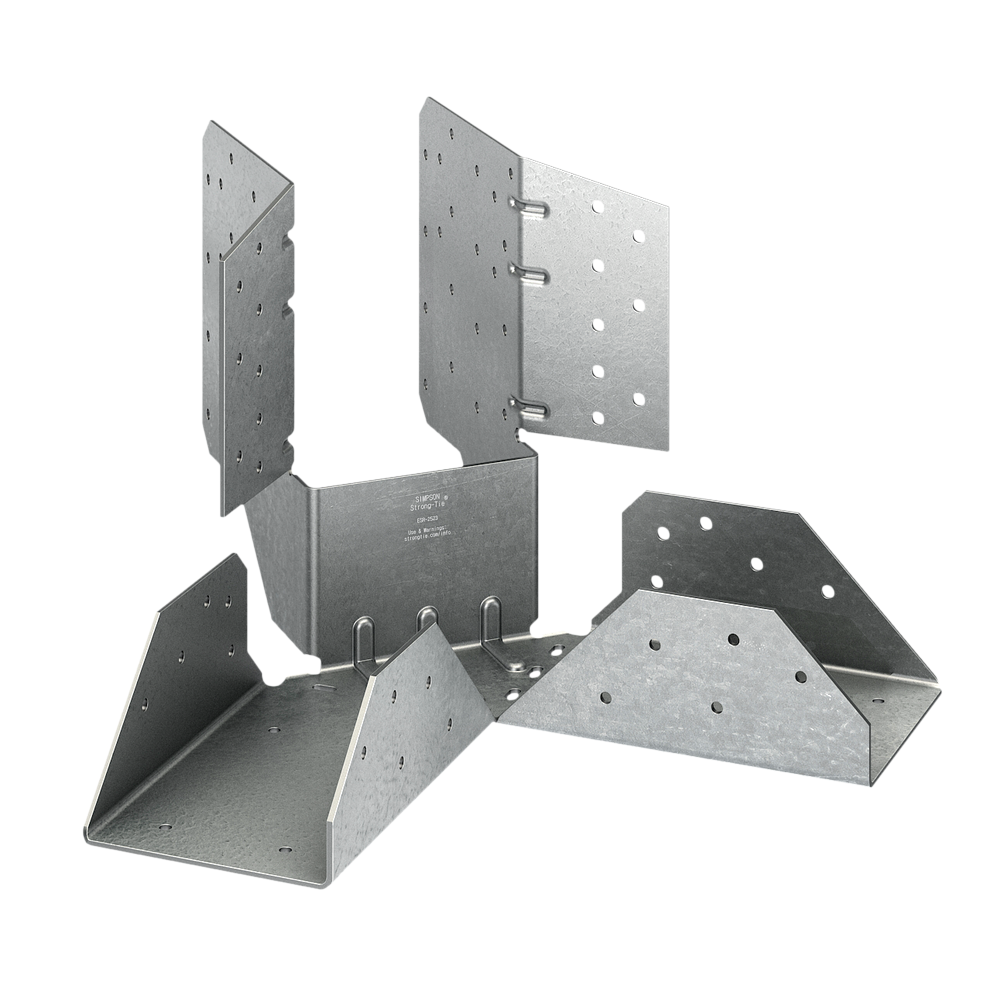

Simpson HHRC Galvanized Hip-Ridge Connector for 4x Ridge, 4x Hip

Mfr.: Simpson Strong-Tie
Item #: I093135
Mfr. #: HHRC44
*
Pickup at Corona | Change Delivering to 90001 | Change

Price: $339.18
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The HHRC attaches hip beams to the end of a ridge beam. It takes the inconsistency out of this common detail and assigns a standard load capacity. The HHRC can be placed higher or lower on the ridge beam so the hips are flush at the top.
  • Attaches hip beams to the end of a ridge beam
  • Standard load capacity
  • Adjustable placement for flush hips

Features

  • Nominal solid sawn member size: Ridge 4x, Hip 4x
  • SCL member size: Ridge 3-1/2 in., hip 3-1/2 in.
  • Connector seat width: Hip 3-5/8 in., ridge 3-5/8 in.
  • Made from 12-gauge steel
  • Galvanized (G90) for extra corrosion resistance
  • Strong-Drive SD Connector screws included

Includes

  • Strong-Drive SD Connector screws

Specifications


Nominal solid sawn member sizeRidge 4x, Hip 4xSCL member sizeRidge 3-1/2 inch, hip 3-1/2 inch
Connector seat widthHip 3-5/8 inch, ridge 3-5/8 inchMaterial12-gauge steel
FinishGalvanized (G90)
Products specifications
Code Listing ICC-ES ESR-2523
Country of Origin Varies (subject to change)
Finish / Coating Galvanized (G90)
Manufacturer's Warranty 25 Year Limited
Material Steel
Steel Gauge 18 ga
*
*
*
