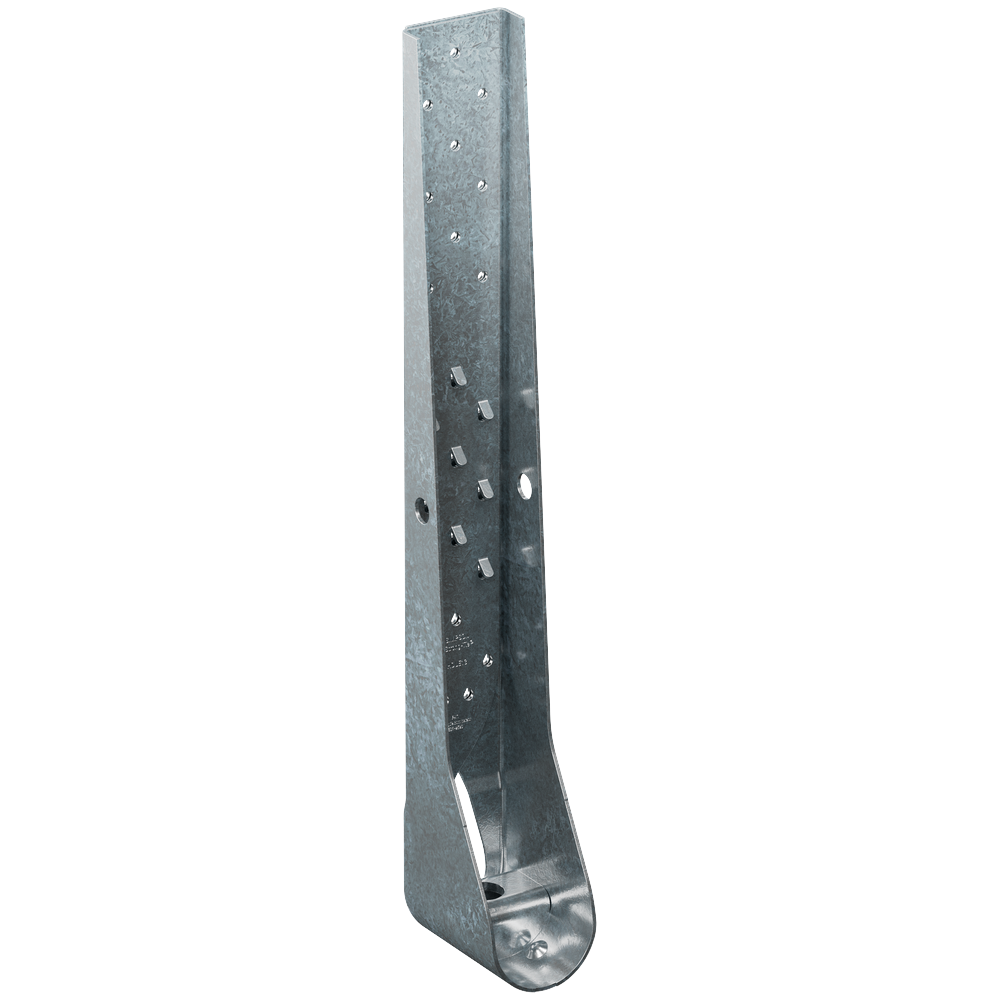

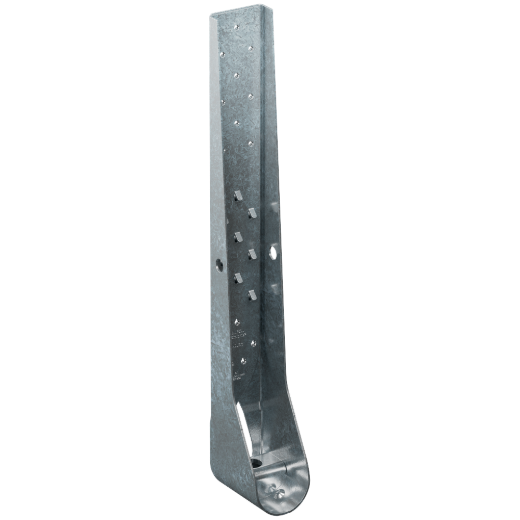

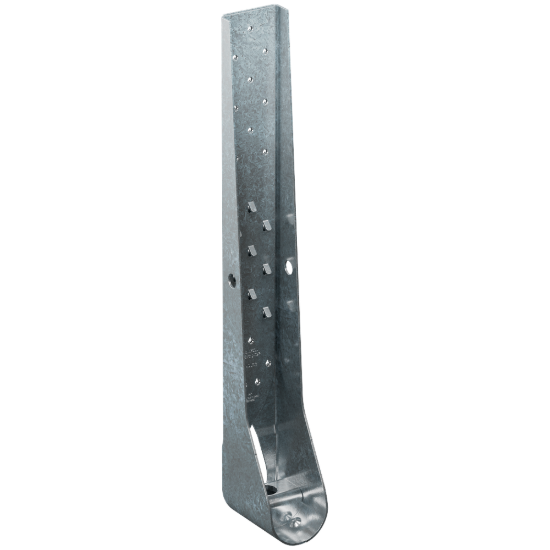

Simpson HDUE 23-1/16" Galvanized Predeflected Holdown with Strong-Drive SDS Screws

Mfr.: Simpson Strong-Tie
Item #: I093086
Mfr. #: HDUE13-SDS3.5
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $151.49
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

HDUE13-SDS3.5 is a 12-gauge galvanized predeflected holdown with a height of 23-1/16 inches, designed for high-capacity tension applications. It includes Strong-Drive SDS Heavy-Duty Connector screws and a heavy-hex anchor nut.
  • 12-gauge steel construction
  • Zinc Galvanized, G90 coating
  • Height: 23-1/16 inches
  • Width: 3 inches
  • Includes 23 screws and heavy-hex anchor nut

Features

  • Predeflected design for improved load transfer
  • Includes both perpendicular and angled screw installation
  • Compatible with 1-inch anchor bolt
  • Supports wood member sizes from 5-1/2 x 3-1/2 to 5-1/2 x 5-1/2 inches
  • Allowable tension loads up to 13,110 lbs for DF/SP

Includes

  • 23 Strong-Drive SDS Heavy-Duty Connector screws (1/4 in. x 3-1/2 in.)
  • 1 crescent washer
  • 1 heavy-hex anchor nut

Specifications


Gauge12Width (W)3 inch
Height (H)23-1/16 inchBase (B)4-5/16 inch
CL1-7/16 inchSO1-1/2 inch
CoatingZinc Galvanized, G90Anchor Bolt Diameter1 inch
Packaging Quantity1
*
*
*
