Simpson HSUL210-2 Double Joist Hanger Skewed Left

Mfr.: Simpson Strong-Tie
Item #: I091358
Mfr. #: HSUL210-2
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $67.02
i h h

Description

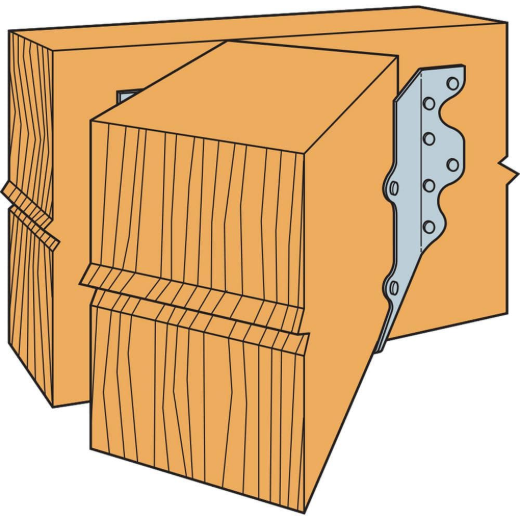

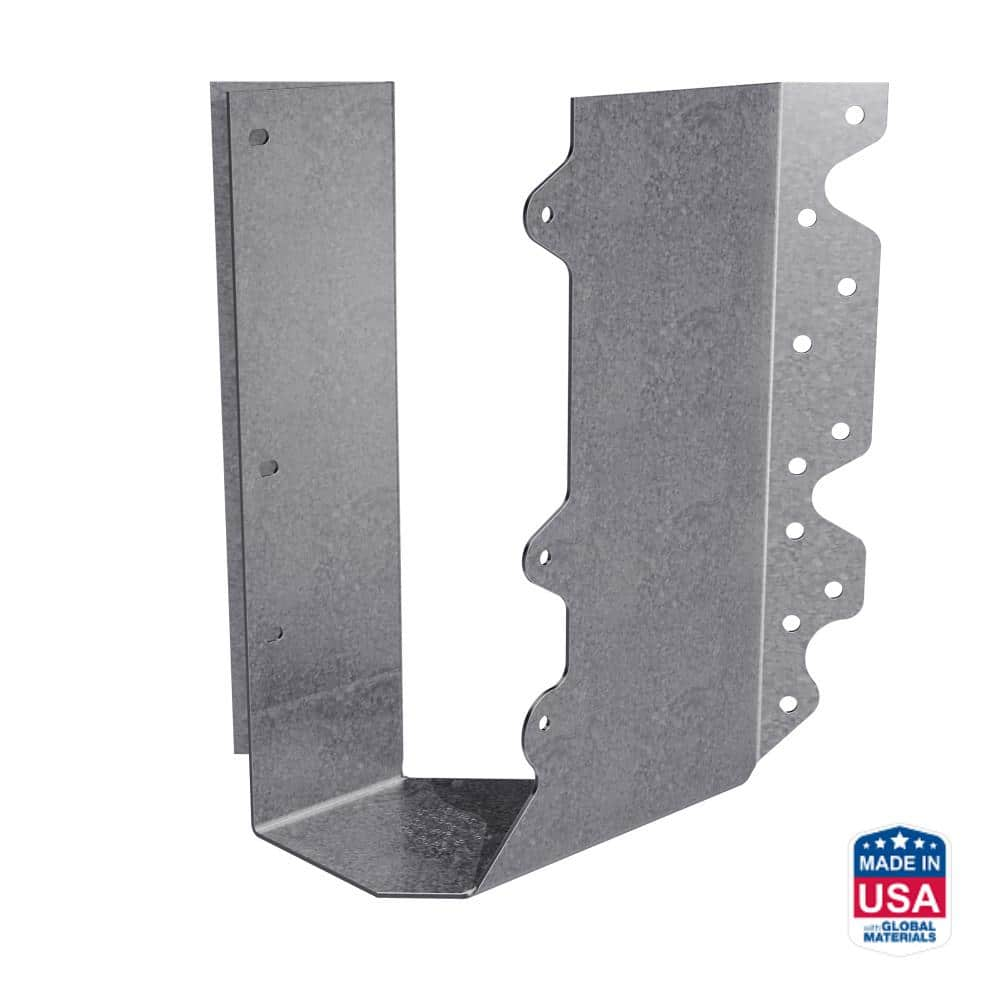

The Simpson HSUL210-2 is a heavy-duty, left-skewed joist hanger designed to provide high-load capacity for double 2x10 wood members at a 45-degree angle. This 14-gauge structural connector is engineered for superior strength and durability in skewed wood-to-wood applications, making it ideal for deck framing, roof systems, and floor joists. Its robust design ensures a code-compliant connection while simplifying the installation process for large joist members or double I-joists.
  • G90 Galvanized Steel
  • 45-Degree Left Skew
  • 14-Gauge Carbon Steel

Features

  • Features positive-angle nailing for engineered wood to prevent splitting and speed up installation.
  • Encapsulates the top flange of the joist, eliminating the need for web stiffeners in standard use.
  • Obround nail holes on the acute side allow for easier nail installation parallel to the joist.

Includes

  • (1) HSUL210-2 Double Joist Hanger
Products specifications
Model Number HSUL210-2
Material Carbon Steel
Finish G90 Galvanized
Gauge 14 Gauge
Joist Size Double 2x10
Skew Direction Left
Skew Angle 45 Degrees
Width 3-1/8 inch
Height 8-11/16 inch
Depth 2-7/16 inch
Face Fasteners (20) 0.162 inch x 3-1/2 inch Nails
Joist Fasteners (6) 0.162 inch x 2-1/2 inch Nails
*
*
*
