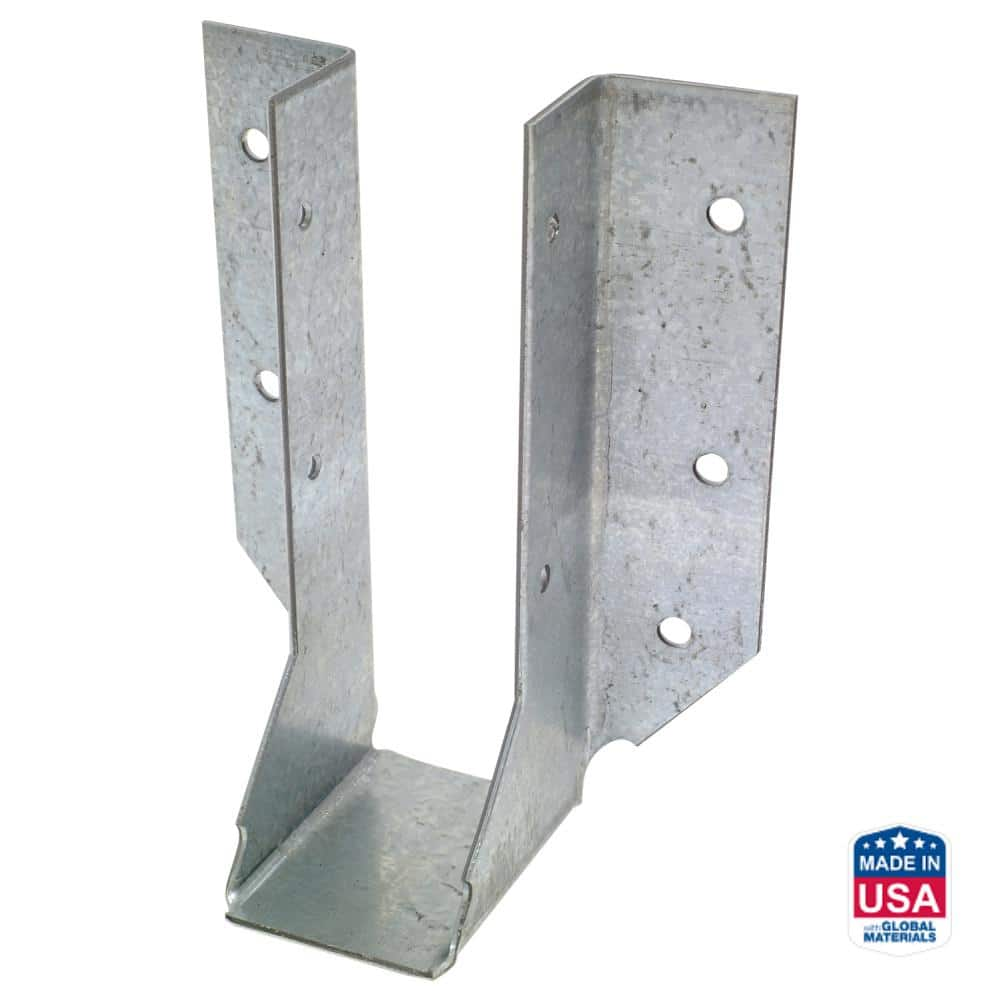

Simpson HU - 2" x 8" Heavy Face Mount Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091481
Mfr. #: HU28
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $13.56
i h h

Description

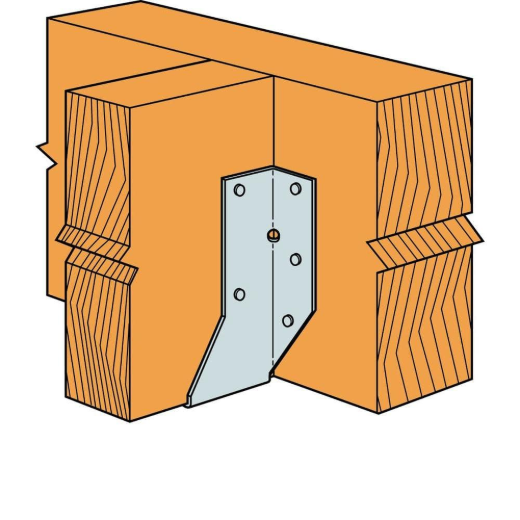

The Simpson Strong-Tie HU series are heavy-duty, face-mount joist hangers designed for applications requiring additional strength, safety factors, and durability. These hangers provide robust support for wood-to-wood and wood-to-masonry connections in floor, roof, deck, and bridge construction. The HU28 model is engineered to provide superior load-bearing capacity and prevent joist movement, sagging, or twisting, ensuring long-term structural integrity.
  • Heavy-duty design for high-strength requirements
  • Versatile installation for wood, masonry, and steel supports

Features

  • Tested and load-rated for code compliance in structural applications.
  • Supports skewable and sloped installations up to 45 via special order.
  • Can be installed by filling round holes only, or both round and triangle holes for maximum load values.
Products specifications
Connector Type Face-Mount Joist Hanger
Country of Origin USA (subject to change)
Finish / Coating Galvanized (G90)
Joist / Lumber Size 2 in x 8 in
Manufacturer's Warranty Limited Lifetime
Material Galvanized Steel
Mount Style Face-Mount
Series HU
Steel Gauge 14 ga
*
*
*
