  • Simpson HU212-2TF Double 2x12 Face Mount Hybrid Joist Hanger

Simpson HU212-2TF Double 2x12 Face Mount Hybrid Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091458
Mfr. #: HU212-2TF
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $74.28
i h h

Description

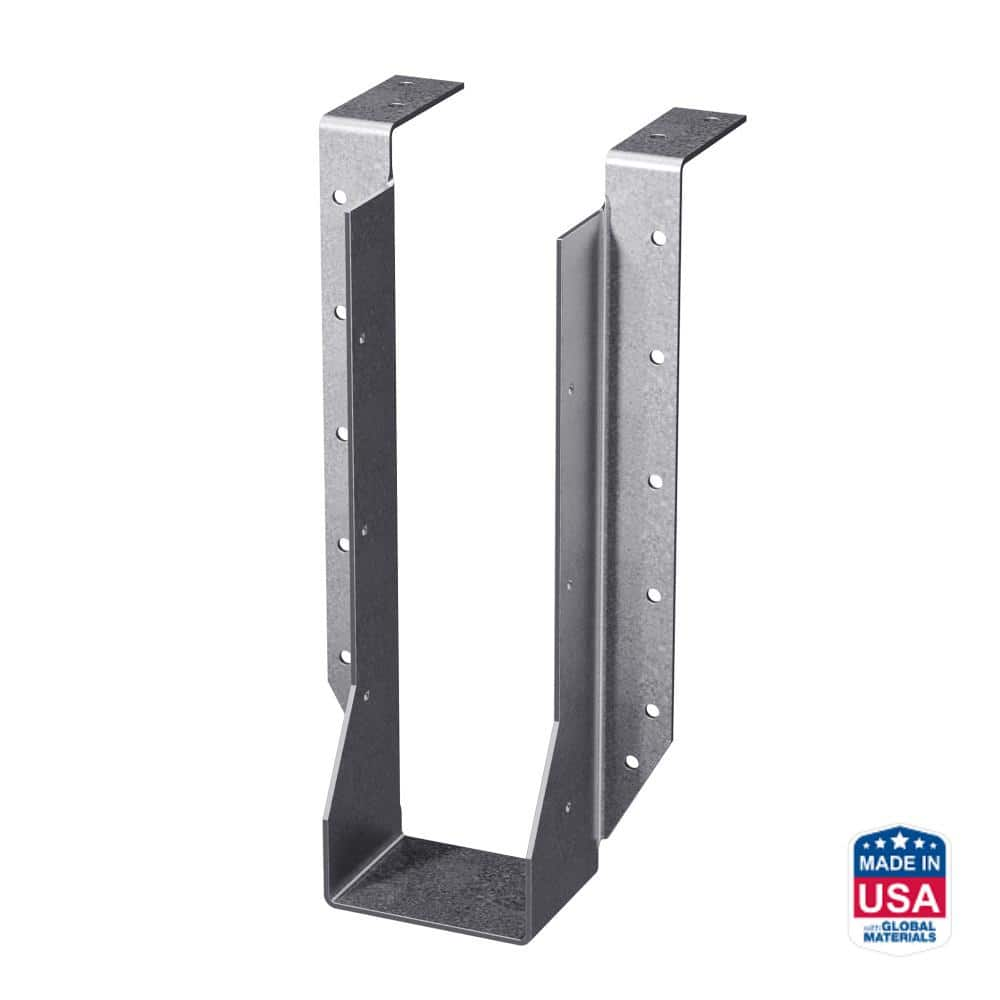

The Simpson Strong-Tie HU212-2TF is a heavy-duty hybrid hanger that integrates the advantages of both face-mount and top-mount hanger designs for superior structural support. Engineered specifically for double 2x12 lumber, this 12-gauge steel connector provides high load-carrying capacity for residential and commercial floor or roof framing. Its design allows for face-nailing to ensure a secure attachment, making it an ideal choice for decks and timber structures requiring extra safety factors.
  • Heavy-duty 12-gauge steel construction
  • G90 galvanized finish for corrosion resistance

Features

  • Hybrid design provides top-flange support with the flexibility of face-nailing.
  • Field-adjustable to accommodate skews and slopes up to 45 degrees.
  • Tested, load-rated, and code-listed for reliable structural performance.

Includes

  • HU212-2TF Top-Flange Joist Hanger
Products specifications
Brand Simpson Strong-Tie
Model Number HU212-2TF
Joist Size Double 2x12
Material 12-Gauge Steel
Finish G90 Galvanized
Width 3-1/8 inch
Mount Type Top Flange / Face Mount
Series HUTF Series
*
*
*
