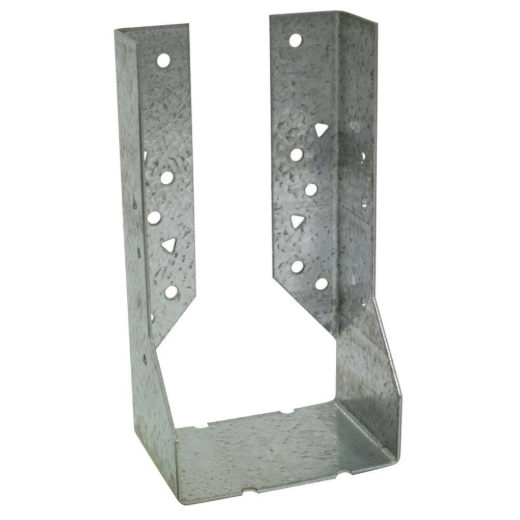

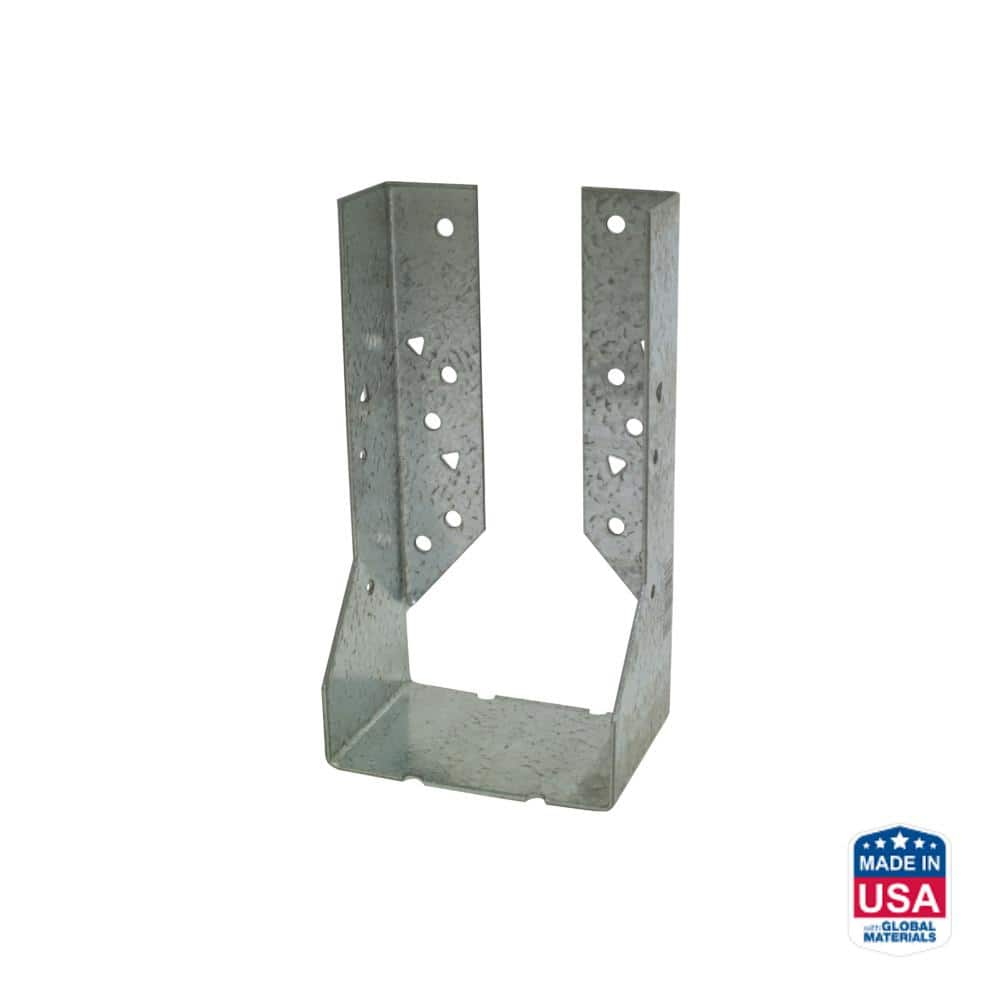

Simpson HUC - 4" x 8" Concealed Face Mount Joist Hanger ZMAX

Mfr.: Simpson Strong-Tie
Item #: I091654
Mfr. #: HUC48Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $28.64
i h h

Description

The Simpson Strong-Tie HUC48Z is a heavy-duty, face-mount joist hanger designed specifically for 4x8 lumber applications requiring enhanced strength and safety factors. Featuring a concealed flange design, it provides clean, visible lines in exposed framing conditions. The ZMAX galvanized finish offers superior corrosion resistance, making it an ideal solution for outdoor or demanding environments.

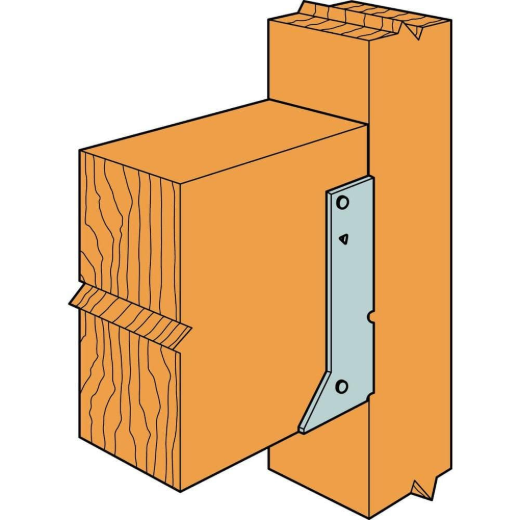

  • Concealed header flanges for a clean, aesthetic look
  • ZMAX galvanized finish for enhanced corrosion resistance

Features

  • Heavy-duty construction suitable for structures requiring higher strength and safety factors

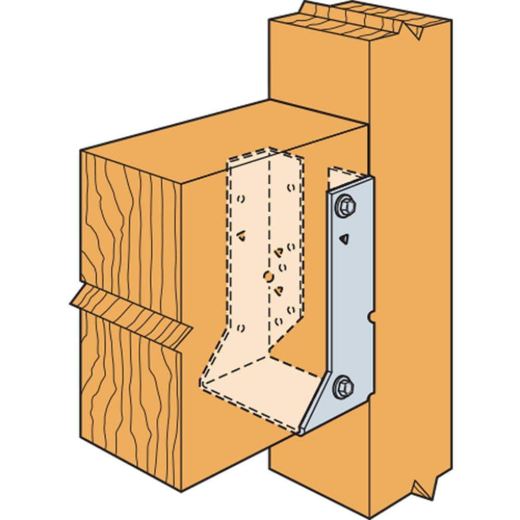

  • Versatile installation options by filling round holes only, or both round and triangle holes for maximum load capacity

Includes

  • (1) HUC48Z Concealed-Flange Joist Hanger
Products specifications
Connector Type Concealed-Flange Joist Hanger
Country of Origin USA (subject to change)
Finish / Coating ZMAX (G185)
Joist / Lumber Size 4 in x 8 in
Manufacturer's Warranty Limited Lifetime
Material Galvanized Steel
Mount Style Concealed-Flange
Series HUC
Steel Gauge 14 ga
*
*
*
