Simpson Hurricane Gusset Angle For Masonry

Mfr.: Simpson Strong-Tie
Item #: I093126
Mfr. #: HGAM10KTA
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $139.07
i h h

Description

The Simpson Strong-Tie HGAM10KTA is a hurricane gusset angle specifically engineered for securing gable end trusses and other framing members to masonry structures. Its innovative design features an engineered gusset that significantly enhances the strength for both lateral and uplift loads, providing superior stability in high-wind or seismic events. This kit offers an easy installation process when used with the included Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws and Titen Turbo masonry screws. It is ideal for wood-to-concrete or masonry connections, ensuring your construction is fortified against extreme weather conditions.
  • Engineered for high-wind and seismic loads
  • G90 Galvanized finish for corrosion resistance

Features

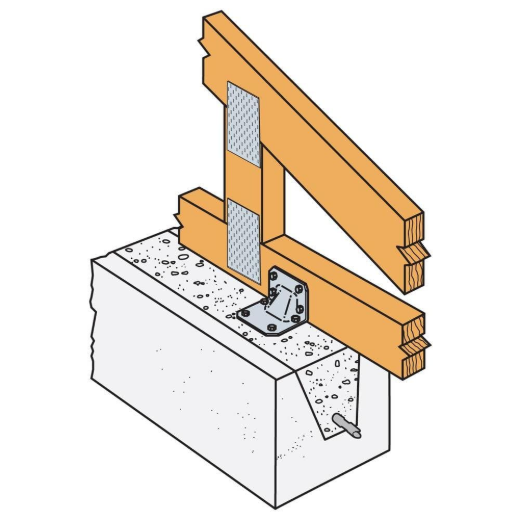

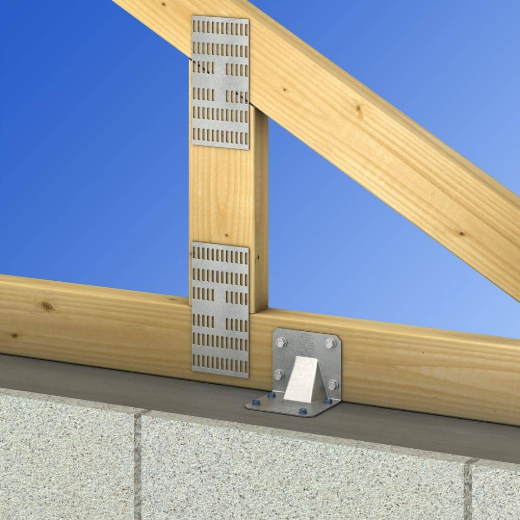

  • Secures the bottom chord of a gable end truss or other framing member to masonry.
  • Installs easily with 1-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws and Titen Turbo masonry screws.
  • Not designed for use with treated lumber.

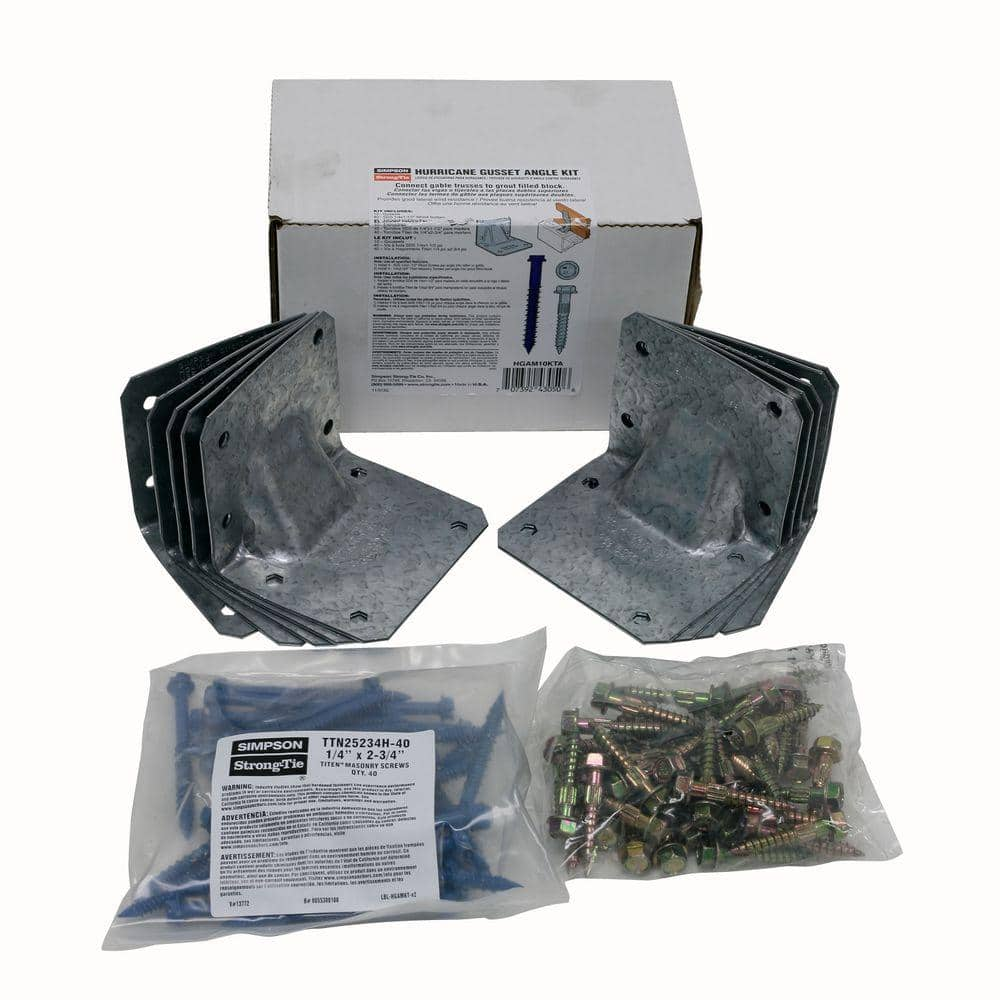

Includes

  • (10) HGAM10 connectors
  • (40) 1/4 in. x 1-1/2 in. Strong-Drive SDS screws
  • (40) 1/4 in. x 2-3/4 in. Titen Turbo screws

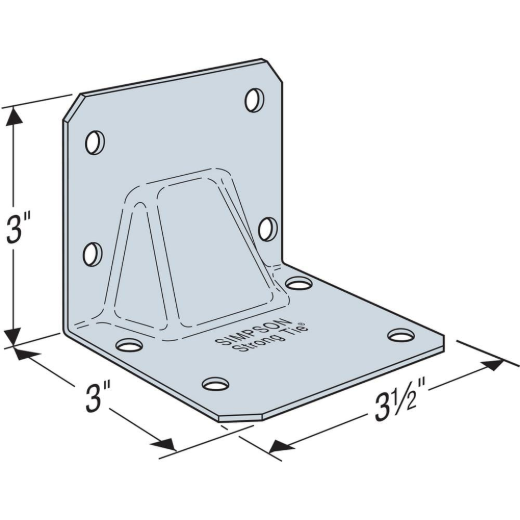

Products specifications
material 14 ga steel
finish G90 Galvanized
width 3-1/2 inch
height 3 inch
depth 3 inch
fasteners included Yes
quantity 10
*
*
*
