  • Simpson Hurricane Tie Zmax H7Z

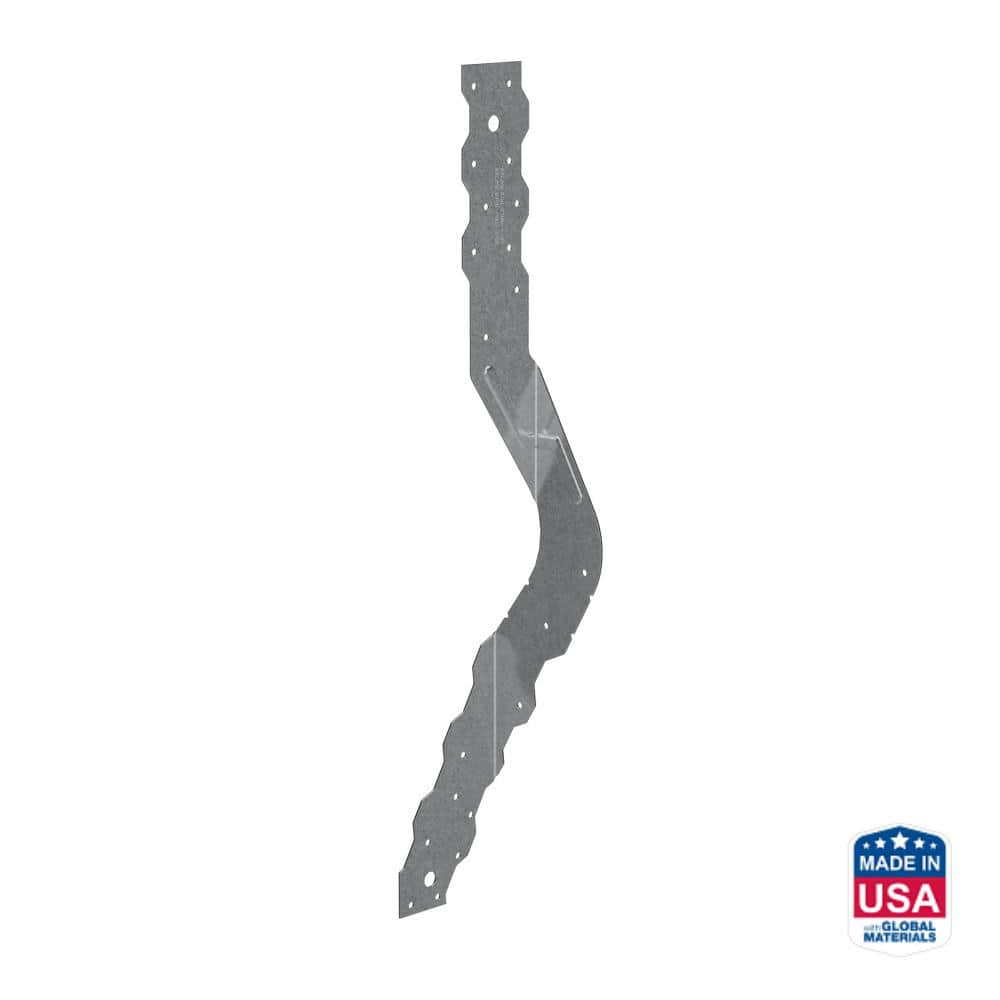

Simpson Hurricane Tie Zmax H7Z

Mfr.: Simpson Strong-Tie
Item #: I093043
Mfr. #: H7Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $14.36
i h h

Description

The Simpson Strong-Tie H7Z Hurricane Tie is engineered to provide a secure and robust connection between trusses/rafters and the wall structure, offering critical resistance against high winds and seismic forces. Its versatile design allows it to be folded over the rafter or truss for a reliable fit, making it suitable for various applications including connecting deck joists to perpendicular beams. Manufactured with 16-gauge steel and a ZMAX coating, this tie ensures strength and enhanced corrosion resistance, especially for exterior or treated-wood projects.
  • Resists high winds and seismic forces
  • ZMAX galvanization for corrosion resistance

Features

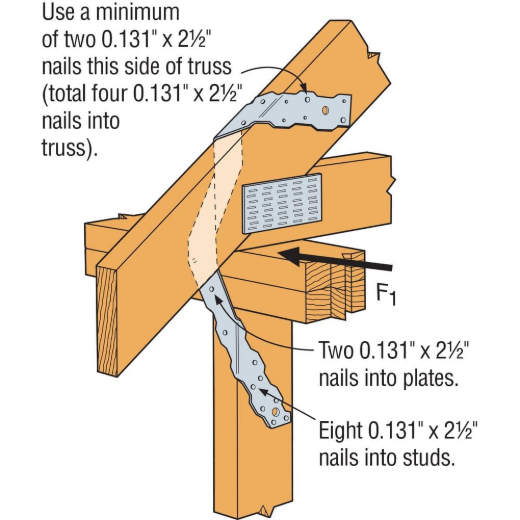

  • Connects trusses/rafters to the top of the wall.
  • Can be folded over the top of the rafter or truss.
  • Embossment in bend line strengthens the connection.
  • Suitable for wood and cold-formed steel (CFS) construction.

Includes

  • 1x Hurricane Tie
Products specifications
Gauge 16-gauge
Finish ZMAX
Material Steel

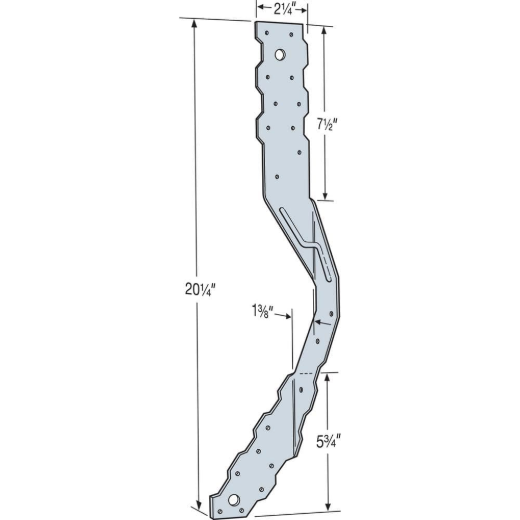

Dimensions 20-1/4 inch x 2-1/4 inch
Fastener type Hot-dip galvanized
*
*
*
