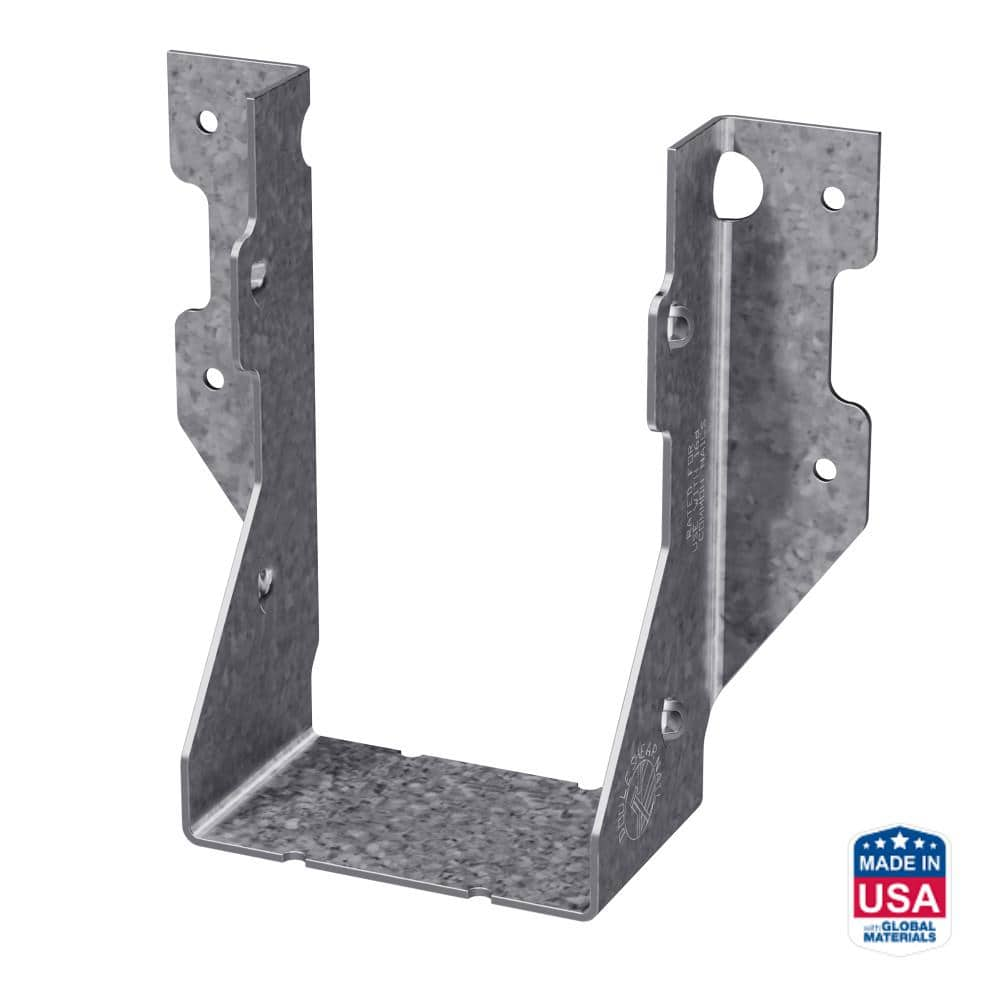

Simpson Hus Series Face Mount Hanger

Mfr.: Simpson Strong-Tie
Item #: I091715
Mfr. #: HUS26-2
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $13.75
i h h

Description

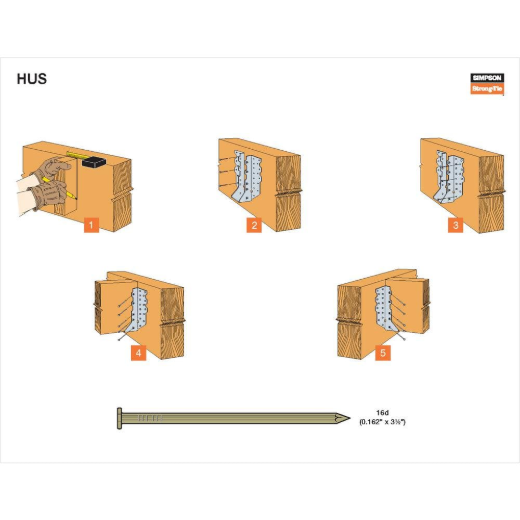

The Simpson HUS series hanger is a heavy-duty face-mount connector engineered for applications where higher load values are required. Featuring specialized double-shear nailing, this hanger distributes the load through two points on each joist nail, significantly increasing overall strength. This efficient design allows for the use of fewer nails, faster installation, and utilizes standard common nails for all connections.
  • Double-shear nailing for increased load capacity
  • Heavy-duty 14-gauge steel construction
  • G90 galvanized coating for corrosion resistance

Features

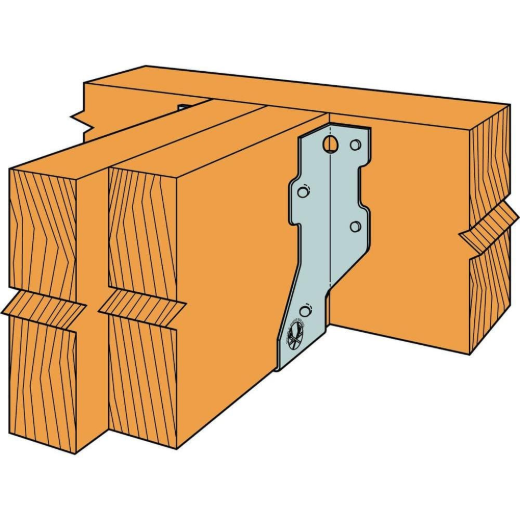

  • Provides support underneath the joist, rafter, or beam
  • Compatible with solid sawn lumber

Includes

  • One (1) Face Mount Hanger
Products specifications
Material Carbon Steel
Finish G90 Galvanized
Thickness 14 Gauge
Joist Size Double 2x6
Width 3-1/8 in
*
*
*
