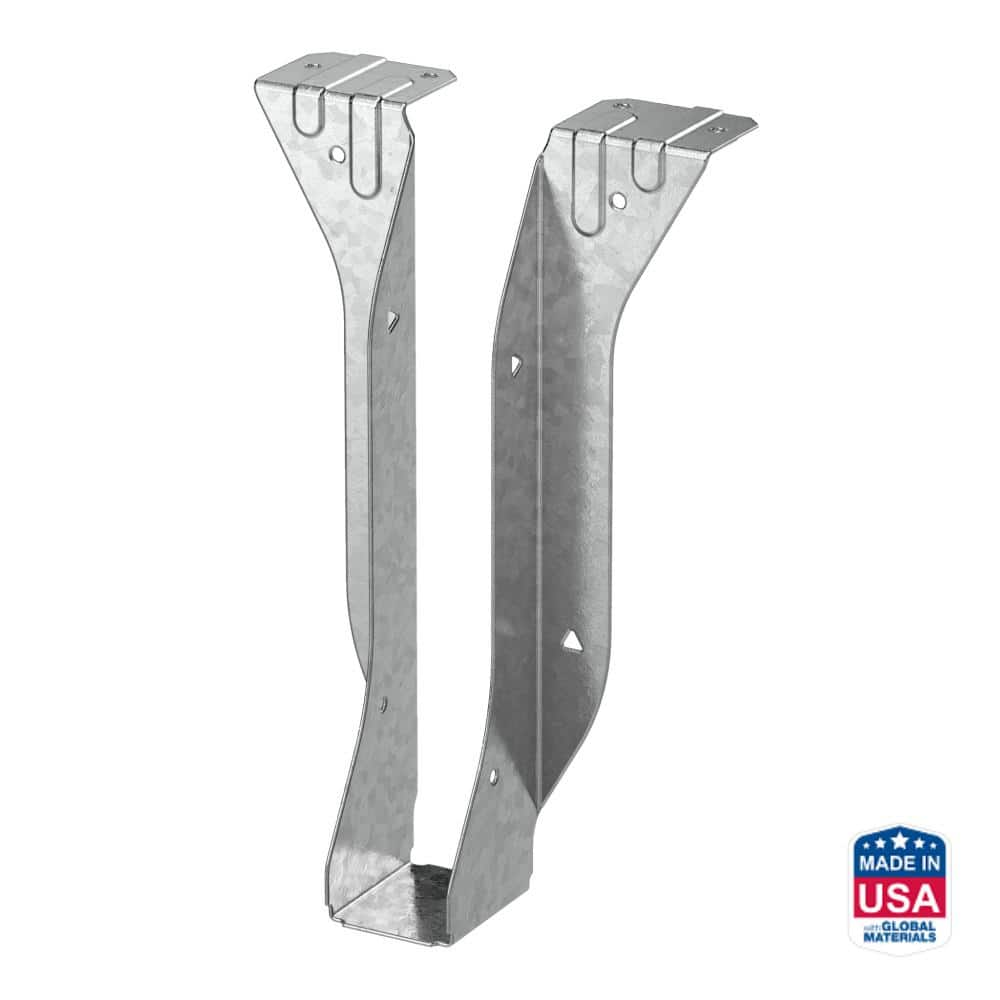

Simpson JBA Junior Bent Top Flange Hanger

Mfr.: Simpson Strong-Tie
Item #: I091772
Mfr. #: JB210A
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $10.63
i h h

Description

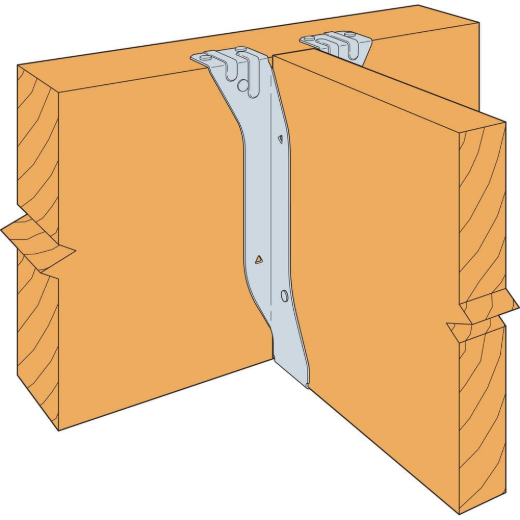

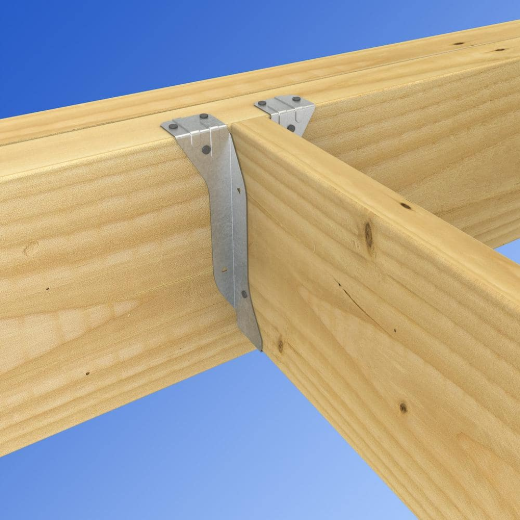

The Simpson JBA Junior Bent Hanger is a top-flange connector engineered for supporting 2x10 joists in applications where space is limited but high strength is required. Its compact, bent design allows for easy installation in tight framing conditions, while the top-flange profile provides a stable, secure load-bearing connection. Manufactured from 18-gauge steel with a G90 galvanized finish, these hangers offer reliable corrosion resistance for indoor and protected outdoor structural framing projects.
  • Top-flange design for stable load support
  • Compact, bent profile for restricted spaces

Features

  • 18-gauge galvanized (G90) steel construction
  • Unique two-level embossment for added stiffness
  • Engineered for increased uplift load capacity
  • Optional triangular nail holes for maximum fastening
Products specifications
Material 18 Gauge Steel
Finish G90 Galvanized
Joist Size 2 x 10
Height 9-3/16 inch
Width 1-9/16 inch
Type Top Flange
Series JBA Junior Bent Hanger
*
*
*
