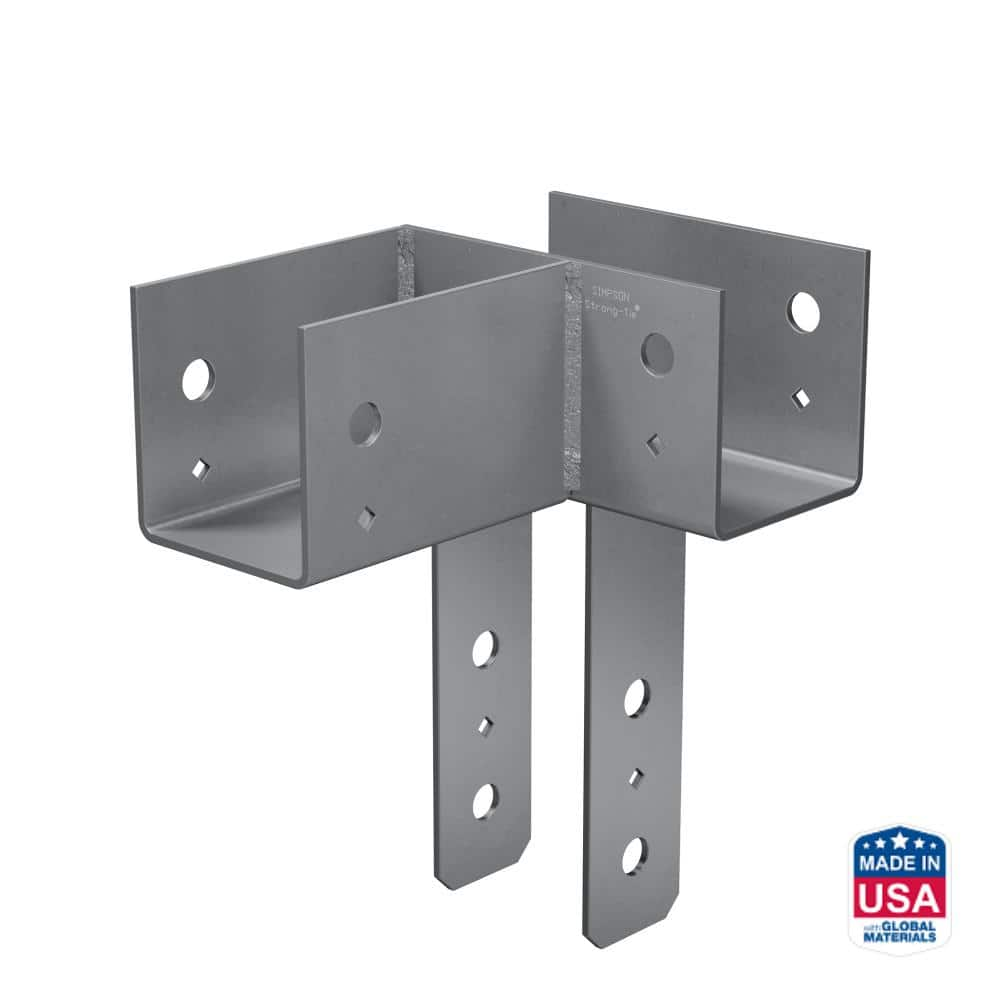

Simpson L-Shape End Column Cap ECCLL444

Mfr.: Simpson Strong-Tie
Item #: I092758
Mfr. #: ECCLL444
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $393.06
i h h

Description

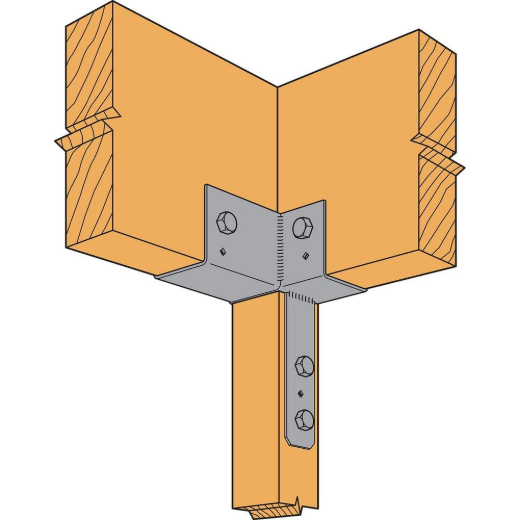

The Simpson ECCLL444 is an L-shaped end column cap specifically designed for 4x beams and 4x posts, providing robust connections in end-of-beam applications where two beams intersect at an 'L' formation on top of a column. This cap ensures strong, stable connections by effectively distributing loads from the beams and offering reliable support. It is engineered for performance and durability, making it a crucial component for enhancing structural integrity in various construction projects.
  • L-Shape End Column Cap
  • For 4x Beams and 4x Posts
  • Skewed Left Design

Features

  • Promotes even load distribution from beams.
  • Strong column-to-beam connections in end-of-beam applications.
  • Extended column seat offers additional bearing surface.
  • Certified welds for strength and loading.
  • Bolt spacing meets NDS code requirements.
  • Diamond holes for temporary fastening during installation.

Includes

  • 1x ECCLL444 End Column Cap
Products specifications
Beam size 4x
Post size 4x
Material Steel
Finish Gray Paint
Thickness 7 Gauge
Weight 11.2 lb
Made to Order Yes
*
*
*
