Simpson Lateral Tie Plate LTP4Z

Mfr.: Simpson Strong-Tie
Item #: I093240
Mfr. #: LTP4Z
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $1.57
i h h

Description

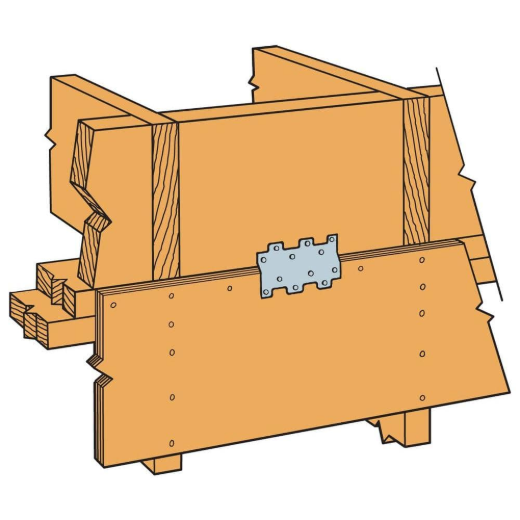

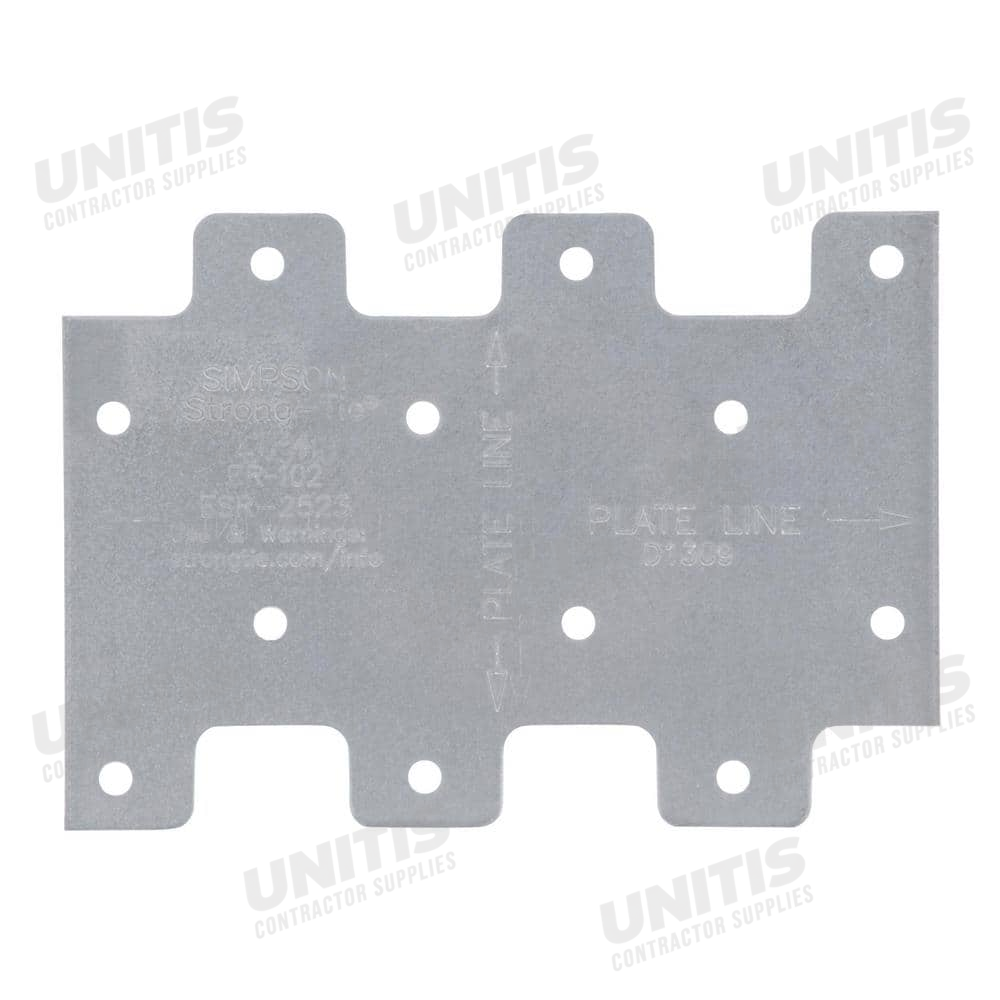

The Simpson Strong-Tie LTP4Z Lateral Tie Plate is engineered to provide strong reinforcement for wood-to-wood connections, transferring shear forces effectively for top plate-to-rim board or blocking applications. Its ZMAX galvanized finish offers enhanced corrosion resistance, making it suitable for exterior use and treated lumber. Designed for ease of installation, it features strategically spaced nail holes to prevent wood splitting and can be installed over plywood sheathing or directly to framing members. This plate is ideal for improving wind and seismic resistance in structural framing, ensuring a more stable and durable connection.
  • ZMAX Galvanization
  • 20-Gauge Steel Construction

Features

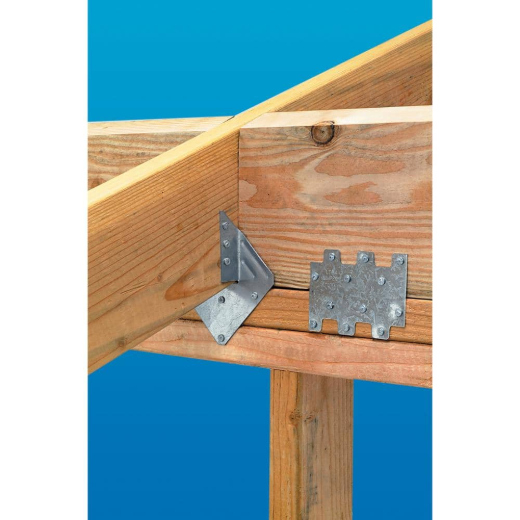

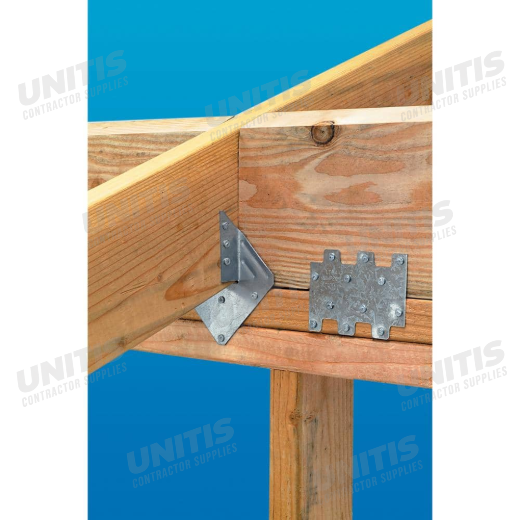

  • Transfers shear forces for top plate-to-rim board or blocking connections.
  • Staggered nail patterns to minimize wood splitting for single and double top-plate applications.
  • Can be installed over plywood sheathing or directly to framing members.
  • Offers extra corrosion resistance for exterior and treated-wood applications.
  • Load-rated for shear resistance.

Includes

  • 1 x LTP4Z Lateral Tie Plate
Products specifications
Brand Name Simpson Strong-Tie
Manufacturer Number LTP4Z

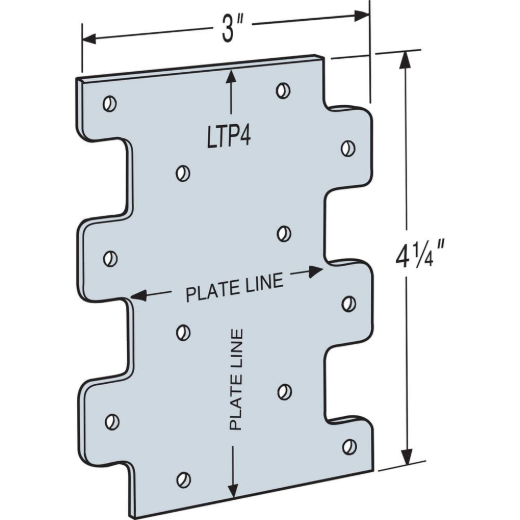

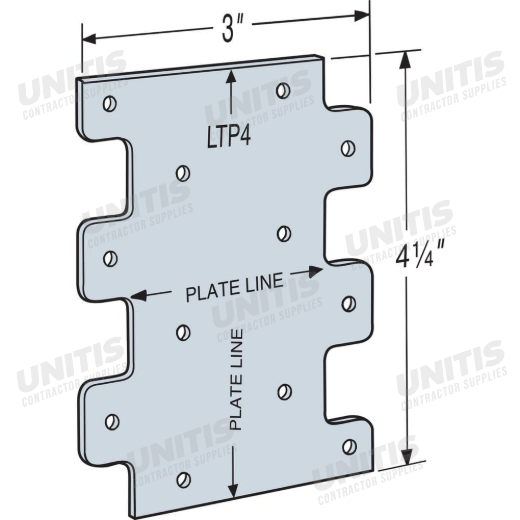

Width 3 inch
Height 4-1/4 inch
Material Steel
Material Thickness 20 ga.
Finish ZMAX
Type Lateral tie plate
Fastener Type Screw/Nails

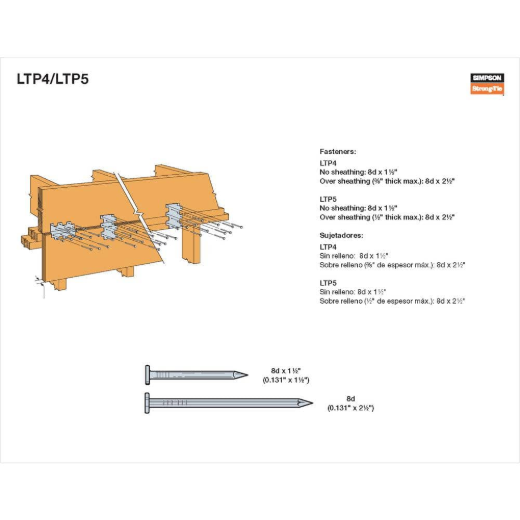

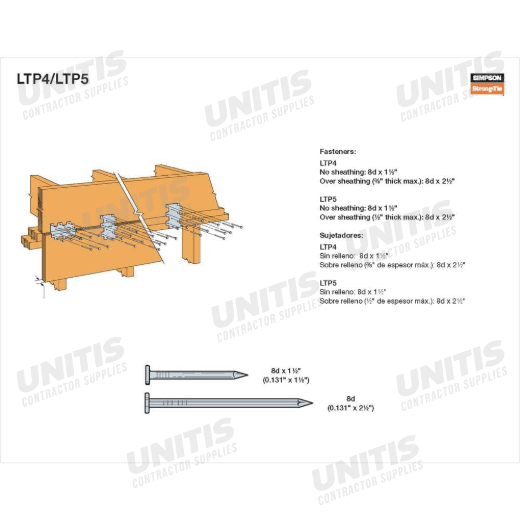

Install With 8d x 1-1/2 inch nails or #9 x 1-1/2 inch SD screw
*
*
*
