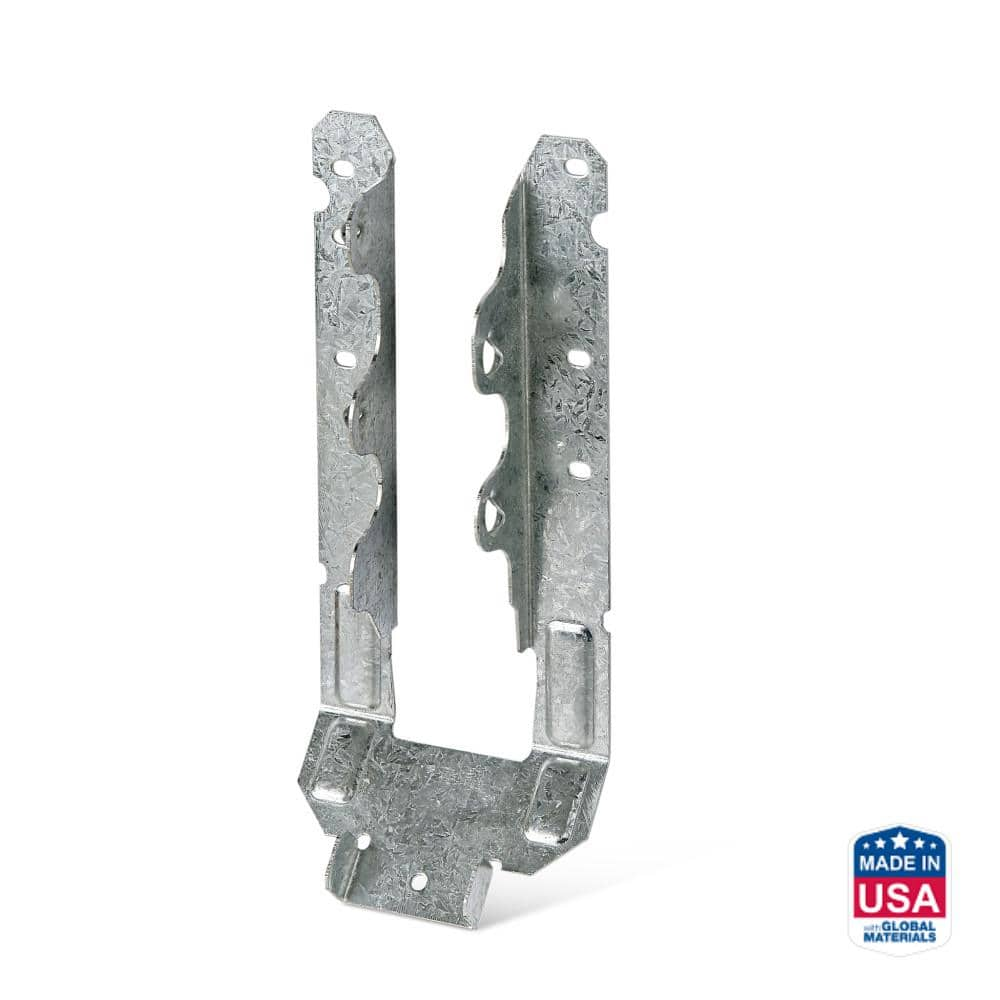

Simpson Light Rafter U Hanger - Slopeable 2X8

Mfr.: Simpson Strong-Tie
Item #: I091785
Mfr. #: LRU28Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $12.93
i h h

Description

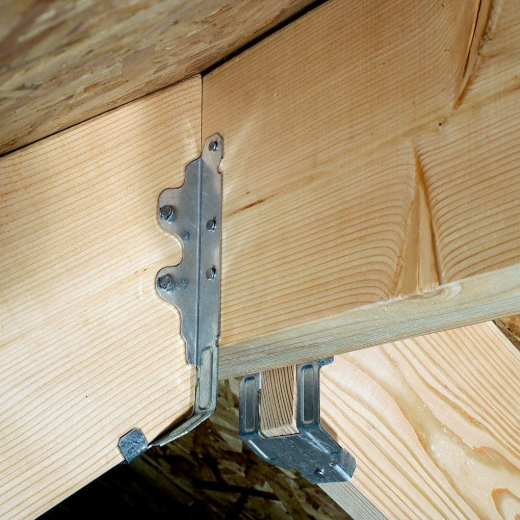

The Simpson LRUZ series, including the LRU28Z, offers an economic and versatile solution for rafter-to-ridge connections requiring a sloped hanger. Its unique design features a field-adjustable seat that helps improve job efficiency by eliminating the need for special orders or mismatched angles in the field. This hanger can be installed either before or after the rafter is in place, making it ideal for both new construction and retrofit projects.

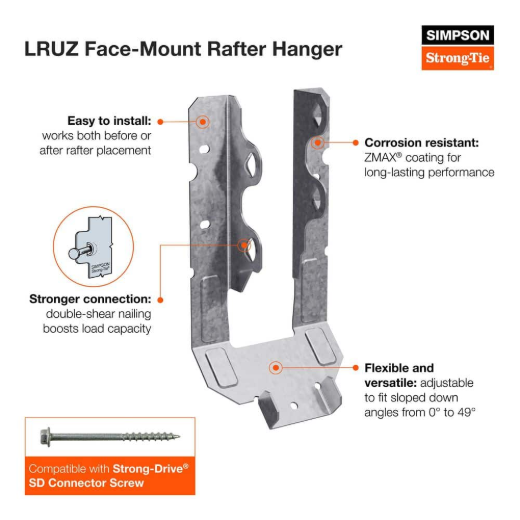

  • Field-adjustable seat for slopes up or down to 45 degrees
  • ZMAX galvanization for superior corrosion resistance

Features

  • Accommodates roof pitches from 0:12 to 14:12

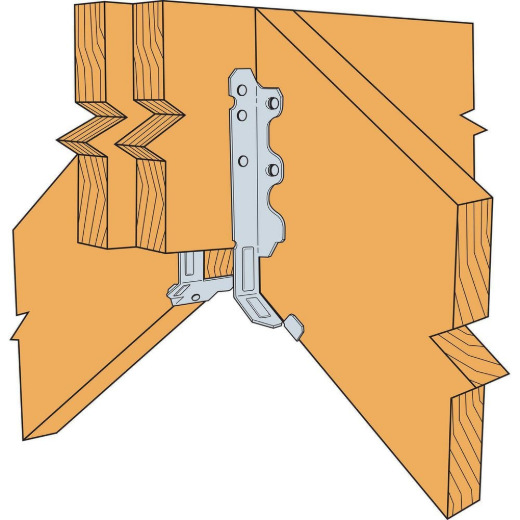

  • High-placed face fasteners allow the rafter bottom to hang below the ridge beam
  • Constructed from durable 18-gauge steel
Products specifications
Model LRU28Z
Series LRUZ
Material Steel
Finish ZMAX
Gauge 18
Installation Type Face Mount
Slope Capacity Up/down to 45 degrees
*
*
*
