Simpson Light Tension Tie Purlin LTTP2

Mfr.: Simpson Strong-Tie
Item #: I093243
Mfr. #: LTTP2
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $29.37
i h h

Description

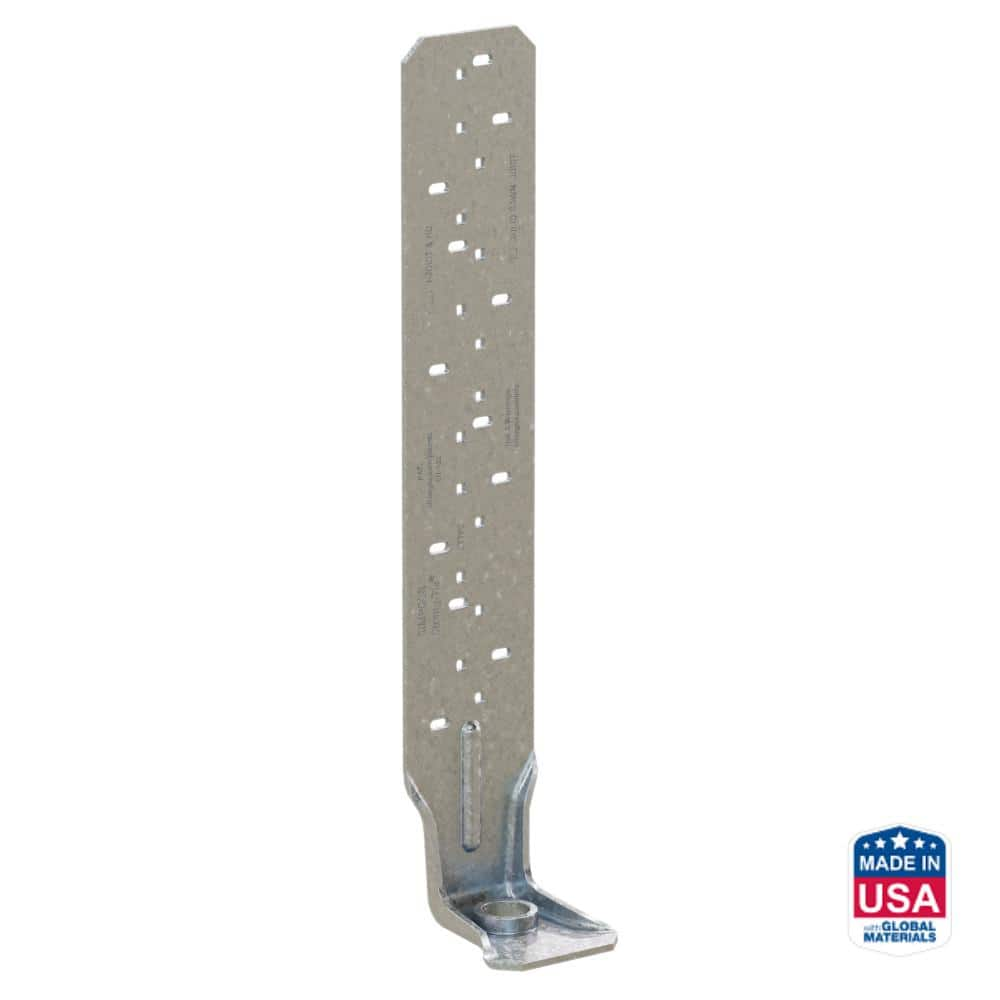

The Simpson Strong-Tie LTTP2 is a next-generation light tension tie engineered to effectively resist tension loads when attaching wood to concrete or masonry walls. Its patent-pending, one-piece design offers increased allowable loads compared to previous models, providing greater design flexibility. Fabricated from galvanized steel, the LTTP2 is suitable for both horizontal purlin and vertical holdown applications, ensuring robust structural connections.
  • Resists tension loads

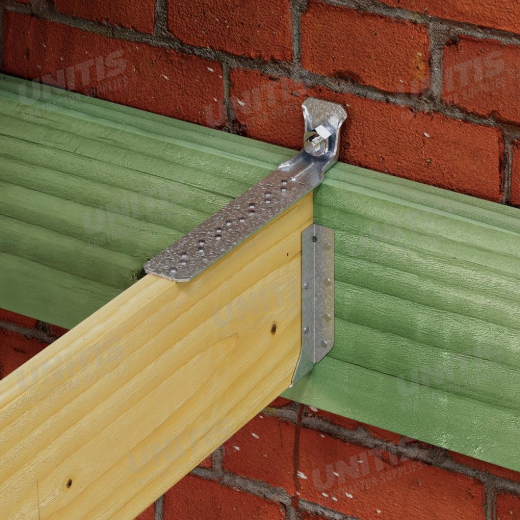

  • Attaches wood to concrete or masonry

Features

  • One-piece design with 25% higher allowable loads than predecessors
  • Extruded anchor bolt hole accommodates 1/2 inch, 5/8 inch, and 3/4 inch bolt diameters

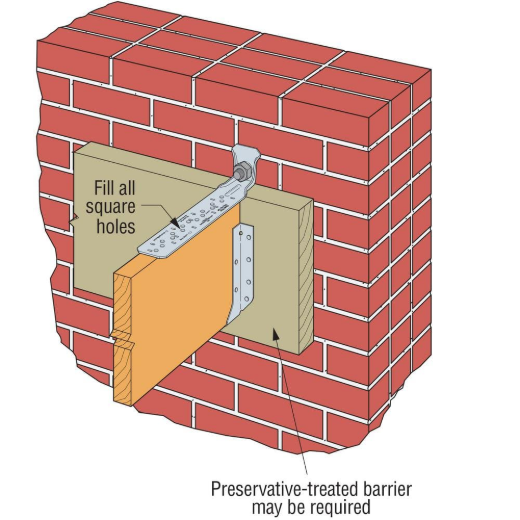

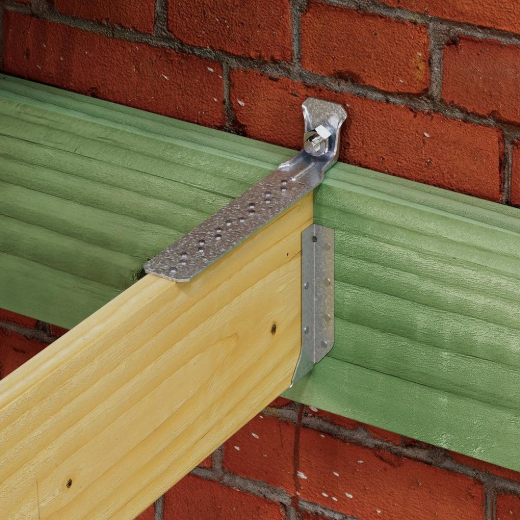

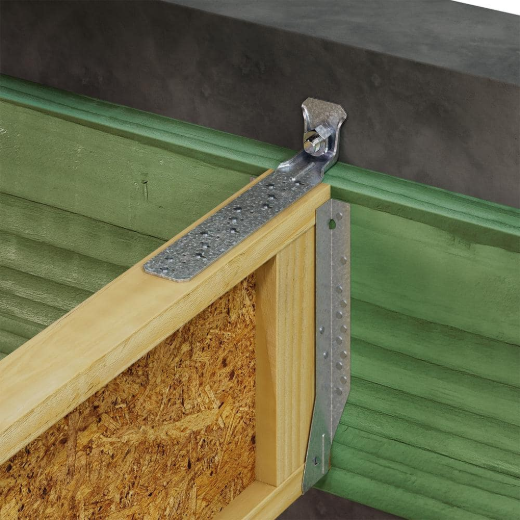

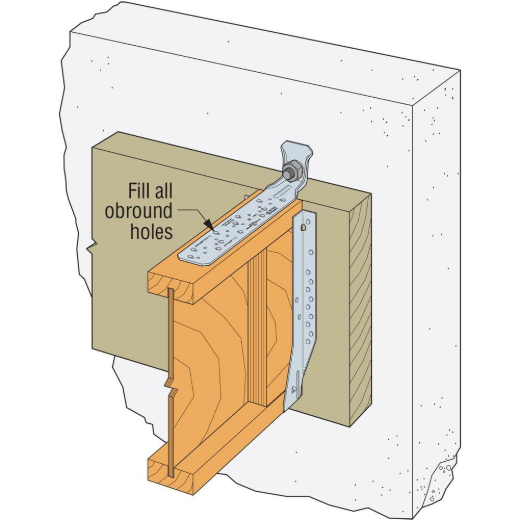

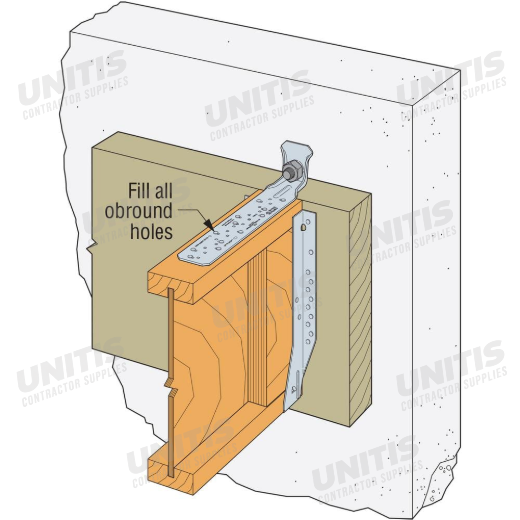

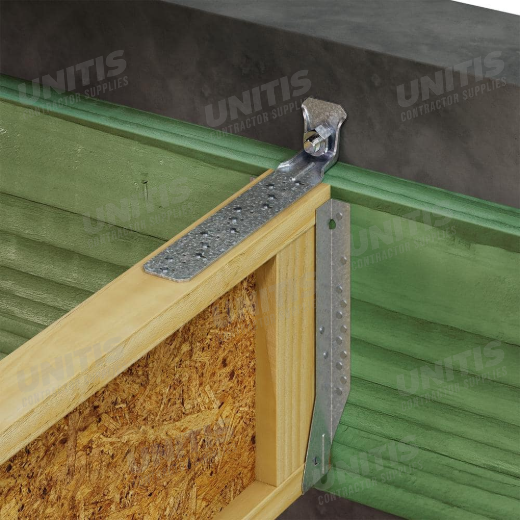

  • Two nailing patterns: obround holes for I-joist purlins and square holes for 2x solid-sawn purlins

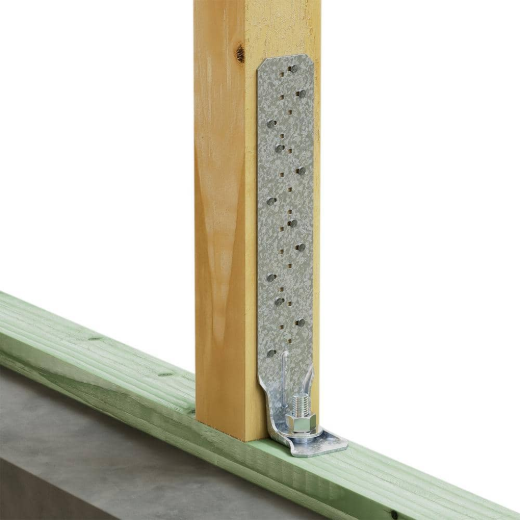

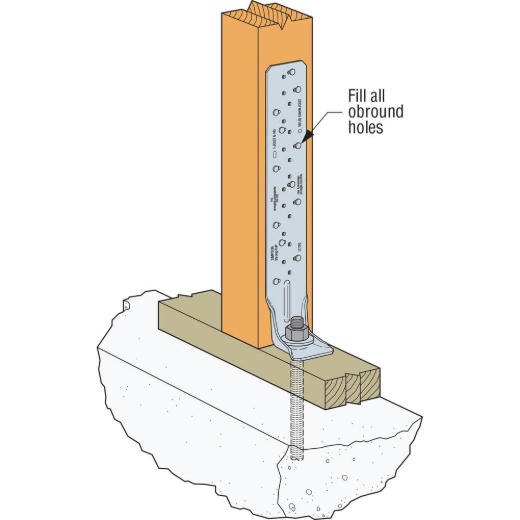

  • Can be installed vertically on a minimum 2x4 stud for holdown applications
  • Low-profile seat to reduce visibility

Includes

  • 1 Light Tension Tie
Products specifications
material 10-gauge galvanized steel
finish G90 Galvanized
length 14-15/16 inch
bolt_diameter 1/2 inch, 5/8 inch, 3/4 inch
weight 1.7 lb
*
*
*
