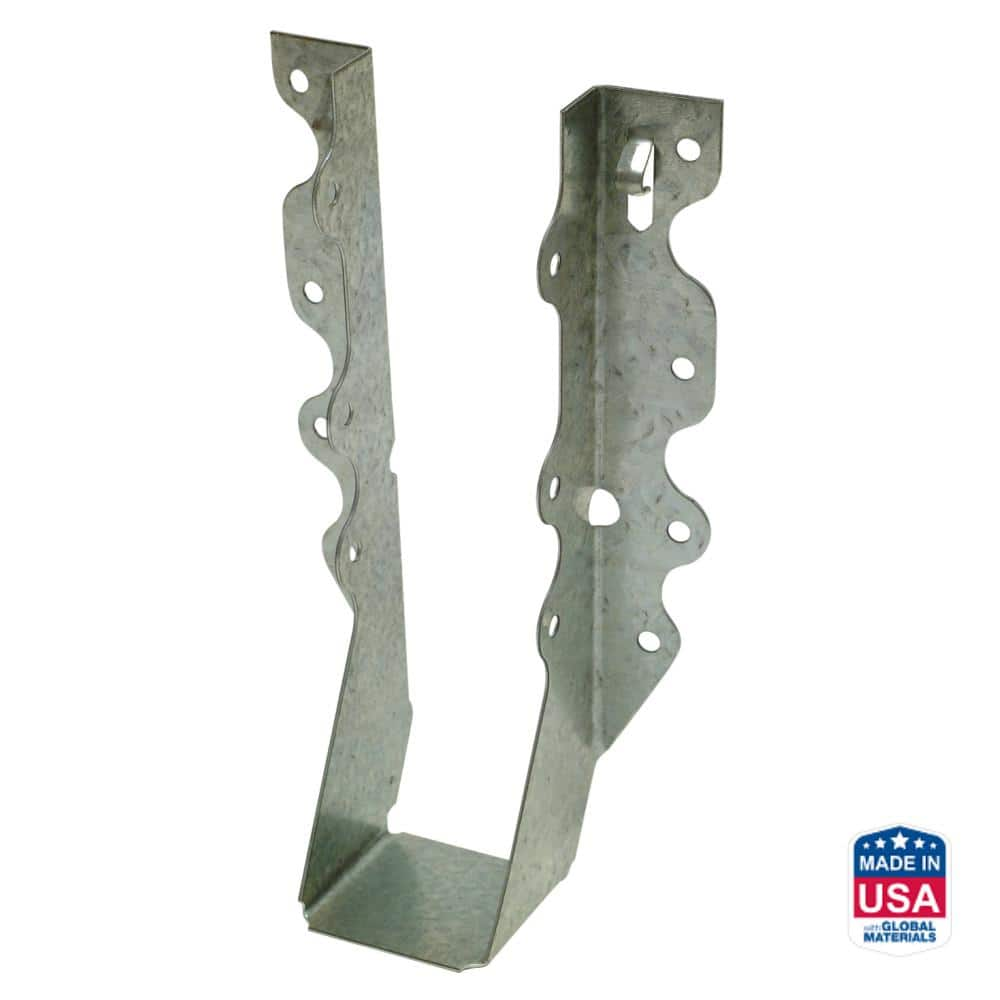

Simpson LU - 2" x 8" Face Mount Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091797
Mfr. #: LU28R-18
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $8.63
i h h

Description

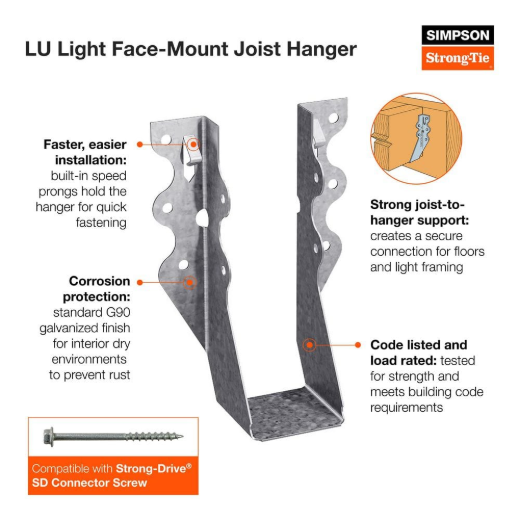

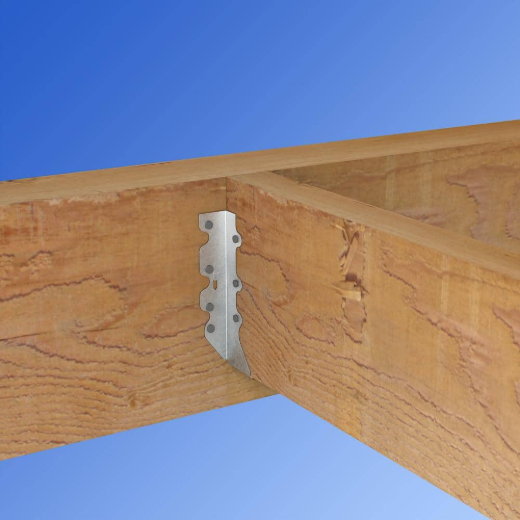

The Simpson LU-R series joist hanger is designed for joist-to-header installation in wood-framed construction, specifically optimized to accommodate rough-cut lumber dimensions. This face-mount hanger features speed prongs that allow for temporary positioning and securement, facilitating easier and faster installation. As part of the value-engineered LU-series, this hanger provides a strong, reliable connection and is fully tested, load-rated, and code-compliant.
  • Optimized for rough-cut lumber
  • Speed prongs for faster installation

Features

  • Value-engineered for strength and cost-effectiveness
  • Tested, load-rated and code-compliant design

Includes

  • 1 x LU28R-18 Rough Cut Face-Mount Joist Hanger
Products specifications
Connector Type Face-Mount Joist Hanger
Country of Origin USA (subject to change)
Finish / Coating Galvanized (G90)
Joist / Lumber Size 2 in x 8 in
Manufacturer's Warranty Limited Lifetime
Material Galvanized Steel
Mount Style Face-Mount
Series LU
Steel Gauge 18 ga
*
*
*
