Simpson ML28Z 2 in x 8 in Medium L Angle Connector

Mfr.: Simpson Strong-Tie
Item #: I093273
Mfr. #: ML28Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $6.80
i h h

Description

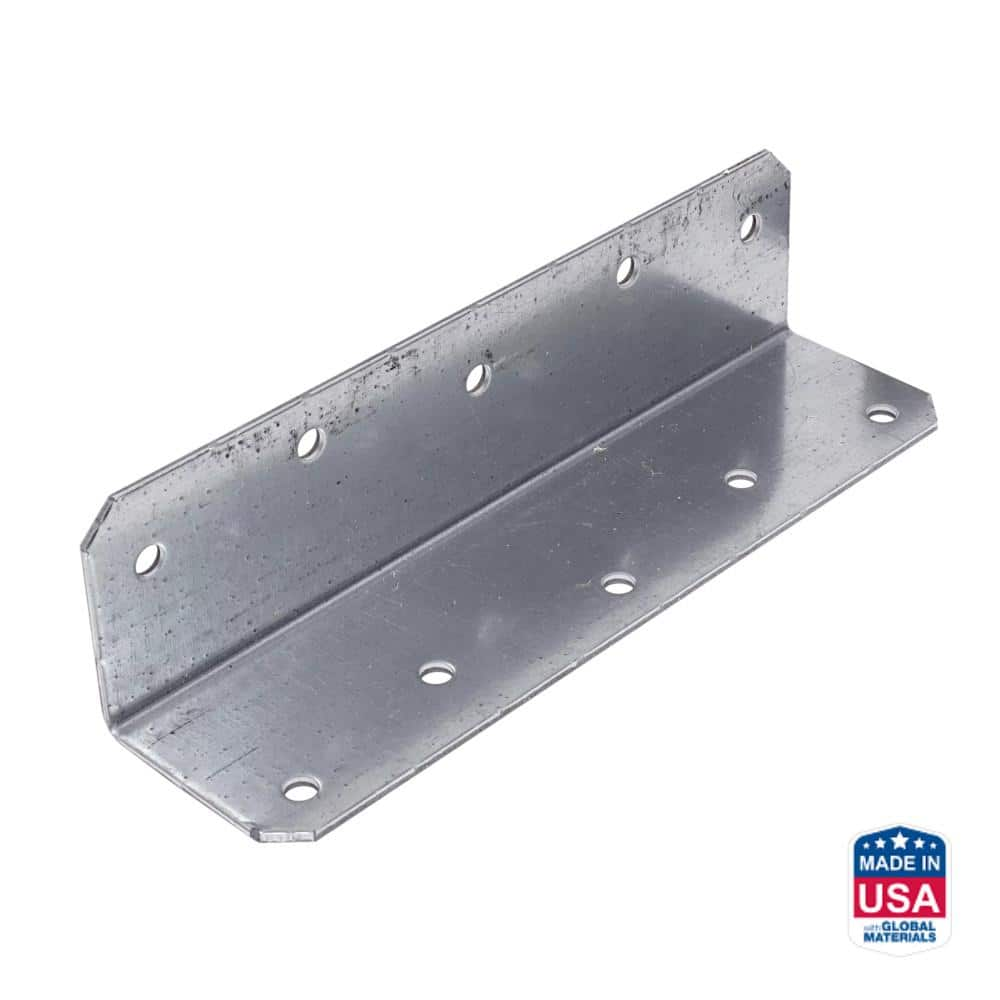

The Simpson Strong-Tie ML28Z is a versatile 2 inch x 8 inch medium L-angle designed to provide strong and reliable 90-degree connections for various wood framing applications. Its ZMAX galvanized finish offers enhanced corrosion resistance, making it suitable for exterior use and treated lumber. Engineered for strength and ease of installation, the ML28Z helps ensure consistently straight and robust joints, resisting lateral forces and adding crucial structural rigidity where needed. It is designed to be used with Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws, with staggered fastener holes to minimize wood splitting.
  • ZMAX Galvanized Finish
  • 12-Gauge Steel

Features

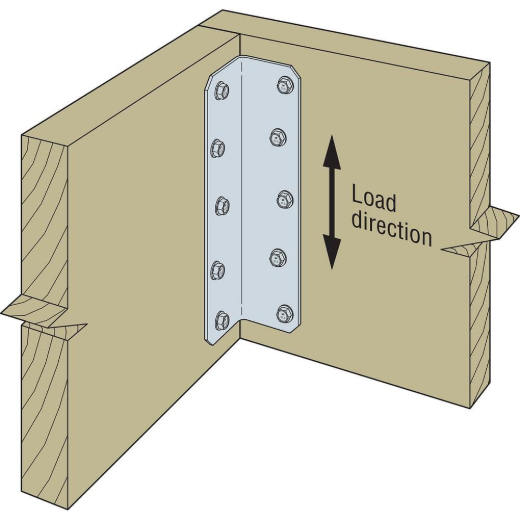

  • Provides a 90 connection for medium/heavy duty applications.
  • Stronger than angled nailing or screw fastening.
  • Helps ensure joints are consistently straight and strong.
  • Staggered fastener holes to minimize wood splitting.
  • Opposing hole patterns allow for back-to-back installation without fastener interference.
  • Compatible with hot-dip galvanized fasteners meeting ASTM A153 specifications.

Includes

  • 1 x 2 inch x 8 inch Medium L Angle
Products specifications

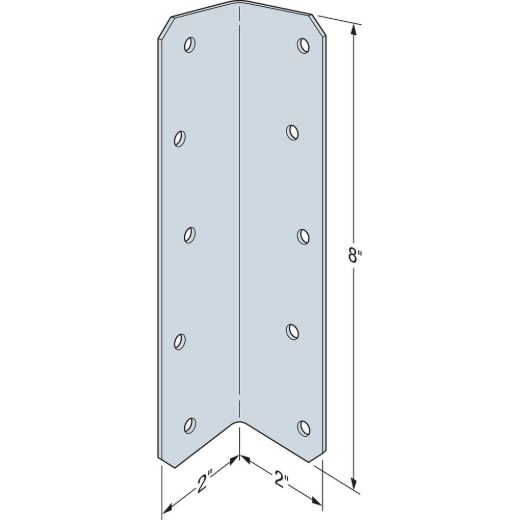

Height 8 inch
Width 2 inch
Gauge 12
Material Carbon Steel
Finish ZMAX
Fasteners required (10) 1/4 inch x 1-1/2 inch SDS Screws
For Treated Lumber Yes
Manufacturer Name Simpson Strong-Tie
*
*
*
