  • Simpson MPBZ ZMAX Galvanized Moment Post Base for 6x6 w/ SDS Screws

Simpson MPBZ ZMAX Galvanized Moment Post Base for 6x6 w/ SDS Screws

Mfr.: Simpson Strong-Tie
Item #: I050874
Mfr. #: MPB66Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $355.23
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

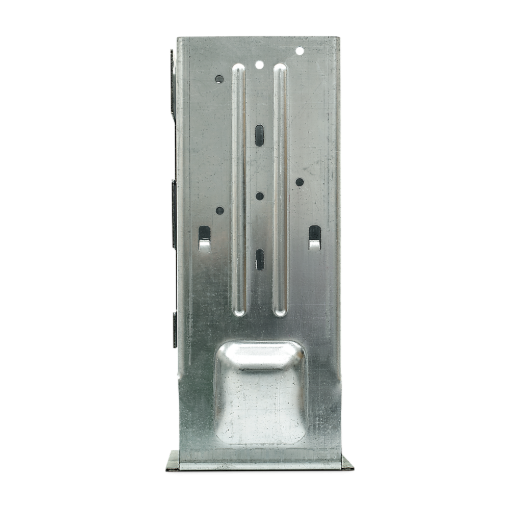

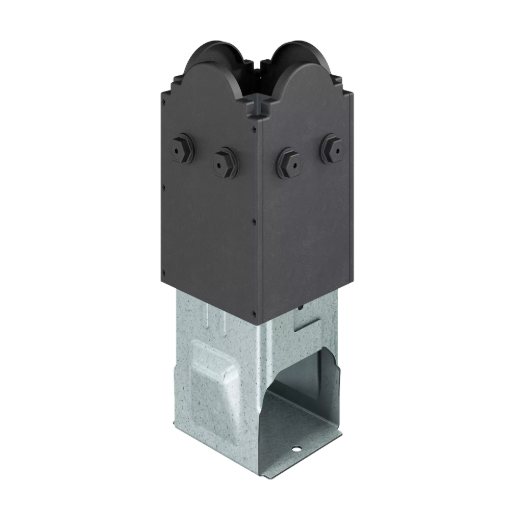

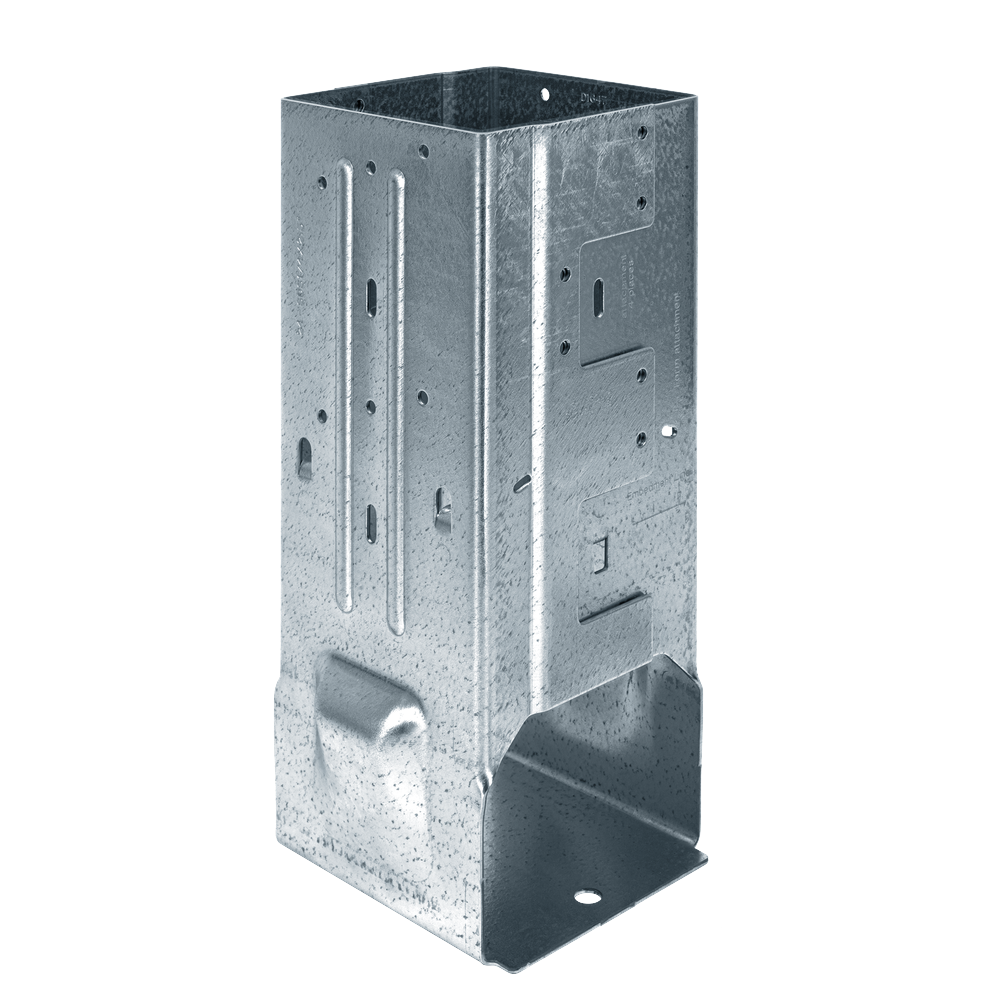

The MPB66Z is a moment post base designed for 6x6 posts, providing resistance to rotation at the base. It features an overlapping sleeve design and built-in 1-inch standoff tabs to help resist decay.
  • 12-gauge steel with ZMAX coating
  • Built-in 1-inch standoff tabs
  • Weep hole for water drainage
  • Supplied with Strong-Drive SDS Heavy-Duty Connector screws

Features

  • Internal top-of-concrete tabs
  • 1-inch standoff tabs
  • Additional holes for trim material
  • Weep hole for water drainage

Includes

  • 1/4 in. x 2-1/2 in. Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws

Specifications


Model No.MPB66ZGauge12
W1 (in.)5 9/16W2 (in.)5 9/16
H (in.)7 1/4D (in.)7 1/4
CoatingMaterialZMAXPackaging Qty.1
*
*
*
