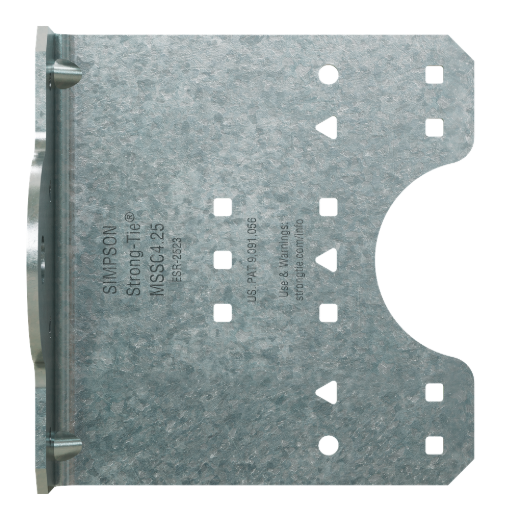

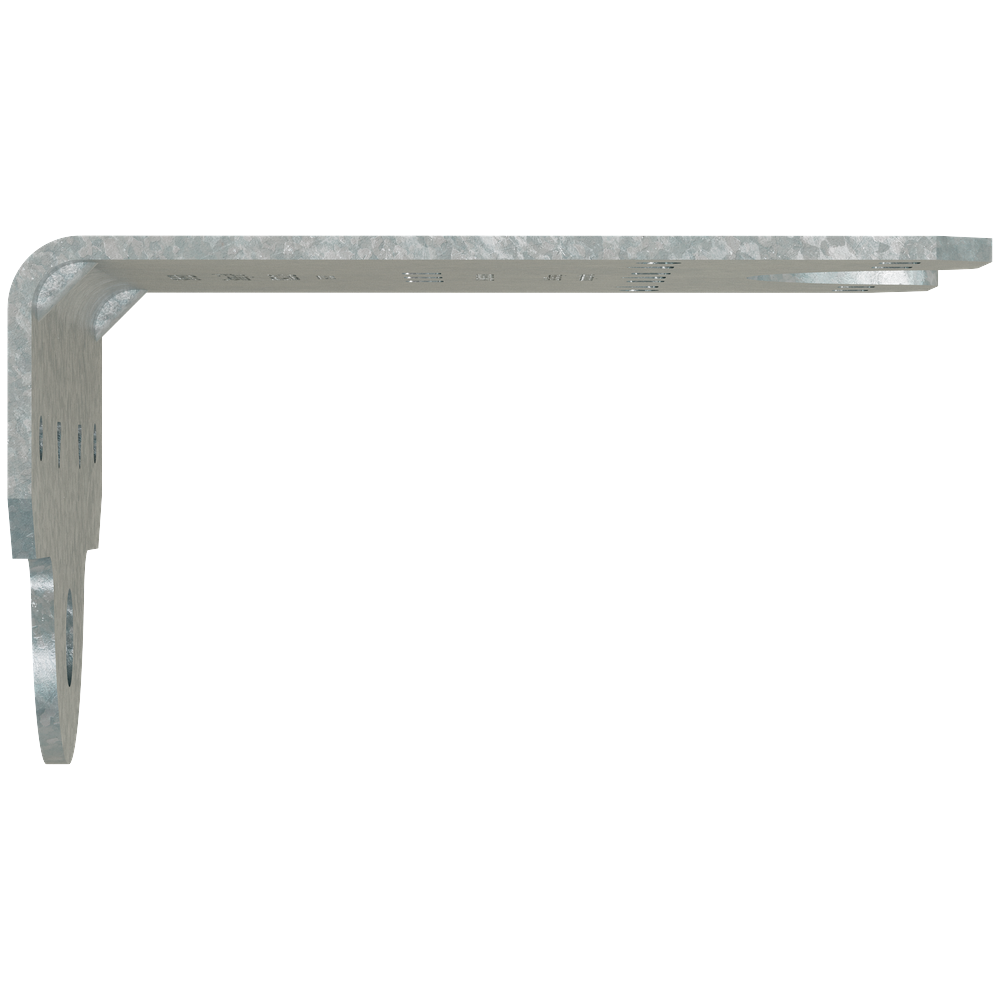

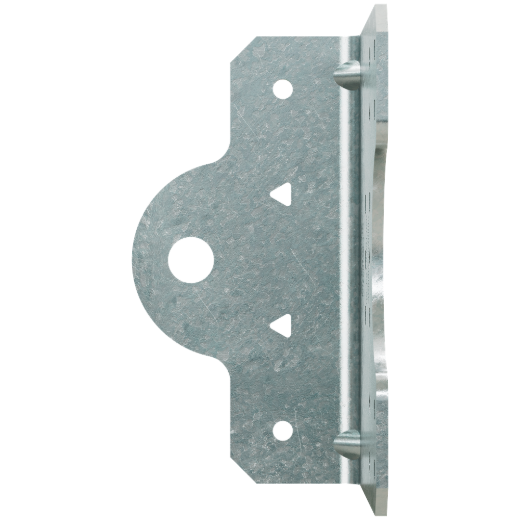

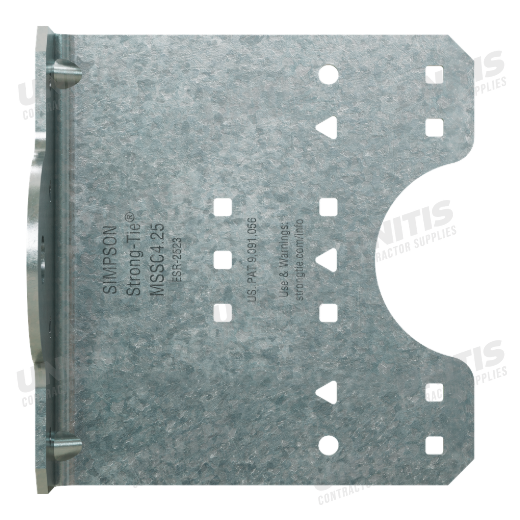

Simpson MSSC 4-1/4" 12-Gauge Galvanized Steel-Stud Clip - 50/box

Mfr.: Simpson Strong-Tie
Item #: I100420
Mfr. #: MSSC4.25-R50
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $290.56
i h h

Description

MSSC connectors are versatile utility clips ideal for a variety of stud-to-stud and stud-to-structure applications in cold-formed steel construction. The clips have been designed to enable easy installation on the open side of studs or joists with flanges up to 3 inch long and return lips up to 3/4 inch. A wide pattern of strategic fastener locations allows the MSSC to accommodate a variety of traditional and custom designs.
  • Prepunched holes reduce installation cost by eliminating predrilling
  • Intuitive fastener hole positions ensure accurate clip installation
  • Angle lengths accommodate hard-side or soft-side attachment
  • 4 in. leg length enables soft-side connections
  • Also suitable for u-channel bridging
  • Galvanized (G90) for extra corrosion resistance

Features

  • Prepunched holes reduce installation cost by eliminating predrilling
  • Intuitive fastener hole positions ensure accurate clip installation in accordance with design, support a wide range of design and application requirements and provide installation flexibility
  • Angle lengths accommodate either hard-side or soft-side attachment for studs and joists with return lips up to 3/4 in.
  • 4 in. leg length enables soft-side connections for studs and joists with flanges up to 3 in.
  • Also suitable for u-channel bridging
  • Galvanized (G90) for extra corrosion resistance

Specifications


Flange Length (max)3 inchReturn Lip Length (max)3/4 inch
Leg Length4 inchMaterialGalvanized (G90)
*
*
*
