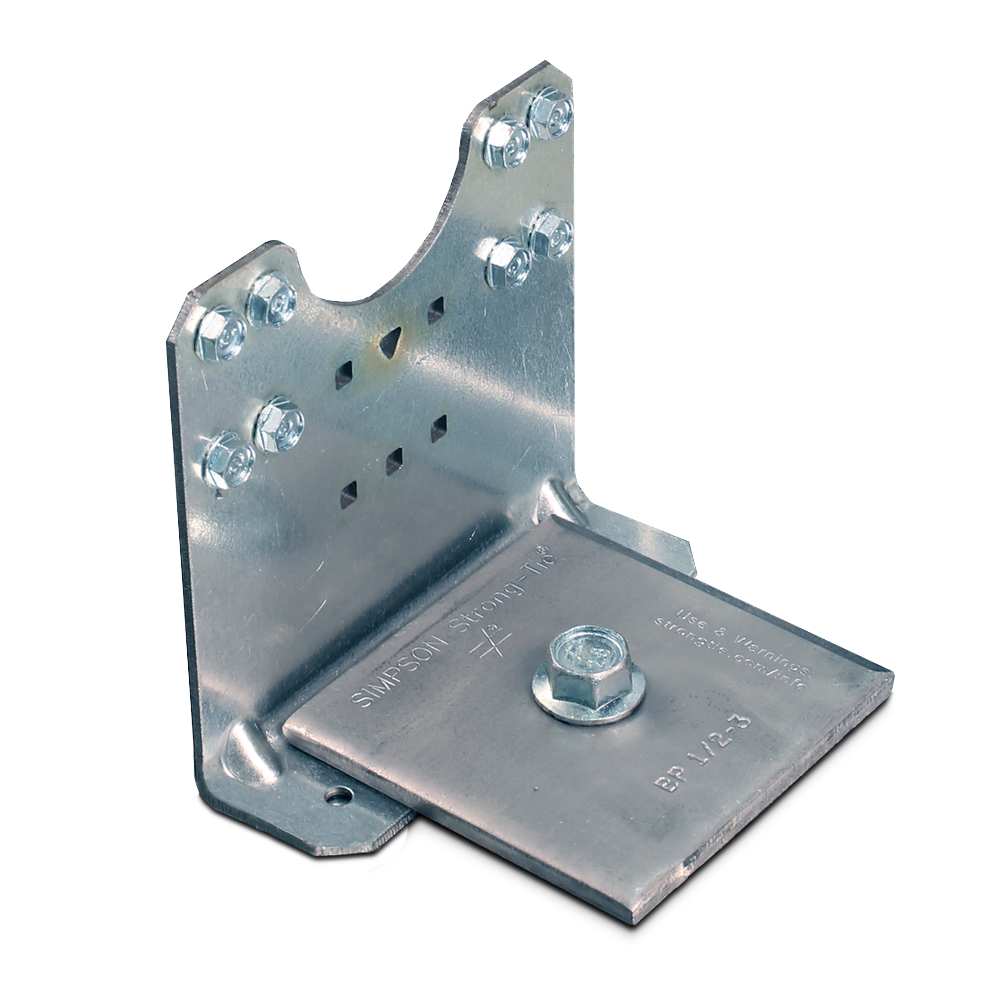

Simpson MSSC 4-1/4" Kneewall Connector for 6" Framing Member w/ Bearing Plate - 20/box

Mfr.: Simpson Strong-Tie
Item #: I100419
Mfr. #: MSSC4.25KW-KT20
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $184.53
i h h

Description

Simpson Strong-Tie rigid connectors for cold-formed steel (CFS) construction deliver the increased load capacity needed for steel applications. Rigid connectors include options from skewable angles and steel header hangers to bypass framing and kneewall connectors. These steel connectors are ideal to use in all projects to support load-bearing walls. MSSC connectors are designed to work in tandem with Simpson Strong-Tie BP 1/2-3 bearing plates to provide solutions for moment-resisting kneewall lighter-duty applications.
  • One simple custom hole pattern for each stud size simplifies specification and installation
  • 3/8 in. diameter anchor bolt location enables easy tool access
  • BP 1/2-3 bearing plates included
  • MSSC made from 97 mil (12 ga.) steel (50 ksi); BP made from 229 mil (3 ga.) steel (33 ksi)
  • 4-1/4 in. kneewall connector compatible with 6 in. deep steel framing member
  • MSSC zinc galvanized (G90) finish; BP uncoated steel

Features

  • One simple custom hole pattern for each stud size simplifies specification and installation
  • 3/8 in. diameter anchor bolt location enables easy tool access
  • BP 1/2-3 bearing plates included
  • MSSC made from 97 mil (12 ga.) steel (50 ksi); BP made from 229 mil (3 ga.) steel (33 ksi)
  • 4-1/4 in. kneewall connector compatible with 6 in. deep steel framing member
  • MSSC zinc galvanized (G90) finish; BP uncoated steel

Includes

  • BP 1/2-3 bearing plates

Specifications


MSSC Material97 mil (12 ga.) steel (50 ksi)BP Material229 mil (3 ga.) steel (33 ksi)
Kneewall Connector Width4-1/4 inchCompatible Steel Framing Depth6 inch
MSSC FinishZinc galvanized (G90)BP FinishUncoated steel
Anchor Bolt Diameter3/8 inch
*
*
*
