  • Simpson MSTA18 18-In. 18-Gauge Medium Strap Tie

Simpson MSTA18 18-In. 18-Gauge Medium Strap Tie

Mfr.: Simpson Strong-Tie
Item #: I090800
Mfr. #: MSTA18
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $2.40
i h h

Description

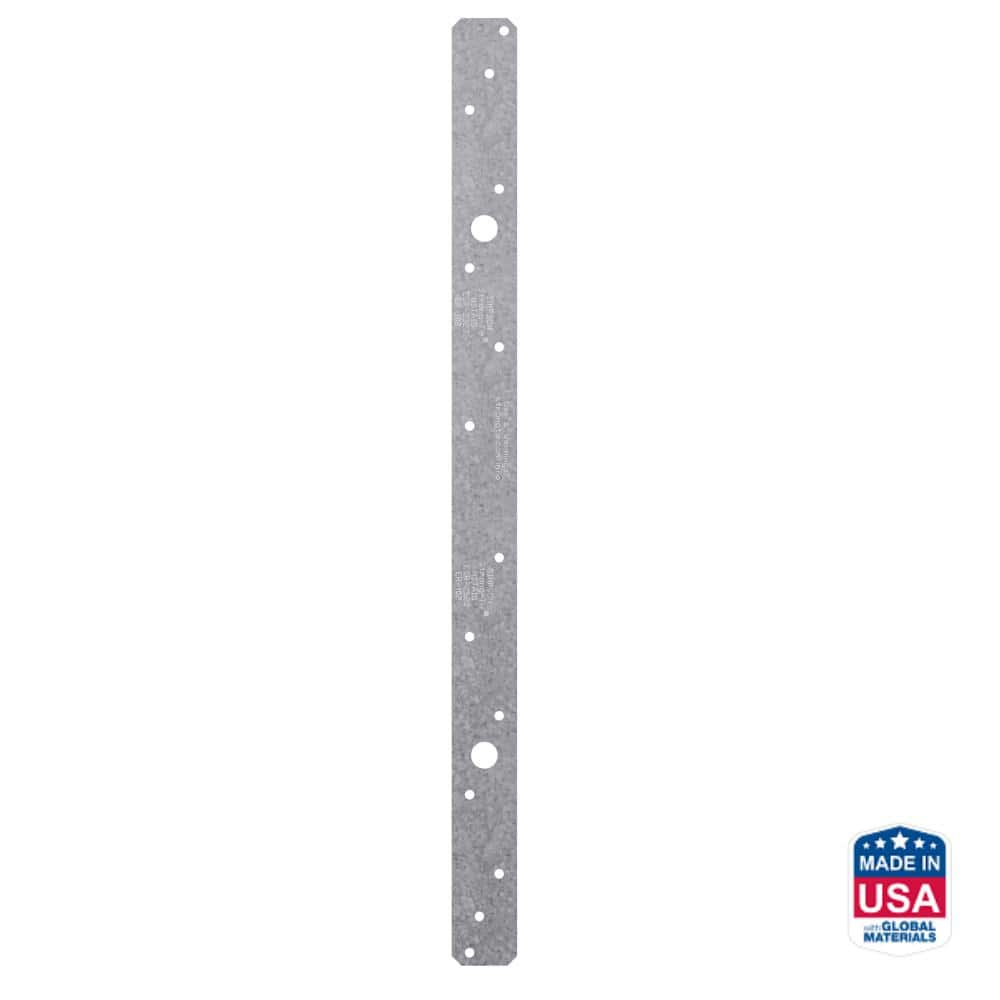

The Simpson Strong-Tie MSTA18 is a medium-duty strap tie engineered to resist tension loads in wood-to-wood uplift applications. This load-rated strap features a staggered nail pattern that helps minimize wood splitting during installation on the edge of 2x members. It is precut for quick installation and is ideal for floor-to-floor clear span applications to provide reinforcement against wind and seismic forces.
  • G90 Galvanized Finish
  • 18-Gauge Steel Construction

Features

  • Staggered nail pattern minimizes wood splitting for a stronger connection.
  • Load-rated and precut for optimized performance and efficiency.

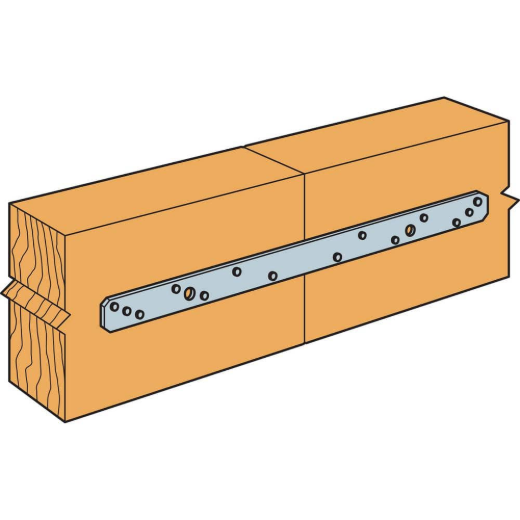

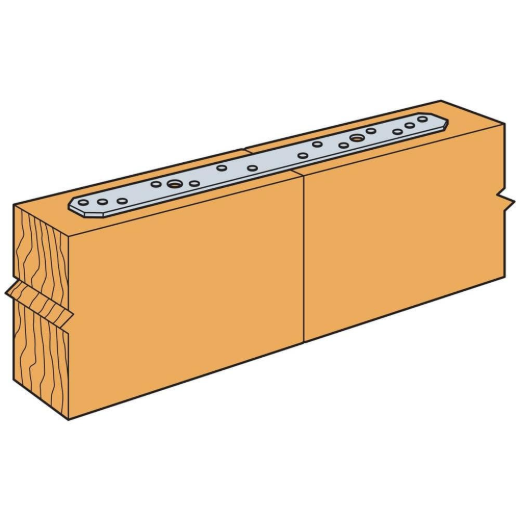

  • Designed for installation on the edge of 2x framing members.
  • High corrosion resistance with G90 galvanized coating.

Includes

  • MSTA18 Medium Strap Tie
Products specifications
Product Type Strap Tie
Gauge 18 Gauge
Material Steel
Finish G90 Galvanized
Length 18 inch
Width 1-1/4 inch
Member Size 2x
Fasteners Required (14) 0.148 inch x 2-1/2 inch Nails
*
*
*
