Simpson Mudsill Anchor

Mfr.: Simpson Strong-Tie
Item #: I093250
Mfr. #: MASB
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $2.54
i h h

Description

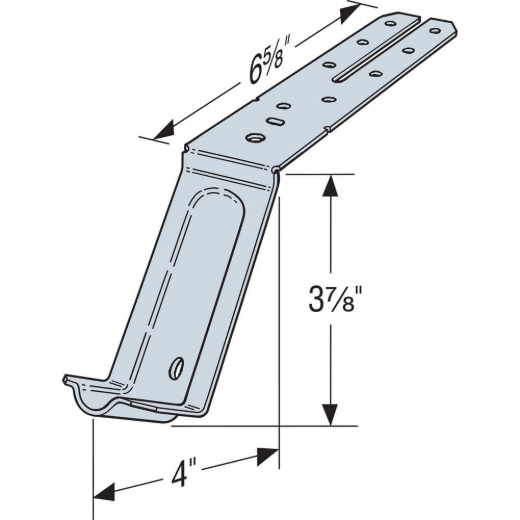

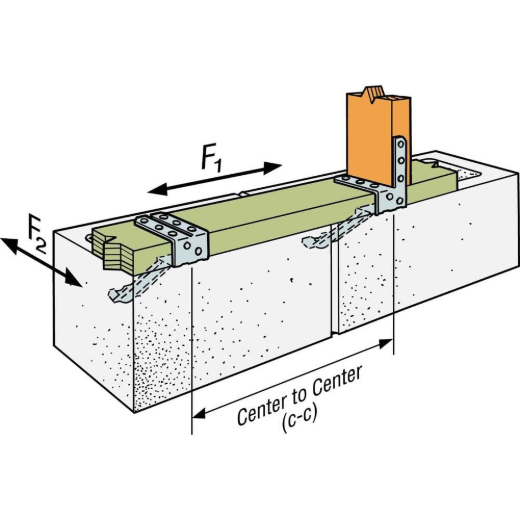

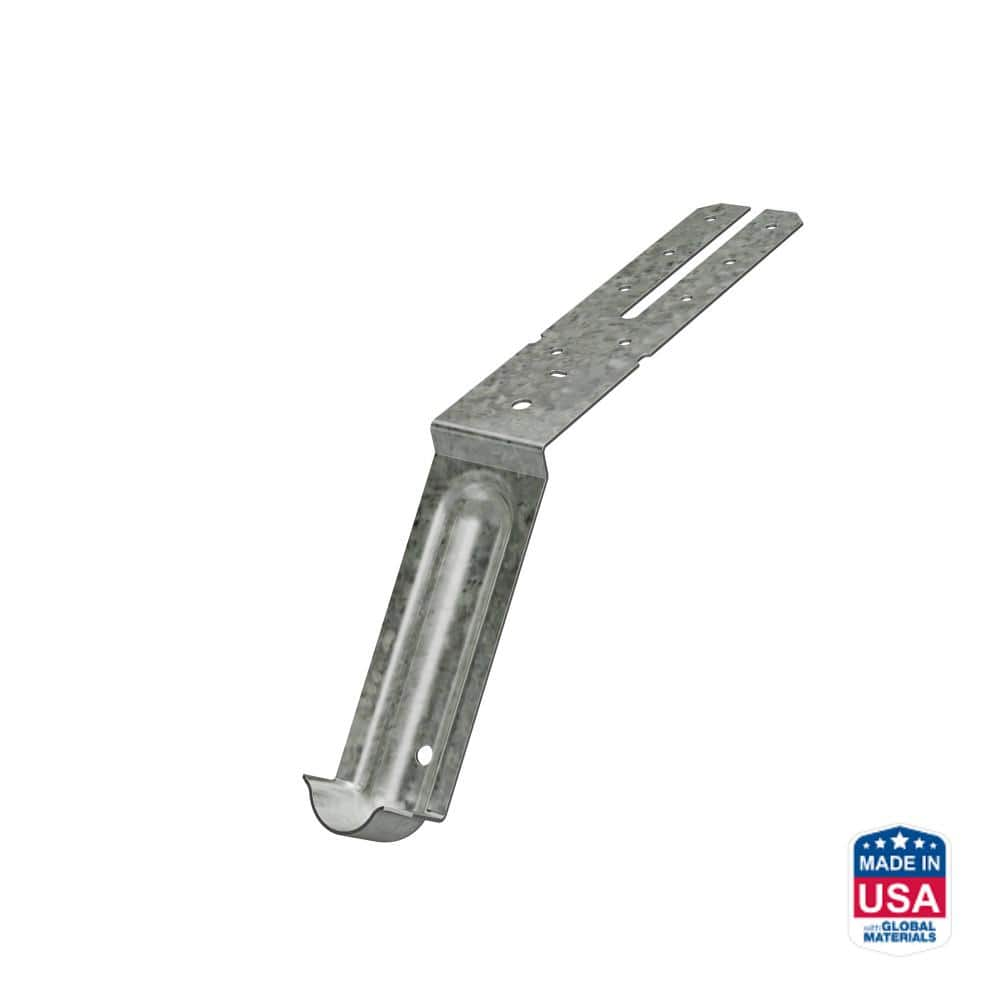

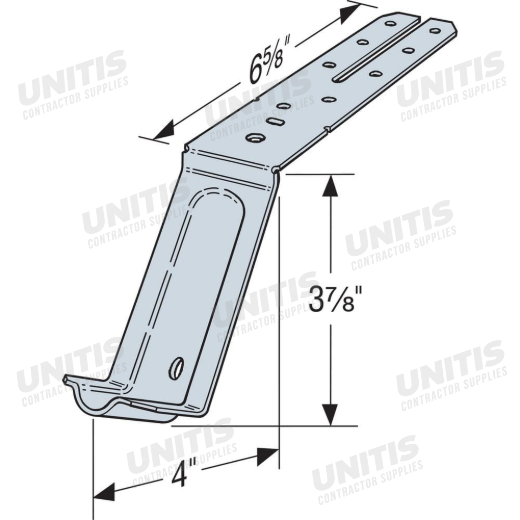

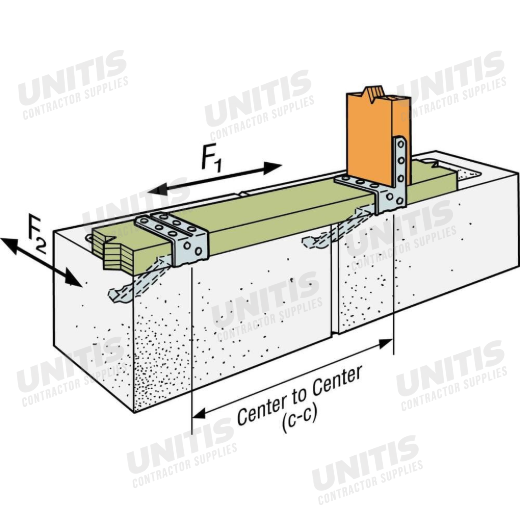

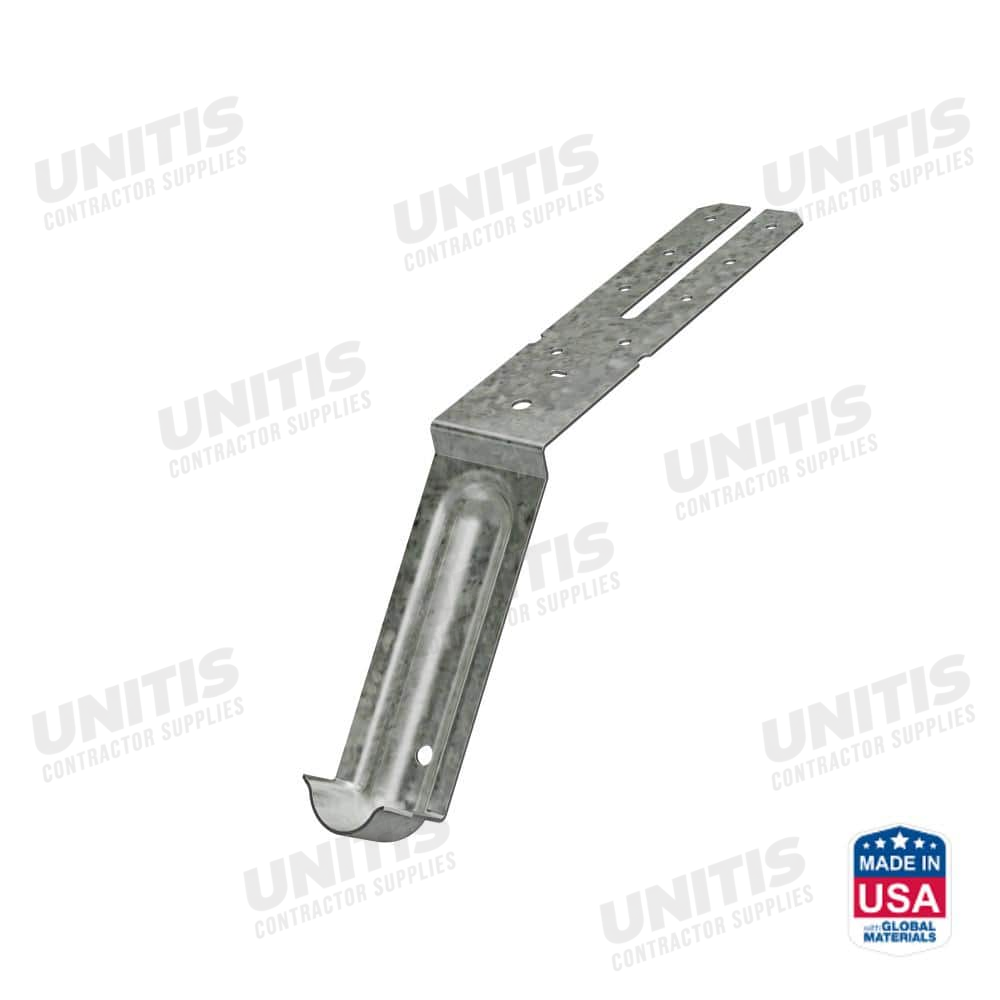

The Simpson Strong-Tie MASB Mudsill Anchor is specifically designed to anchor mudsills to concrete block foundations and walls. It offers a time-saving alternative to traditional anchor bolts by easily installing into wet concrete-grouted CMU block. This one-piece anchor eliminates the need for separate nuts and washers, simplifying the installation process and reducing the risk of lost components. Its unique offset design provides flexibility in concrete block applications and resolves issues with misplaced anchor bolts.
  • Designed for concrete block foundations and walls
  • Time-saving alternative to anchor bolts
  • One-piece design, no nuts or washers to lose

Features

  • Offset design for use in concrete block applications.
  • Installs easily into wet concrete-grouted CMU block.
  • Suitable for stem wall or slab foundations.
  • CMU shall have a minimum f'm = 1,500 psi.

Includes

  • MASB Mudsill Anchor.
  • Specified fasteners (included).
Products specifications
Material 16 gauge
Finish Galvanized or ZMAX coating
For CMU Minimum fm = 1,500 psi
*
*
*
