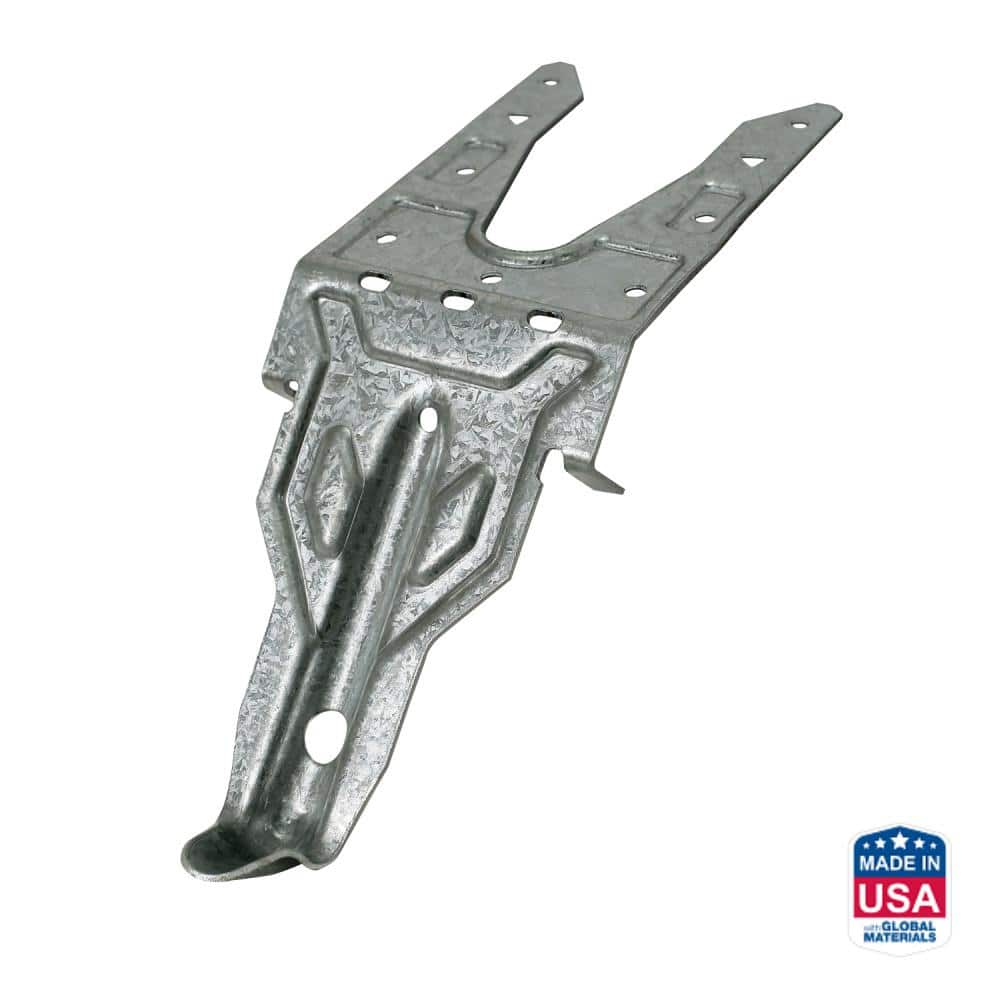

Simpson Mudsill Anchor For Standard Forms

Mfr.: Simpson Strong-Tie
Item #: I093249
Mfr. #: MASAZ
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $2.32
i h h

Description

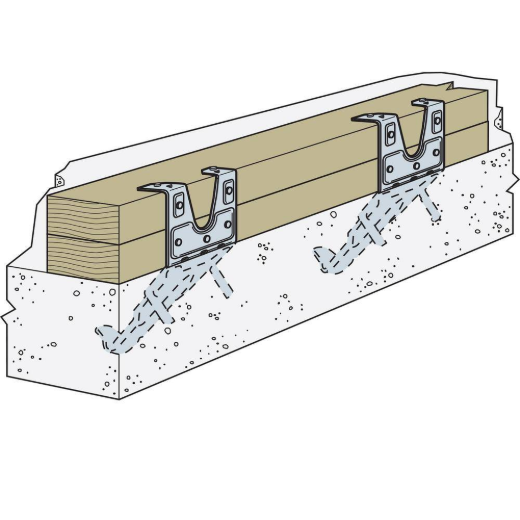

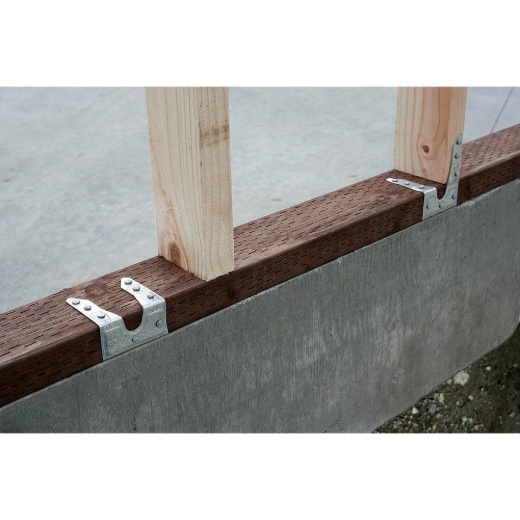

The Simpson Strong-Tie MASAZ Mudsill Anchor provides a time-saving and robust solution for anchoring mudsills to concrete forms. It offers enhanced load-carrying capacity and eliminates the need for square plate washers in seismic designs, simplifying installation and improving structural integrity. This anchor is code-listed and tested for both cracked and uncracked concrete, making it suitable for high seismic zone construction and standard form applications. It lays flat on the form board, reducing labor costs associated with drilling and aligning holes, and minimizes the risk of retrofitting due to misplaced anchor bolts.
  • Time-saving alternative to traditional anchor bolts
  • Enhanced load-carrying capacity
  • Eliminates need for square plate washers in seismic designs
  • Code listed by ICC-ES
  • Tested for cracked and uncracked concrete

Features

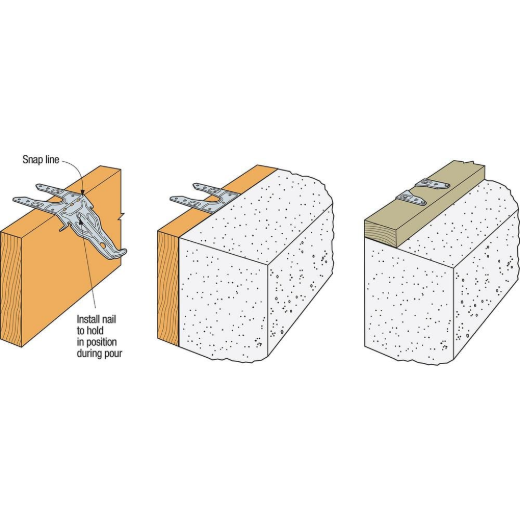

  • Attaches easily to the concrete form for quick installation.

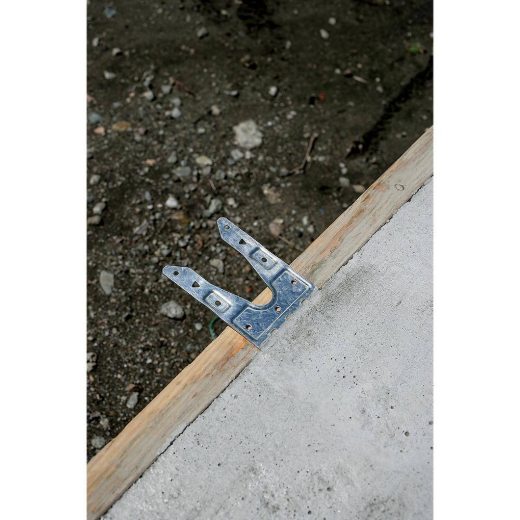

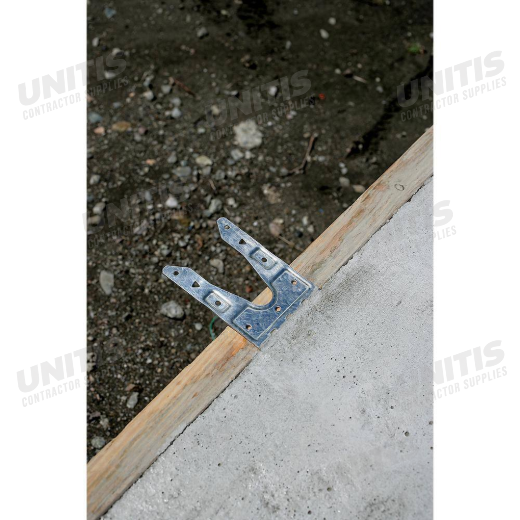

  • Lays flat on the form board, eliminating the need to finish around anchor bolts.
  • Reduces labor costs by avoiding drilling plates and aligning holes.
  • Flat design prevents modifications in prefabricated walls.

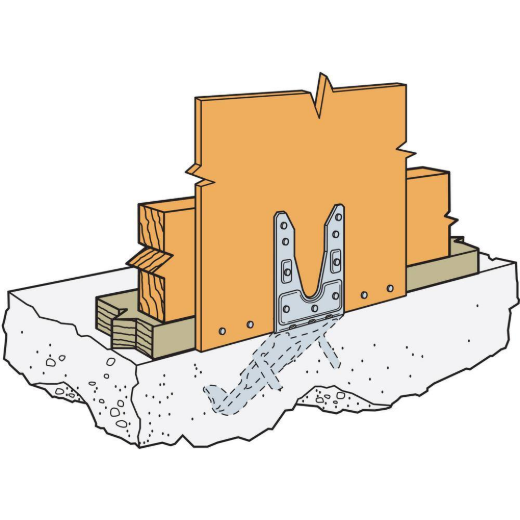

  • Eliminates notching studs due to anchor bolt placement.
  • Reduces chances of retrofitting due to missing or misplaced anchor bolts.

Includes

  • 1 Mudsill Anchor For Standard Forms - Zmax Finish
  • Specified fasteners (included)
Products specifications
Finish ZMAX
For Treated Lumber Yes
Weight 0.3 lb
Minimum f'c 2500 psi
Minimum end distance 4 inch
Minimum spacing 8 inch
*
*
*
