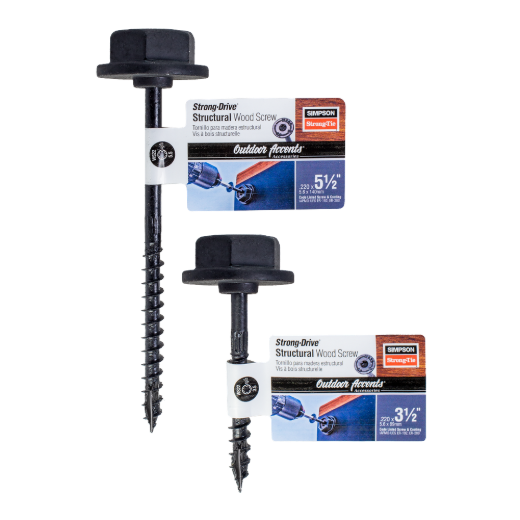

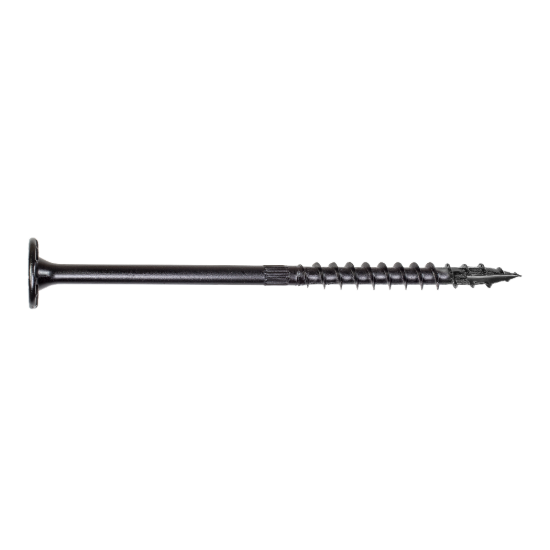

Simpson Outdoor Accents Structural Wood Screw - .220" x 5-1/2" DB Coating, Black w/Washer

Mfr.: Simpson Strong-Tie
Item #: I100529
Mfr. #: SDWS22512DBB-RN1
*
Pickup at San Diego | Change Delivering to 90001 | Change

Price: $5.91
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Outdoor Accents structural wood screw reduces installation time by driving easily without predrilling. When combined with the patented, load-rated Outdoor Accents hex-head washer, the solution delivers the decorative appearance of a bolt connection but with a much easier installation. The structural wood screw can be used with either the Mission Collection or Avant Collection, as well as separately to add flair to any outdoor project. The 5-1/2 in. screw features a bold thread design that enables superior holding to attach ledgers and other secure connections.
  • Reduces installation time by driving easily without predrilling
  • Patented SawTooth point ensures fast starts and eliminates predrilling
  • Under-head nibs offer greater control when seating the head

Features

  • Use with Outdoor Accents decorative hardware and STN22 hex-head washer (washer included) for an appealing look
  • Use the Outdoor Accents structural screw without the washer as a wood-to-wood fastener
  • Patented SawTooth point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
  • Under-head nibs offer greater control when seating the head (0.760 in. head dia.)
  • Deep 6-lobe T40 recess provides easy, secure driving
  • Length: 5-1/2 in.

Includes

  • STN22 hex-head washer

Specifications


Length5-1/2 inchHead Diameter0.760 inch
Drive TypeDeep 6-lobe T40 recess
Products specifications
Anchor Diameter 220 in
Anchor Length 220 in
Application Outdoor Accents Decorative Hex Hardware
Bit Tip Included No
Code Listing ICC-ES ESR-3046
Collated No (Loose / Bulk Box)
Country of Origin Varies (subject to change)
Drive Type 5/16 Hex
Finish / Coating Double-Barrier (DB) Coating
Head Style Hex Washer Head w/ Pre-Attached Hex Washer
*
*
*
