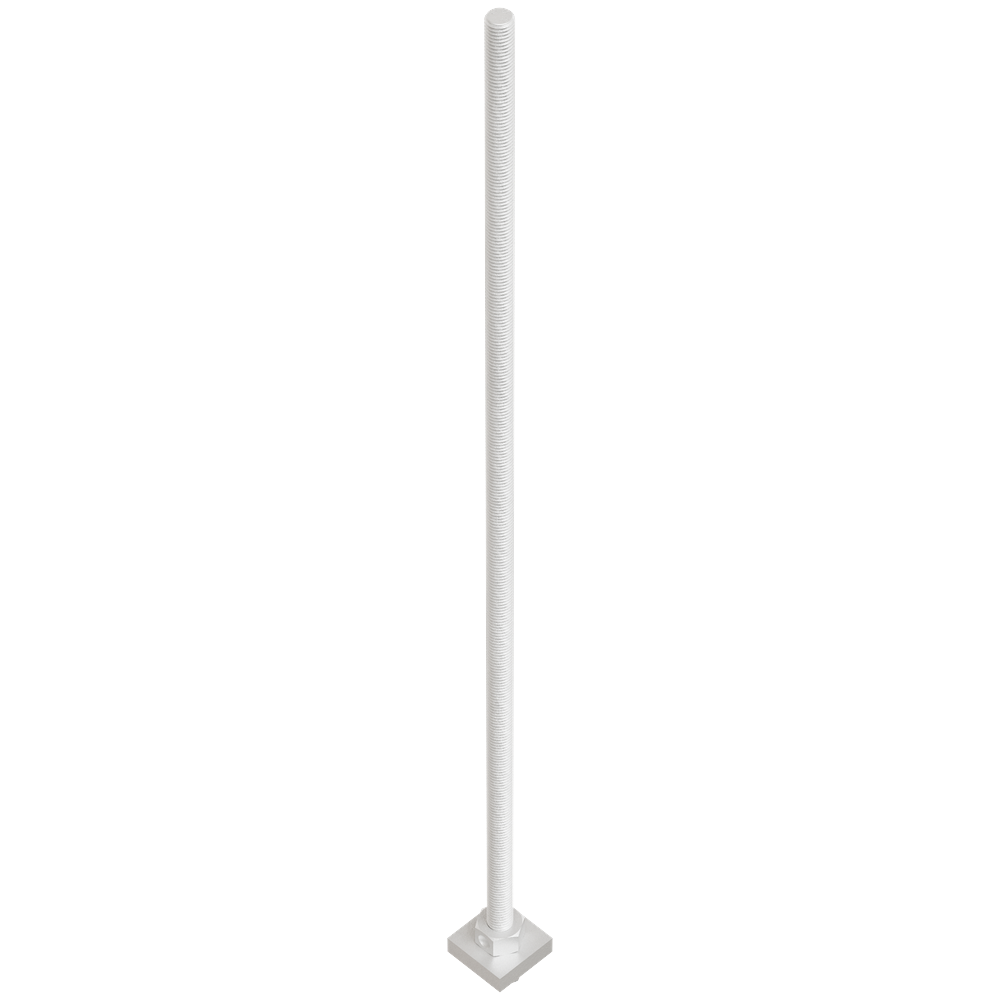

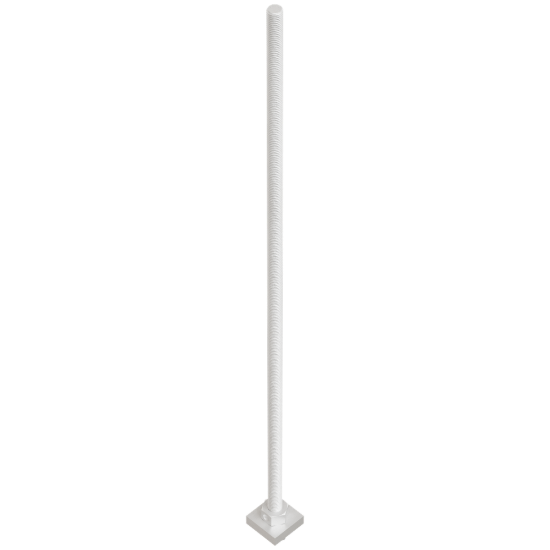

Simpson PAB 5/8" x 30" HDG Pre-Assembled Anchor Bolt w/ Washer

Mfr.: Simpson Strong-Tie
Item #: I055901
Mfr. #: PAB5-30-HDG
*
Pickup at Buena Park | Change Delivering to 90001 | Change

Price: $37.72
i h h

Description

Pre-assembled anchor bolt with plate washer, ideal for high-tension-load applications such as rod systems and shearwalls. Features a head stamp for easy identification after pour.
  • 5/8 inch diameter, 30 inch length
  • Hot-dip galvanized (HDG) finish
  • Pre-assembled with plate washer and hex nuts

Features

  • Available in diameters from 1/2 inch to 1-1/4 inch and lengths from 12 inch to 36 inch in 6 inch increments
  • Available in standard and high-strength steel
  • Head stamp contains No Equal sign, diameter designation, and 'H' on high-strength rods

Includes

  • Pre-assembled anchor bolt with plate washer and two hex nuts

Specifications


Diameter5/8 inchLength30 inch
FinishHDGMaterialStandard Steel (ASTM F1554 Grade 36, A36 or A307;
High-Strength SteelASTM A449 (up to 1 inch dia.) Fu=120 ksi; ASTM A193 B7InstallationChase threads on HDG PABs for standard nuts or cou
Products specifications
Anchor Diameter 5/8 in
Anchor Type Cast-In-Place
Code Listing ASTM F1554 Grade 36; HDG per ASTM A153
Country of Origin Varies (subject to change)
Finish / Coating Hot-Dip Galvanized
Head Style Pre-Assembled with Washer & Nut
Material Carbon Steel
Overall Length 30 in
*
*
*
