Simpson PAB 5/8" x 36" High-Strength Pre-Assembled Anchor Bolt w/ Washer

Mfr.: Simpson Strong-Tie
Item #: I049101
Mfr. #: PAB5H-36
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $59.40
i h h

Description

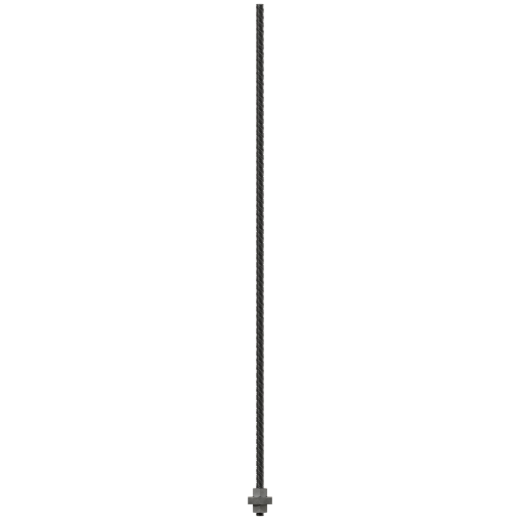

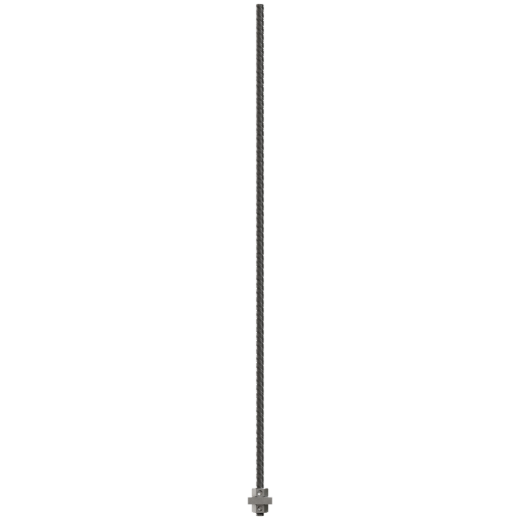

The Simpson Strong-Tie PAB anchor bolt is a versatile cast-in-place anchor bolt ideal for high-tension-load applications, such as rod systems and shearwalls. It features a plate washer at the embedded end, sandwiched between two fixed hex nuts. The PAB also has a head stamp for easy identification after the pour.
  • Available in diameters from 1/2 in. to 1-1/4 in. and lengths from 12 in. to 36 in. (in 6 in. increments)

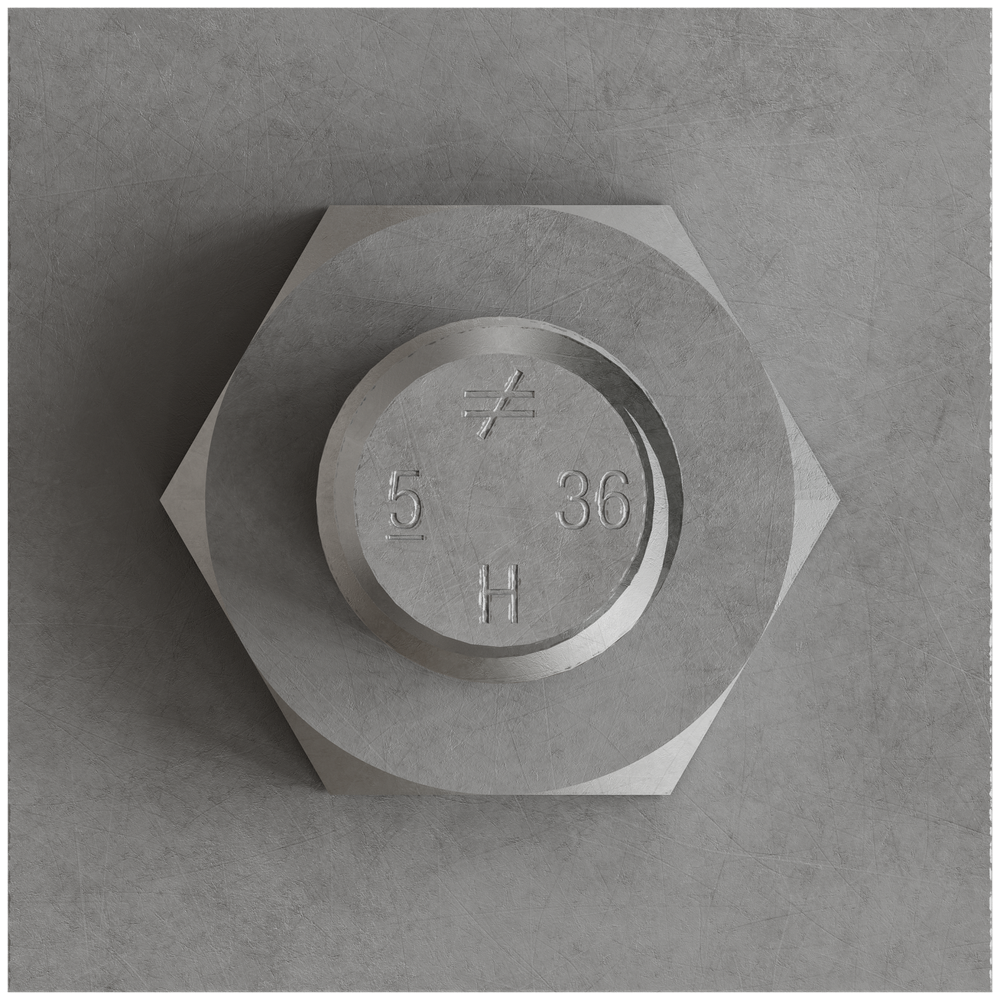

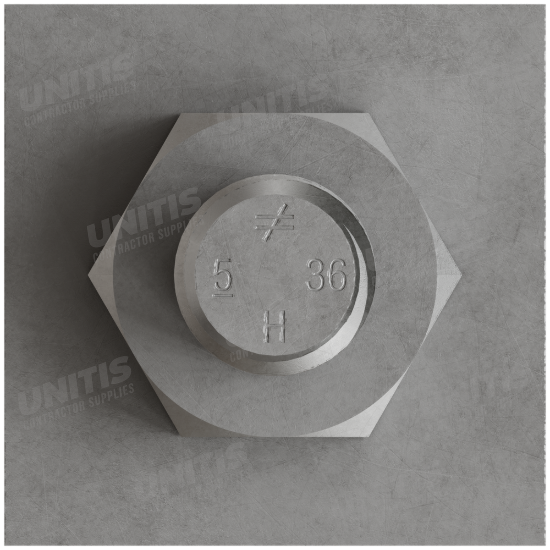

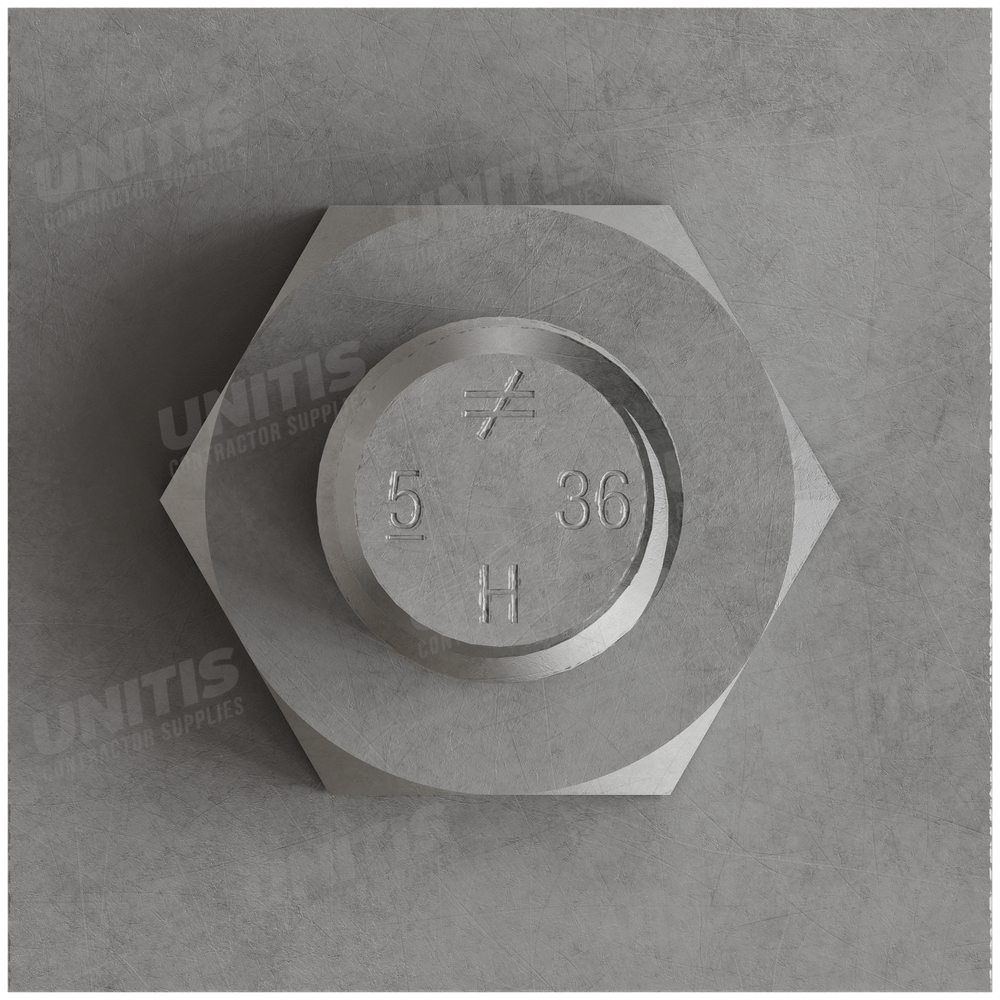

  • Head stamp contains the Simpson Strong-Tie No Equal sign and diameter designation
  • High-strength rod
  • Rod diameter: 5/8 in.
  • Rod length: 36 in.
  • Material: Steel - ASTM A449; Fu = 120 ksi

Features

  • Available in diameters from 1/2 in. to 1-1/4 in. and lengths from 12 in. to 36 in. (in 6 in. increments)
  • Head stamp contains the Simpson Strong-Tie No Equal sign and diameter designation
  • High-strength rod
  • Rod diameter: 5/8 in.
  • Rod length: 36 in.
  • Material: Steel - ASTM A449; Fu = 120 ksi

Specifications


Diameter5/8 inchLength36 inch
MaterialSteel - ASTM A449; Fu = 120 ksi
*
*
*
