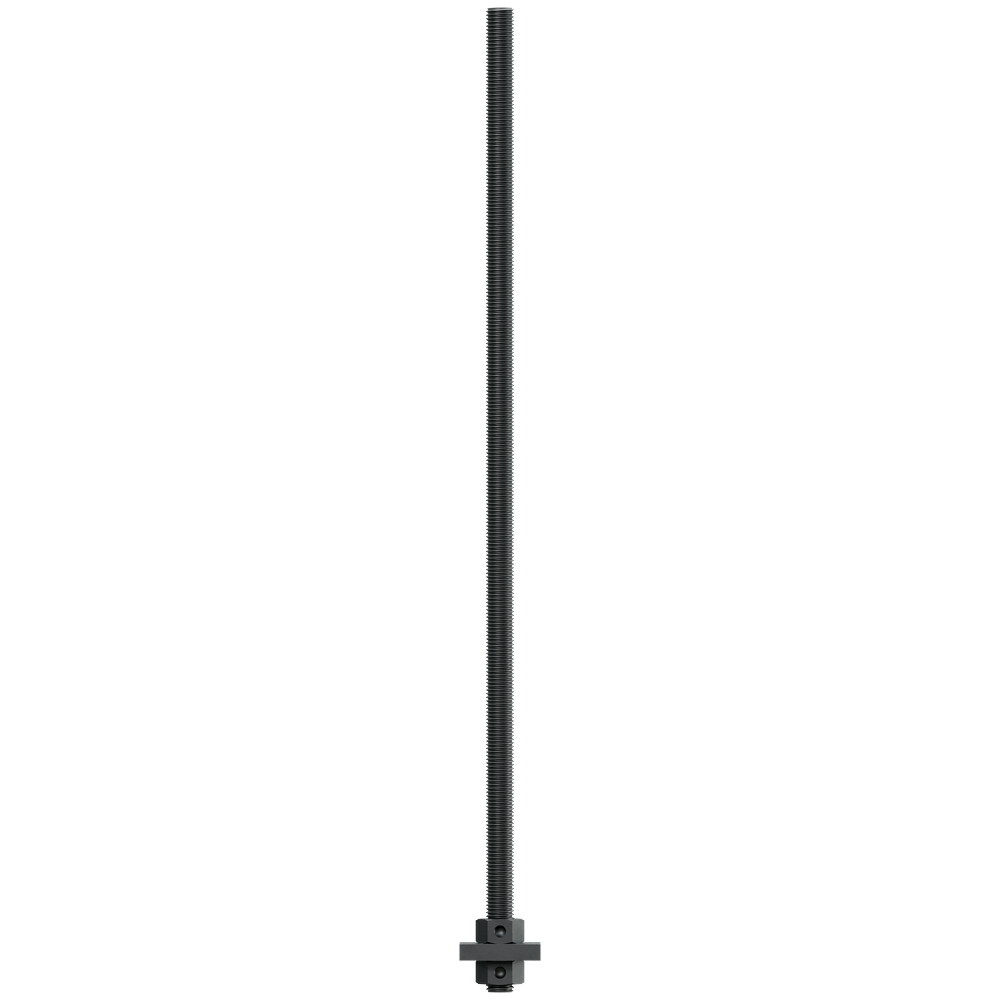

Simpson PAB 7/8" x 30" HDG Pre-Assembled Anchor Bolt w/ Washer

Mfr.: Simpson Strong-Tie
Item #: I055597
Mfr. #: PAB7-30-HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $103.44
i h h

Description

Pre-assembled anchor bolt with plate washer, ideal for high-tension-load applications such as rod systems and shearwalls. Features a head stamp for easy identification after pour.
  • Diameter: 7/8 inch
  • Length: 30 inch
  • Hot-dip galvanized (HDG) finish
  • High-strength steel

Features

  • Plate washer at embedded end sandwiched between two fixed hex nuts
  • Head stamp contains No Equal sign, diameter designation, and 'H' for high-strength
  • Available in standard and high-strength steel
  • Threads may need chasing for standard nuts or couplers on HDG

Includes

  • Pre-assembled anchor bolt with plate washer and hex nuts

Specifications


Diameter7/8 inchLength30 inch
FinishHDGMaterialHigh-strength steel (ASTM A449 up to 1 inch dia.)
Tensile Strength120 ksiHead StampNo Equal, diameter, H
*
*
*
