  • Simpson PBS ZMAX Galvanized Standoff Post Base for 4x4

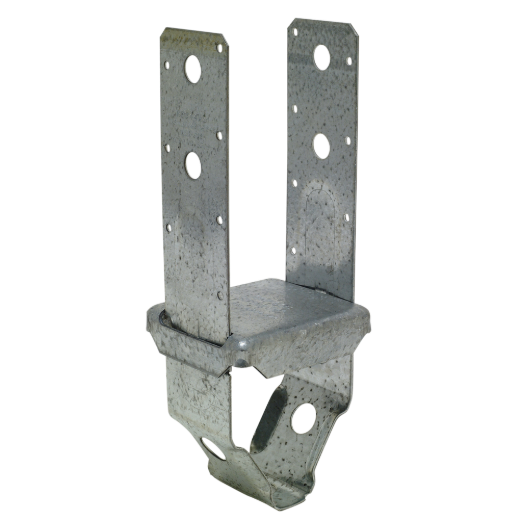

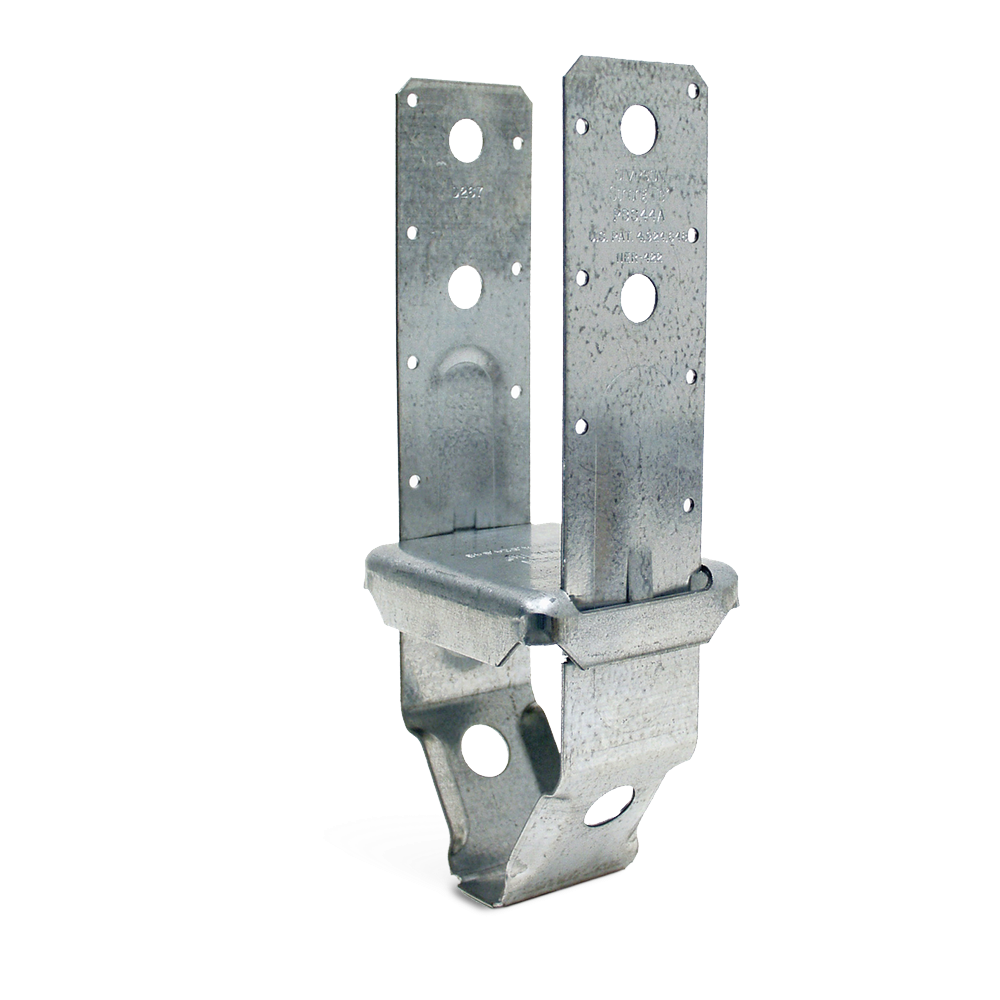

Simpson PBS ZMAX Galvanized Standoff Post Base for 4x4

Mfr.: Simpson Strong-Tie
Item #: I052982
Mfr. #: PBS44AZ
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $34.15
i h h

Description

Simpson Strong-Tie post bases connect the bottom of wood posts or columns to a concrete foundation. The PBS is designed to provide a secure connection between a post (or column) and concrete in projects including decks, patio covers and other top-supported structures. These post bases are elevated 1 in. to avoid contact of the wood post with standing water to help prevent rot at the post end.
  • Provides a 1-in. standoff between post and concrete that meets code requirements
  • Embeds in wet concrete before it has cured and is designed to install flush with the concrete surface
  • Embossment in the vertical straps provides increased strength
  • Optional fastening with either nails or bolts
  • Nominal post size: 4x4
  • Base 12-ga. steel; Strap 14-ga. steel

Features

  • Provides a 1-in. standoff between post and concrete that meets code requirements
  • Embeds in wet concrete before it has cured and is designed to install flush with the concrete surface
  • Embossment in the vertical straps provides increased strength
  • Optional fastening with either nails or bolts
  • Nominal post size: 4x4
  • Base 12-ga. steel; Strap 14-ga. steel

Specifications


Nominal post size4x4Base material12-ga. steel
Strap material14-ga. steelStandoff1 inch
*
*
*
