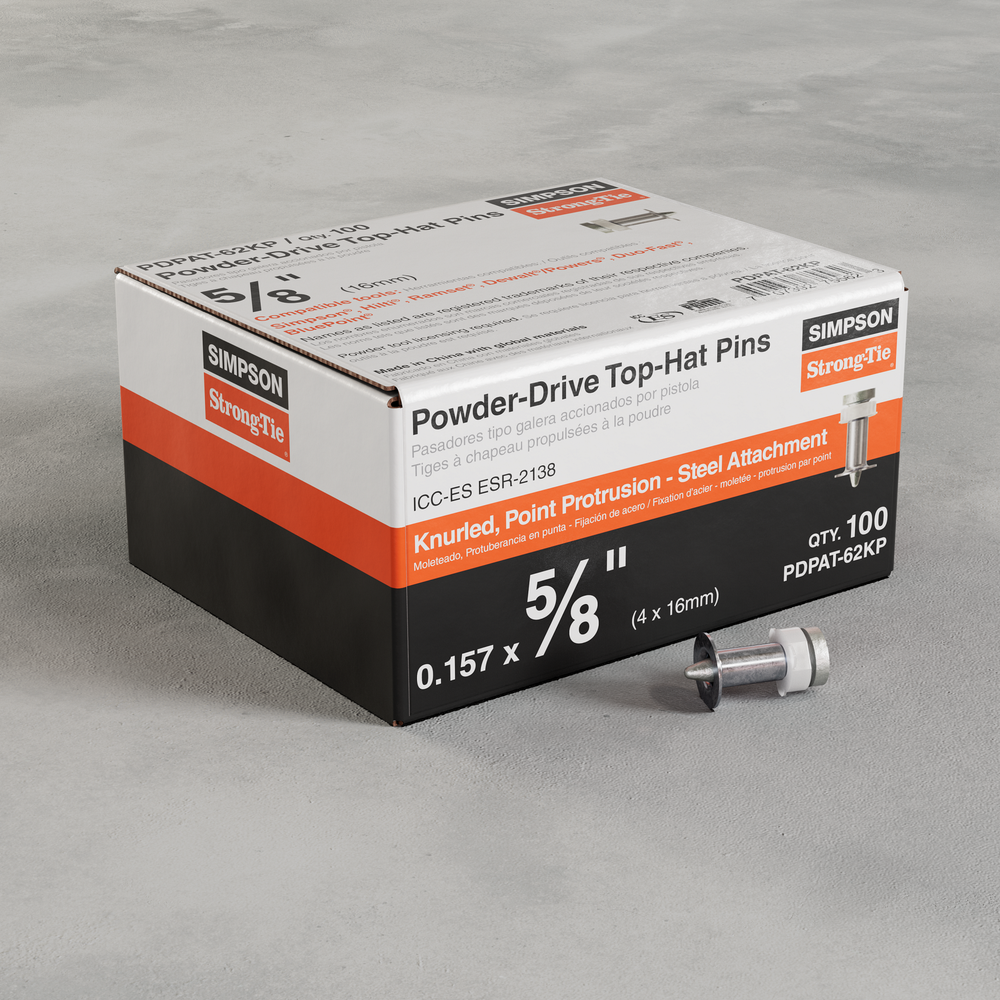

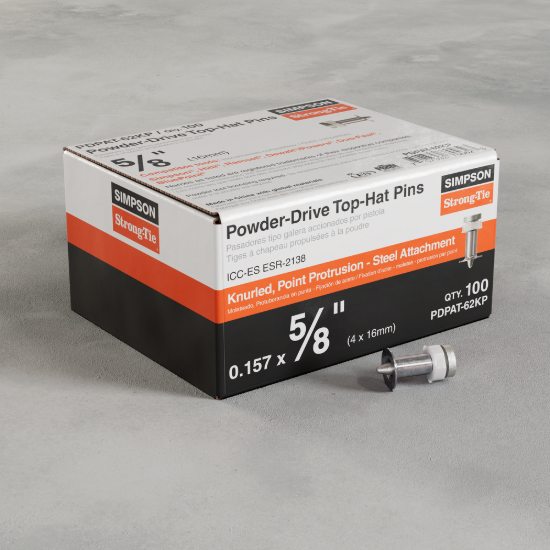

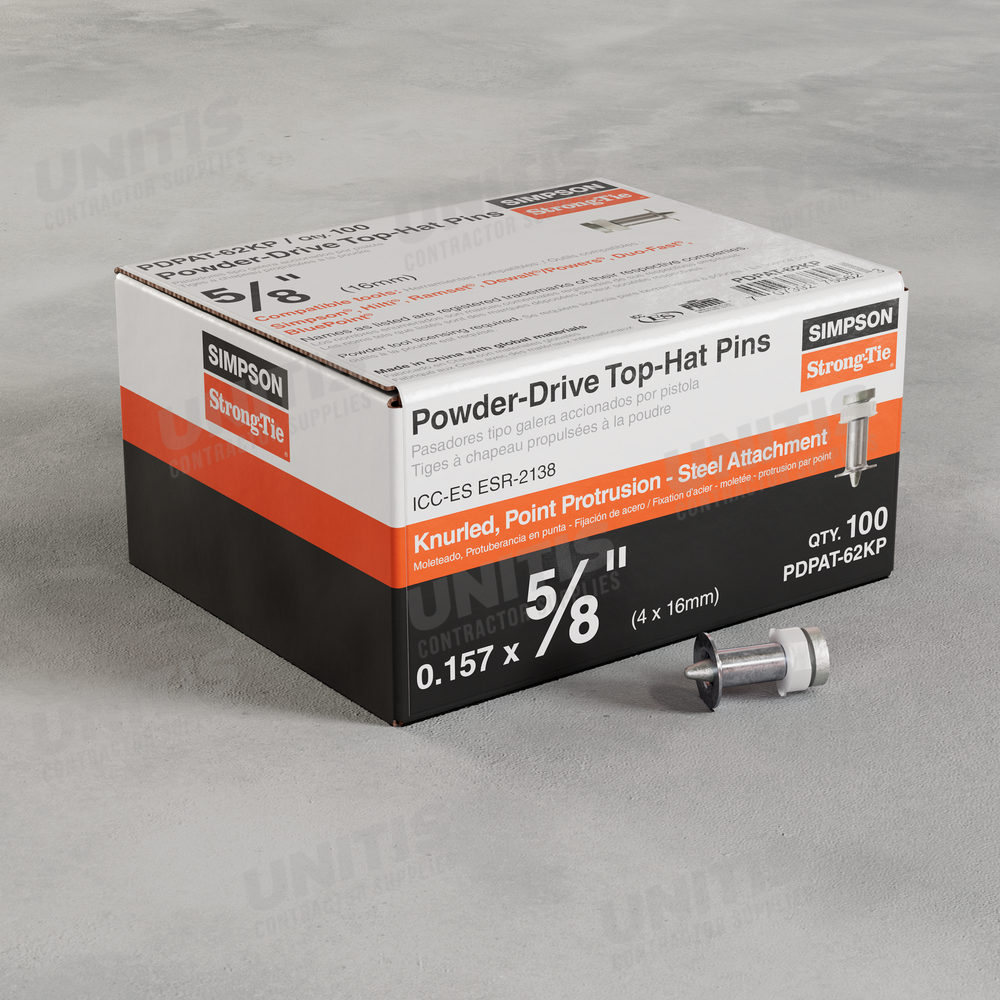

Simpson PDPAT 5/8-" Knurled-Shank Point Protrusion Powder-Driven Top-Hat Pin - 100/box

Mfr.: Simpson Strong-Tie
Item #: I093458
Mfr. #: PDPAT-62KP
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $19.33
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

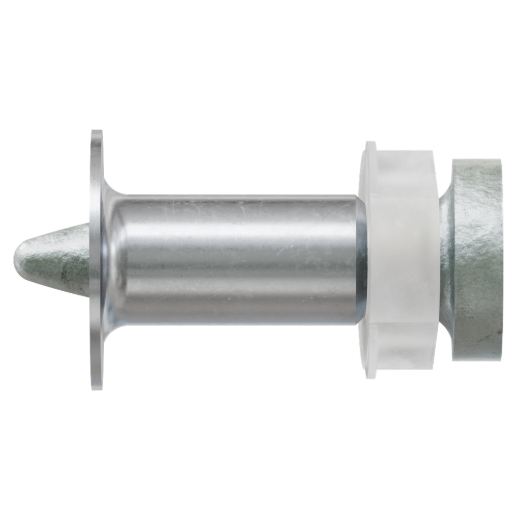

Simpson Strong-Tie offers a full range of gas- and powder-actuated tools and fasteners designed to maximize jobsite productivity and operator comfort in most applications. The PDPAT is a hardened-steel, powder-actuated top-hat pin designed to fasten building components to concrete, steel and CMU. The PDPAT fastener has a 0.300-in. diameter head with a 0.157-in. diameter shank and a steel top-hat assembly for fast loading and centering of the pin in the nosepiece of the tool.
  • Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
  • Designed for use with Simpson Strong-Tie powder-actuated tool systems as well as other common tools
  • Elongated tip on pin extends beyond nose of tool to aid in the pin placement in hole

Features

  • The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
  • Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
  • Designed for use with Simpson Strong-Tie powder-actuated tool systems as well as other common tools
  • Elongated tip on pin extends beyond nose of tool to aid in the pin placement in hole
  • Head diameter: 0.300 in.
  • Shank diameter: 0.157 in.

Specifications


Head diameter0.300 inchShank diameter0.157 inch
*
*
*
