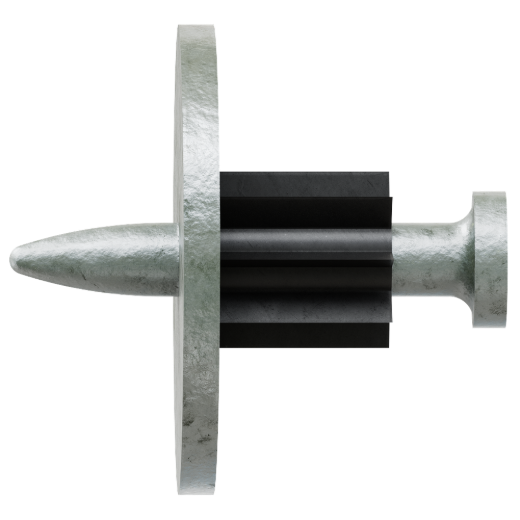

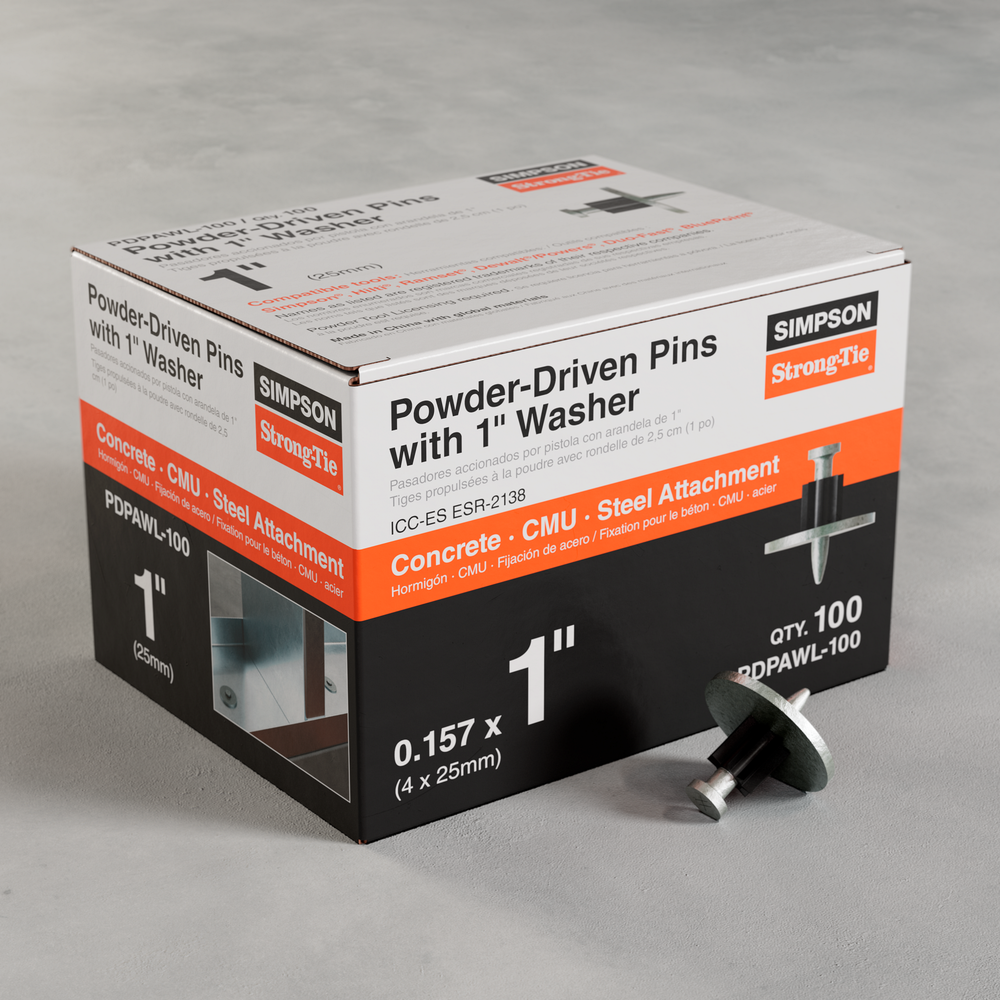

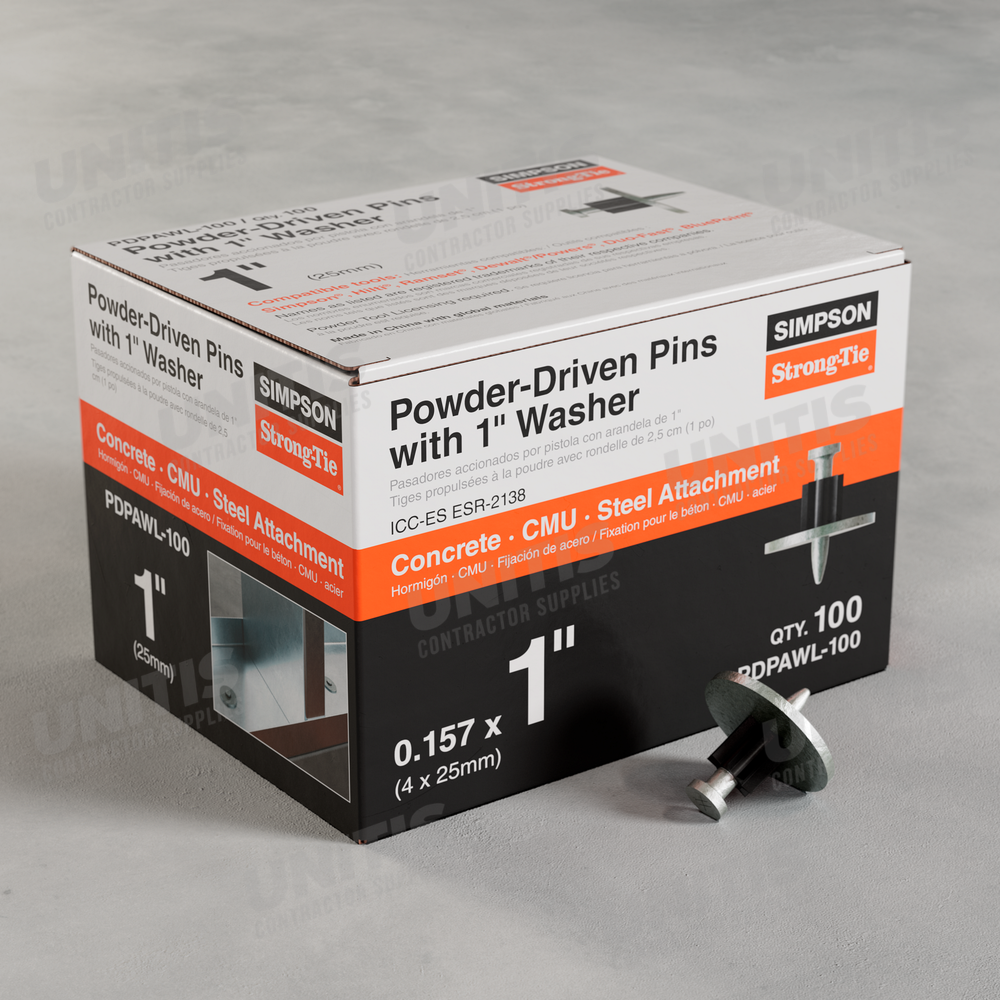

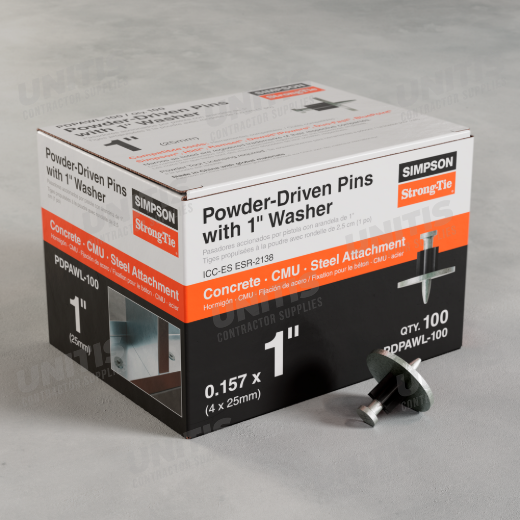

Simpson PDPAWL .157-" x 1-" Powder-Actuated Pin w/ 1-" Washer - 100/box

Mfr.: Simpson Strong-Tie
Item #: I042532
Mfr. #: PDPAWL-100
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $25.96
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

Simpson Strong-Tie offers a full range of gas- and powder-actuated tools and fasteners designed to maximize jobsite productivity and operator comfort. The PDPAWL is a powder-actuated washered pin designed to fasten building components to concrete, steel and CMU. The PDPAWL consists of a hardened-steel PDPA pin preassembled with a 1-in. washer that provides additional bearing surface for enhanced upload resistance. The PDPAWL is designed for use with Simpson Strong-Tie powder-actuated tool systems as well as other common tools.
  • The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
  • Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
  • Compatible with Simpson Strong-Tie powder-actuated tool systems as well as other common tools
  • 0.300-in. head diameter / 0.157-in. shank diameter
  • 1-in. zinc-plated washer
  • Mechanically galvanized carbon-steel pin

Features

  • The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
  • Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
  • Compatible with Simpson Strong-Tie powder-actuated tool systems as well as other common tools
  • 0.300-in. head diameter / 0.157-in. shank diameter
  • 1-in. zinc-plated washer
  • Mechanically galvanized carbon-steel pin

Specifications


Head Diameter0.300 inchShank Diameter0.157 inch
Washer Size1 inchWasher MaterialZinc-plated
Pin MaterialMechanically galvanized carbon steel
*
*
*
