Simpson PHC 10-3/8" 12-Gauge Panel Hoist Clip - 50/box

Mfr.: Simpson Strong-Tie
Item #: I100436
Mfr. #: PHC12
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $359.50
i h h

Description

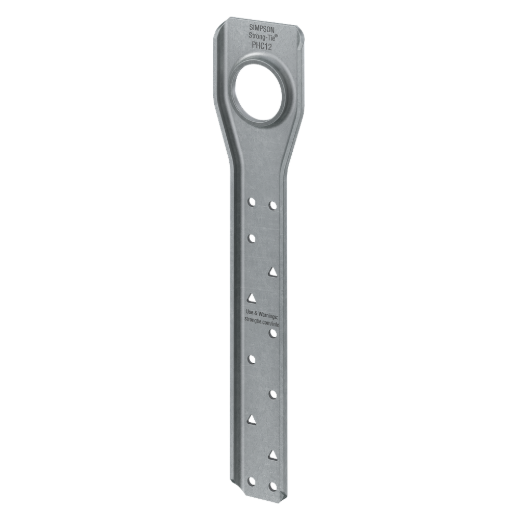

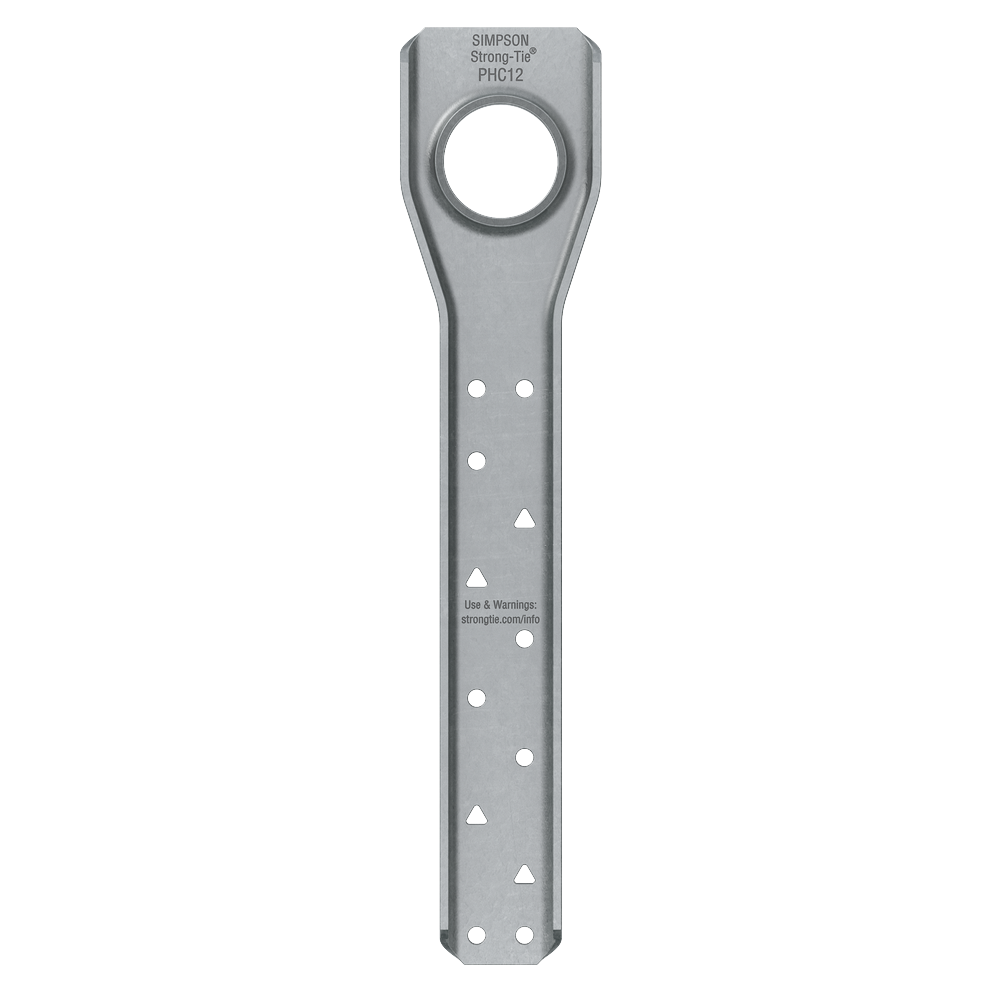

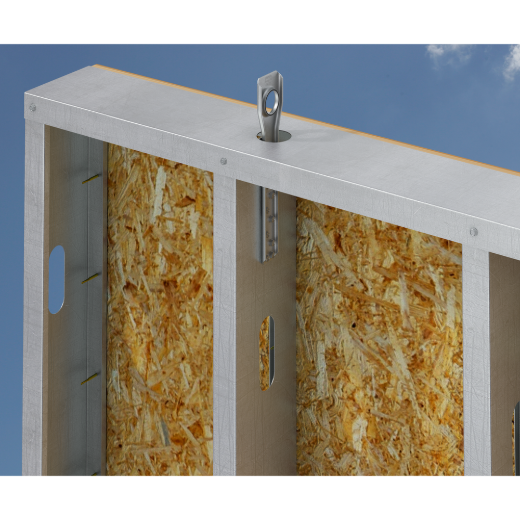

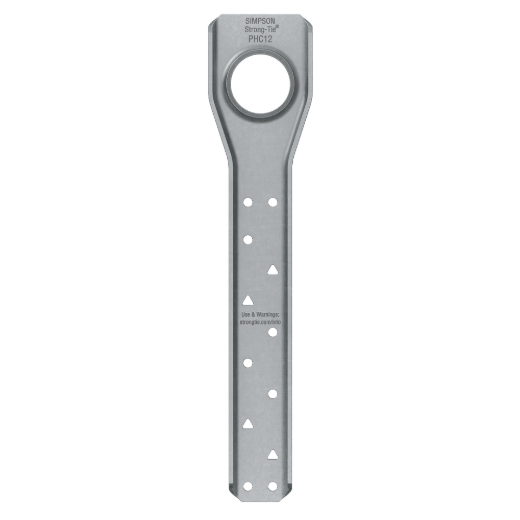

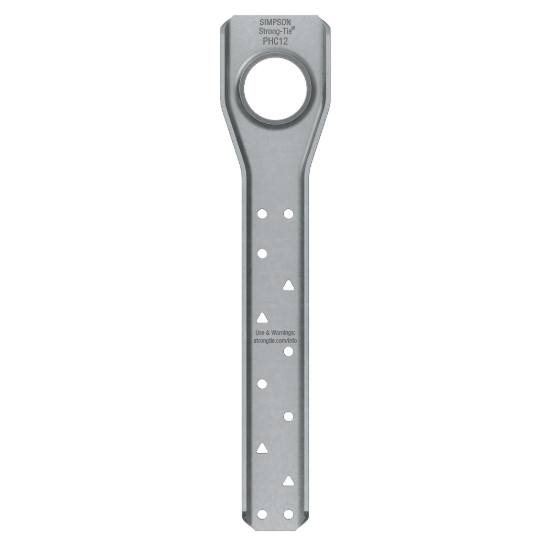

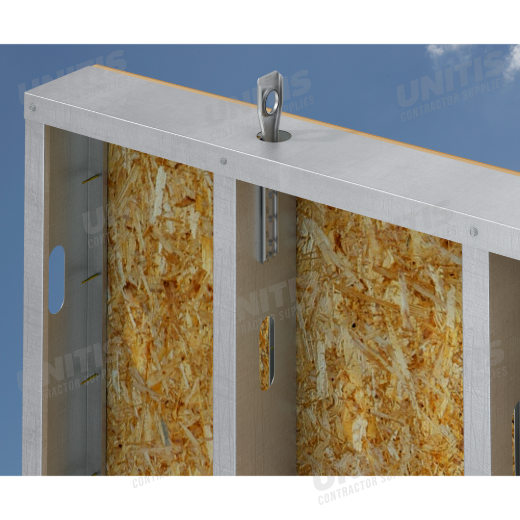

The PHC12 is a 12-gauge panel hoist clip designed for lifting heavy panels during construction. It features a small profile for easy installation through top tracks and rolled edges for increased strength.
  • Small profile for easy installation through top track
  • Rolled stiffener for increased strength
  • Rolled hoist-edge-hole for smooth mounting
  • Assembly tested for tension and panel pickup
  • Optional panel hoist clip cover available

Features

  • 97 mil (12 ga.) thickness, 50 ksi steel
  • Galvanized G90 finish
  • Dimensions: 1-3/8 in. width, 10-3/8 in. height
  • Packaging quantity: 50 per box
  • Screw pattern options for varying load needs

Specifications


Model No.PHC12Thickness (mil)97
Ga.12W (in.)1 3/8
H (in.)10 3/8CoatingMaterialZinc Galvanized, G90
Packaging Qty.50
*
*
*
