Simpson PPHD Sheathing-to-CFS Screw (Collated) - #10 x 1-3/4" T25, Quik Guard - 2000/box

Mfr.: Simpson Strong-Tie
Item #: I100441
Mfr. #: PPHDQ134S1016
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $591.37
i h h

Description

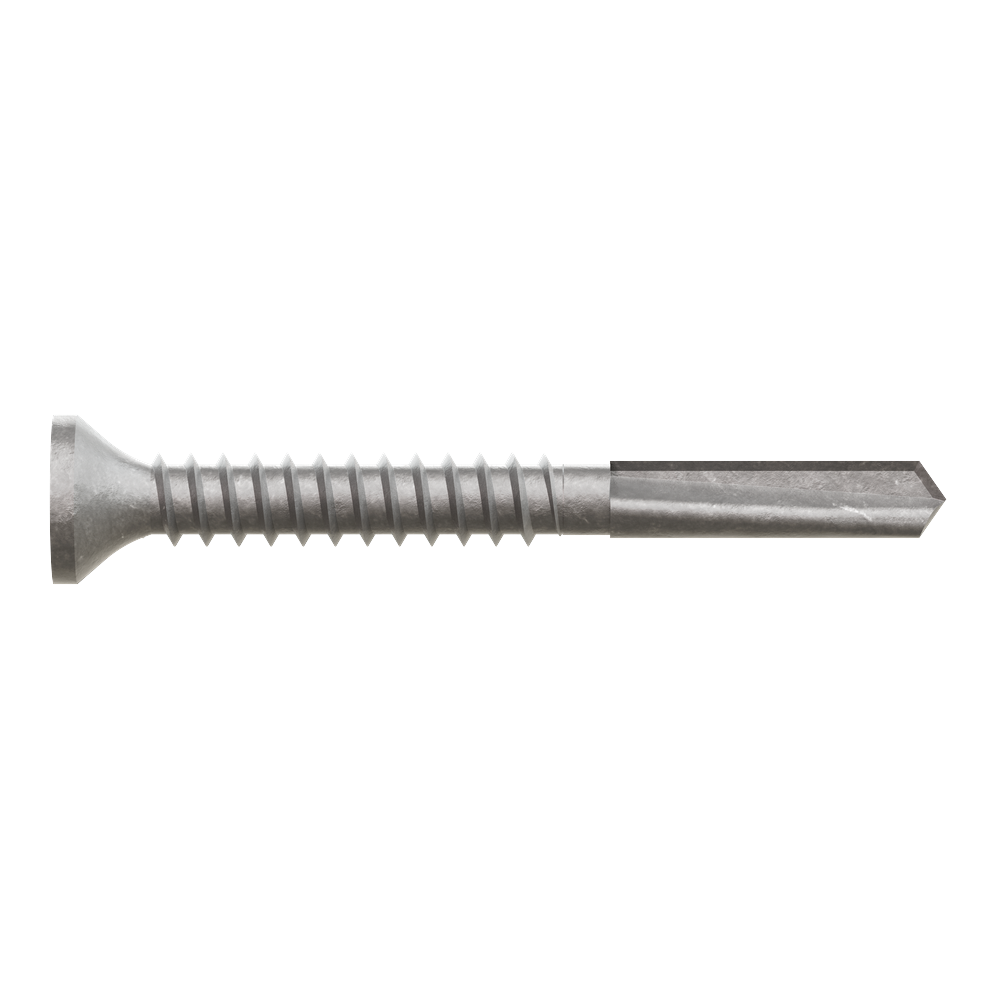

PPHDQ134S1016 is a #10 x 1-3/4 inch collated screw with Quik Guard coating, designed for sheathing-to-CFS applications in dry, low-corrosion environments. It features a T25 6-lobe drive, flat head, and fine threads.
  • Quik Guard coating for corrosion resistance
  • #10 screw size, 1-3/4 inch length
  • T25 6-lobe drive
  • 2000 screws per box
  • Compatible with Quik Drive PRO200SG2, PRO250G2, PRO300SG2

Features

  • Flat head with fine threads
  • Pilot point for easy starting
  • Max grip length 0.793 inches
  • Head diameter 0.323 inches
  • 16 threads per inch

Includes

  • 2000 screws
  • (2) T25 6-lobe driver bits (replacement bit model QRTX25-1.5)

Specifications


Model No.PPHDQ134S1016CoatingMaterialQuik Guard Coating
Screw Size#10Length (in.)1 3/4
Head Diameter (in.)0.323Drive TypeT25 6-Lobe
Head TypeFlat HeadThread TypeFine Threads
TPI16Max. Grip Length (in.)0.793
Point TypePilot PointPoint Size5
Compatible ToolsQuik Drive PRO200SG2, PRO250G2, PRO300SG2Packaging Qty.2000
*
*
*
