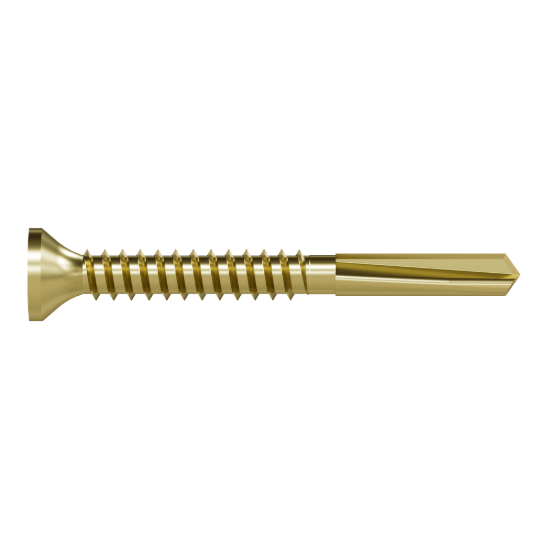

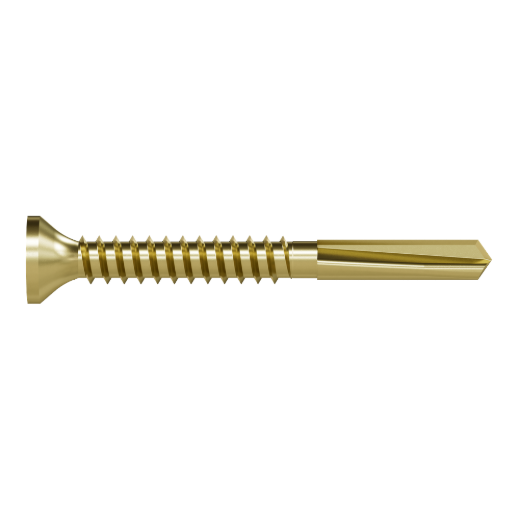

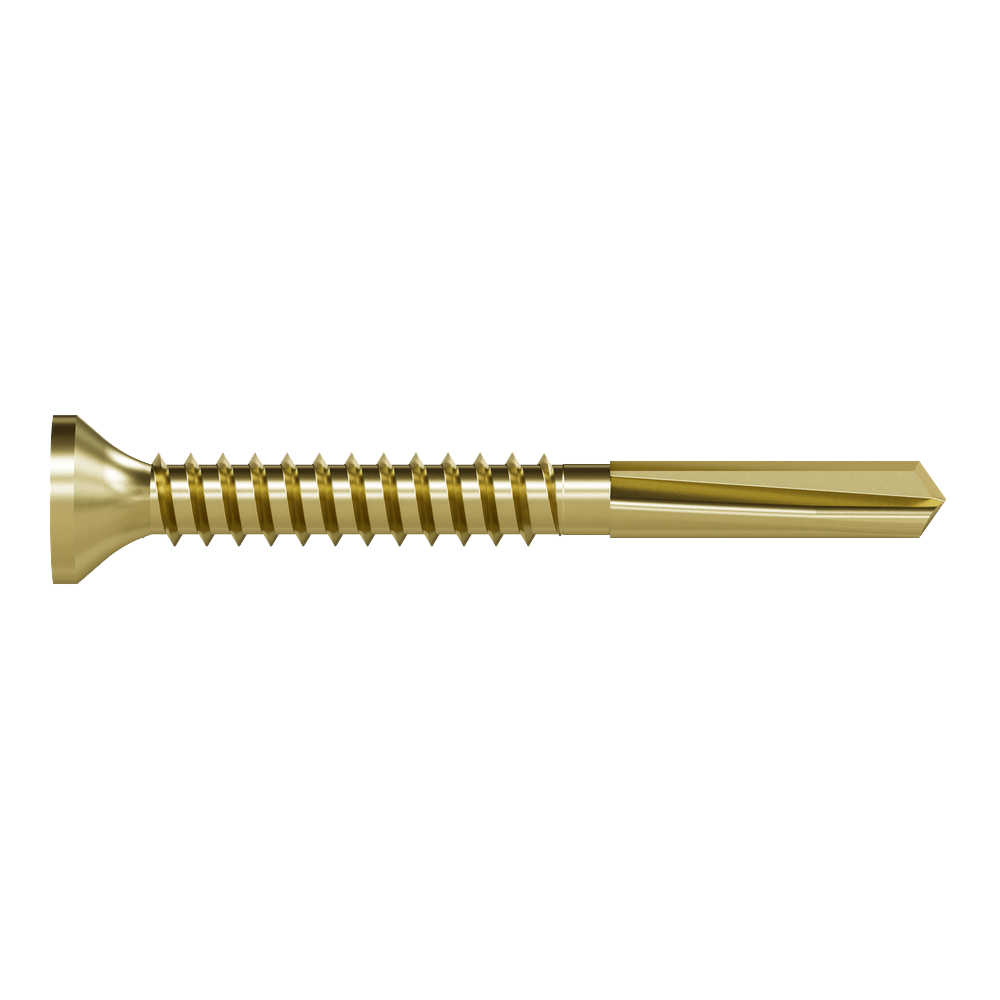

Simpson PPHD Sheathing-to-CFS Screw (Collated) - #10 x 1-3/4" T25, Yellow Zinc - 2000/box

Mfr.: Simpson Strong-Tie
Item #: I100438
Mfr. #: PPHD134S1016
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $404.03
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

Yellow zinc coated #10 x 1-3/4 inch collated screw with T25 6-lobe drive, designed for sheathing-to-CFS connections in dry, interior, noncorrosive environments.
  • #10 screw size, 1-3/4 inch length
  • Yellow zinc coating for dry service
  • T25 6-lobe recess for secure drive
  • Pilot point #5 for easy drilling
  • 2000-count package

Features

  • Designed for use in dry service, low-corrosion environments and some fire-rated sheathing
  • Compatible with Quik Drive PRO200SG2, PRO250G2, PRO300SG2 auto-feed screw driving systems
  • Maximum thickness two layers of 12 ga. (0.218 inch total)
  • Recommended wood panel sheathing thickness: 1-1/8 inch

Includes

  • 2000 screws
  • (2) T25 6-lobe driver bits (replacement bit model QRTX25-1.5)

Specifications


Model No.PPHD134S1016CoatingMaterialYellow-Zinc Coated
Screw Size#10Length (in.)1 3/4
Head Diameter (in.)0.323Drive TypeT25 6-Lobe
Head TypeFlat HeadThread TypeFine Threads
TPI16Max. Grip Length (in.)0.793
Point TypePilot PointPoint Size5
Compatible ToolsQuik Drive PRO200SG2, Quik Drive PRO250G2, QuikPackaging Qty.2000
*
*
*
