  • Simpson PPHD Sheathing-to-CFS Screw (Collated) - #8 x 1-15/16" T25, Quik Guard - 2000/box

Simpson PPHD Sheathing-to-CFS Screw (Collated) - #8 x 1-15/16" T25, Quik Guard - 2000/box

Mfr.: Simpson Strong-Tie
Item #: I100440
Mfr. #: PPHDQ11516S0817
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $443.11
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

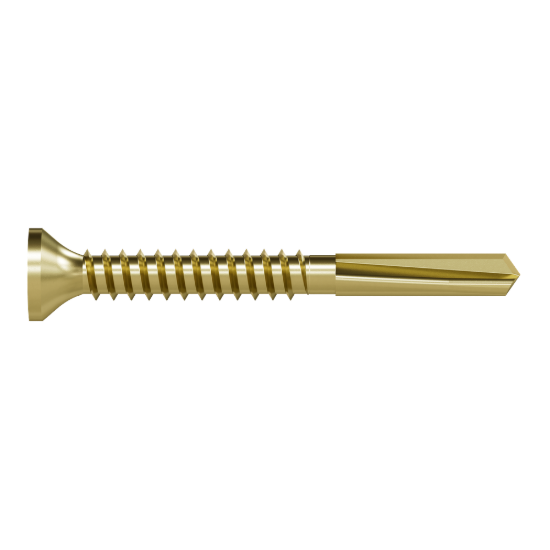

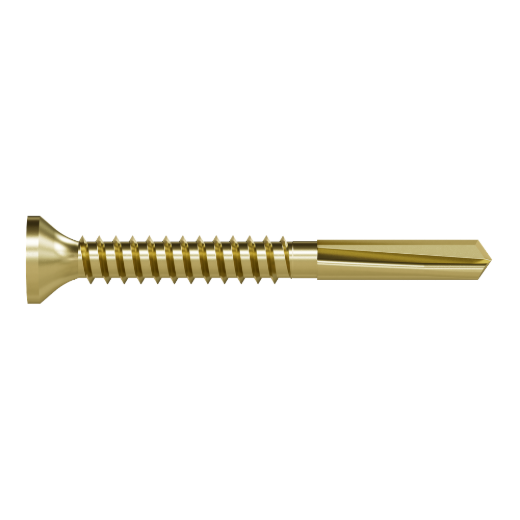

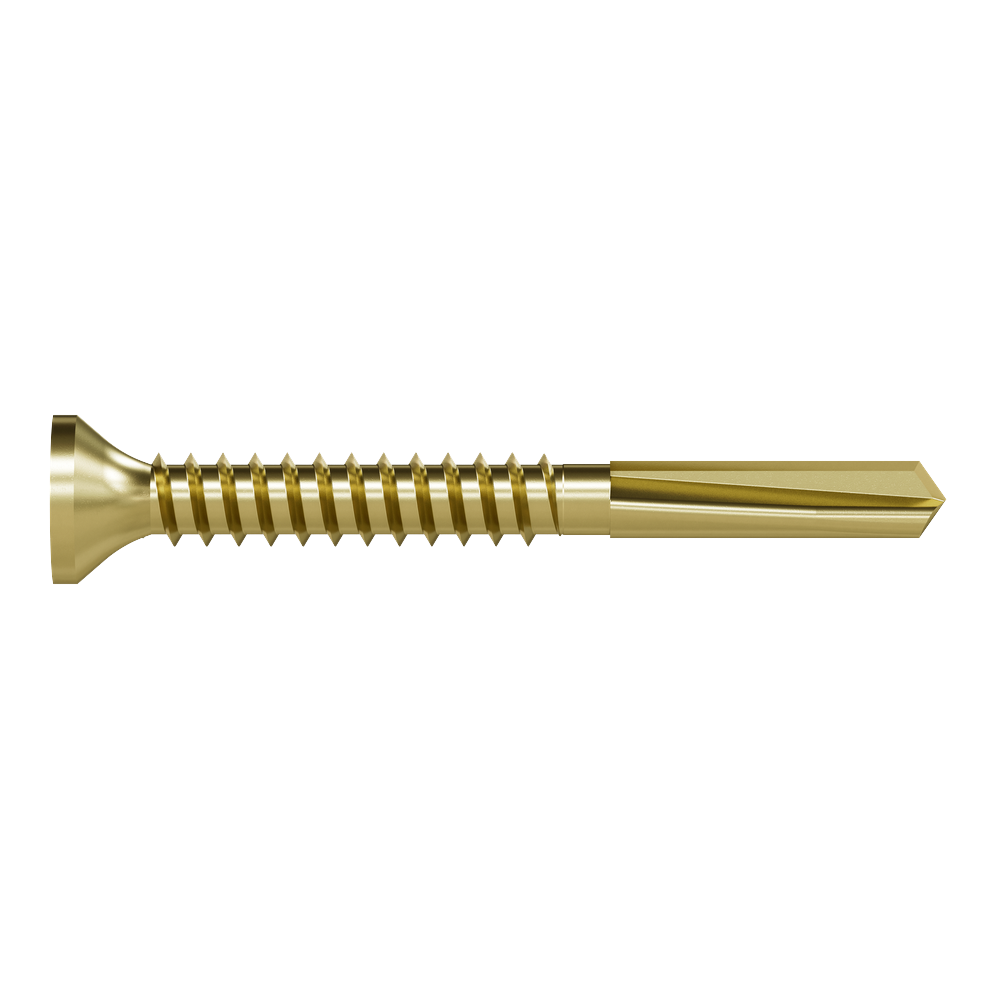

Collated sheathing-to-CFS screw with Quik Guard coating for dry, interior, noncorrosive environments. Designed for attaching wood panel sheathing to cold-formed steel.
  • #8 x 1-15/16 inch screw size
  • T25 6-lobe drive
  • Quik Guard coating
  • 2000-count package

Features

  • Flat head with buttress threads
  • Pilot point for easy starting
  • Compatible with Quik Drive PRO200SG2, PRO250G2, PRO300SG2
  • Maximum thickness two layers of 18 ga. (0.100 inch total)

Includes

  • (2) T25 6-lobe driver bits (replacement bit model QRTX25-1.5)

Specifications


Model No.PPHDQ11516S0817CoatingMaterialQuik Guard Coating
Screw Size#8Length (in.)1 15/16
Head Diameter (in.)0.323Drive TypeT25 6-Lobe
Head TypeFlat HeadThread TypeButtress Threads
TPI17Max. Grip Length (in.)1.034
Point TypePilot PointPoint Size5
Compatible ToolsQuik Drive PRO200SG2, Quik Drive PRO250G2, Quik DrPackaging Qty.2000
*
*
*
