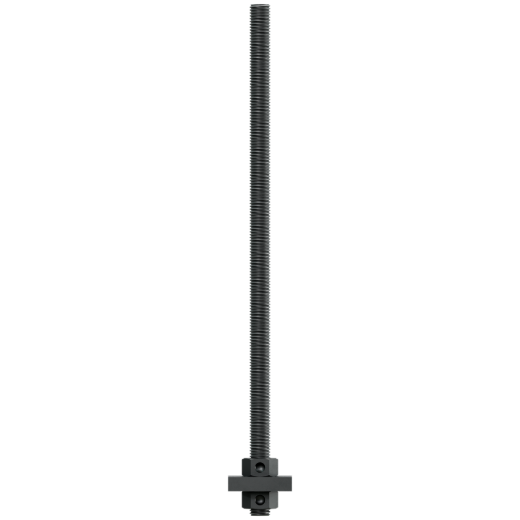

Simpson PAB 3/4" x 18" HDG Pre-Assembled Anchor Bolt w/ Washer

Mfr.: Simpson Strong-Tie
Item #: I093364
Mfr. #: PAB6-18-HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $59.00
i h h

Description

Pre-assembled anchor bolt with plate washer and hex nuts, ideal for high-tension-load applications such as rod systems and shearwalls. Hot-dip galvanized for corrosion resistance.
  • Diameter: 3/4 inch
  • Length: 18 inch
  • Finish: HDG
  • Pre-assembled with plate washer and two hex nuts

Features

  • Available in diameters from 1/2 inch to 1-1/4 inch and lengths from 12 inch to 36 inch in 6 inch increments
  • Available in standard and high-strength steel
  • Head stamp contains No Equal sign, diameter designation, and 'H' on high-strength rods
  • Plate washer designed to develop bolt capacity

Includes

  • 1 pre-assembled anchor bolt with plate washer and two hex nuts

Specifications


Diameter3/4 inchLength18 inch
FinishHDGMaterialStandard Steel (ASTM F1554 Grade 36, A36 or A307;
InstallationChase threads on HDG PABs for standard nuts or cou
Products specifications
Anchor Diameter 3/4 in
Anchor Type Cast-In-Place
Code Listing ASTM F1554 Grade 36; HDG per ASTM A153
Country of Origin Varies (subject to change)
Finish / Coating Hot-Dip Galvanized
Head Style Pre-Assembled with Washer & Nut
Material Carbon Steel
Overall Length 18 in
*
*
*
