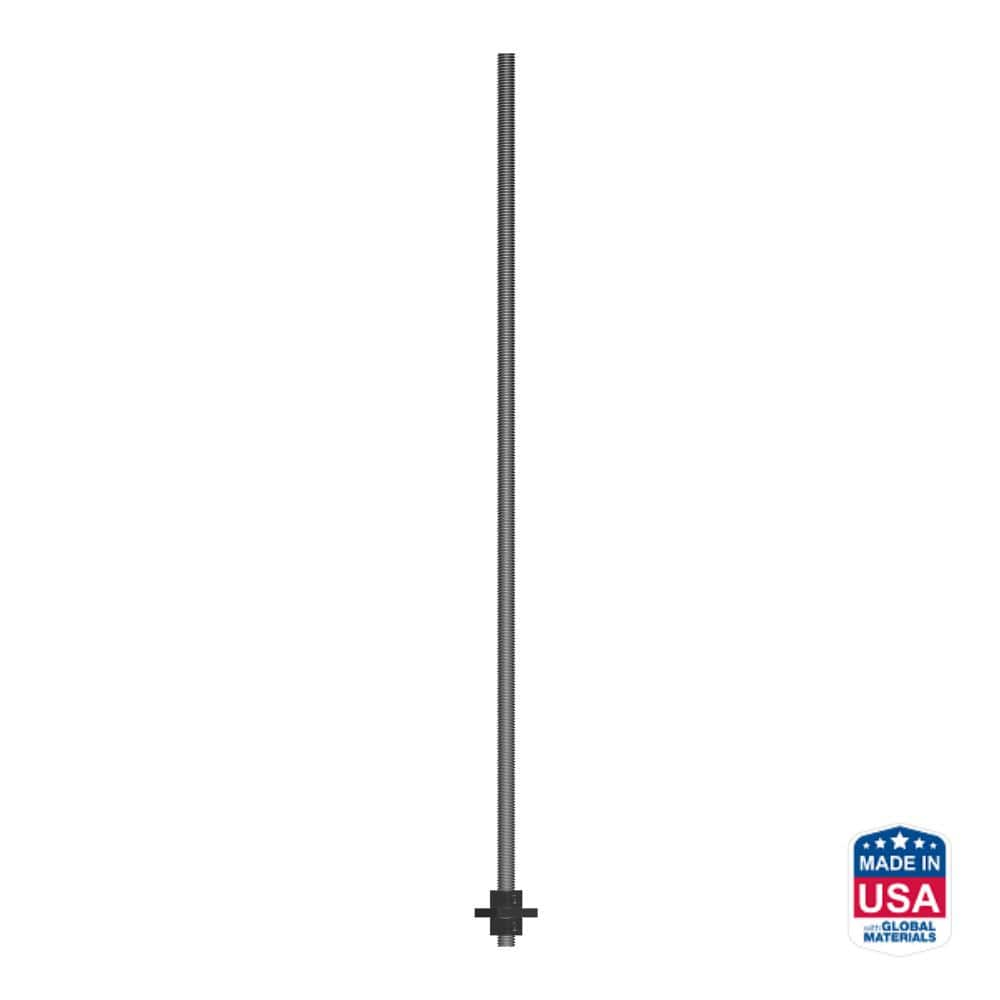

Simpson Preassembled Anchor Bolt 1/2 inch x 24

Mfr.: Simpson Strong-Tie
Item #: I093340
Mfr. #: PAB4-24
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $25.54
i h h

Description

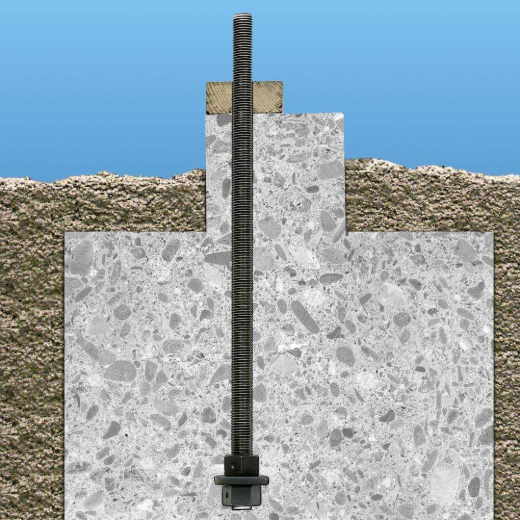

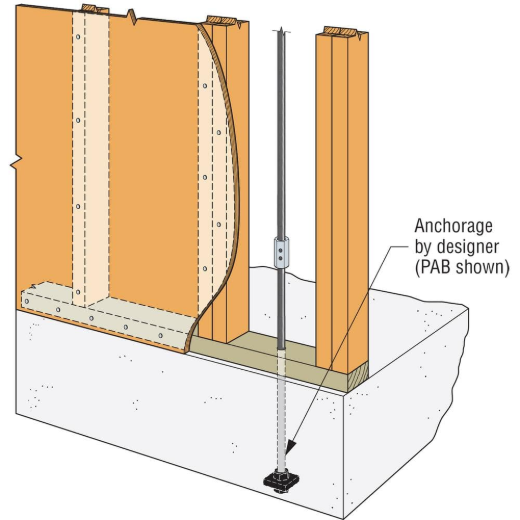

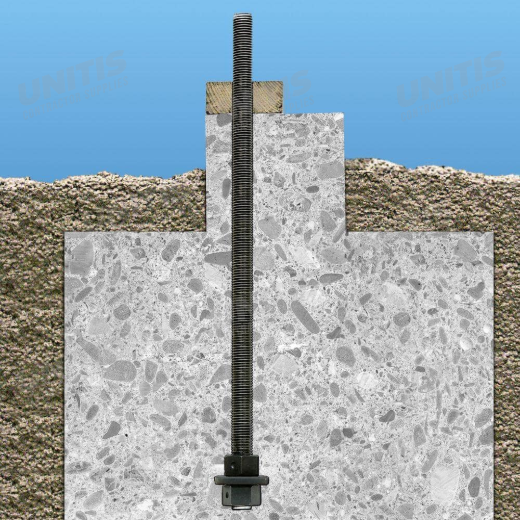

The Simpson Strong-Tie PAB4-24 is a versatile cast-in-place anchor bolt designed for high-tension-load applications, providing exceptional stability and strength. It is ideal for use in rod systems and shearwalls, ensuring reliable performance in demanding construction environments. This preassembled anchor bolt simplifies installation, saving time and effort while offering robust anchoring capabilities.
  • High-Tension Load Capacity
  • Preassembled for Convenience

Features

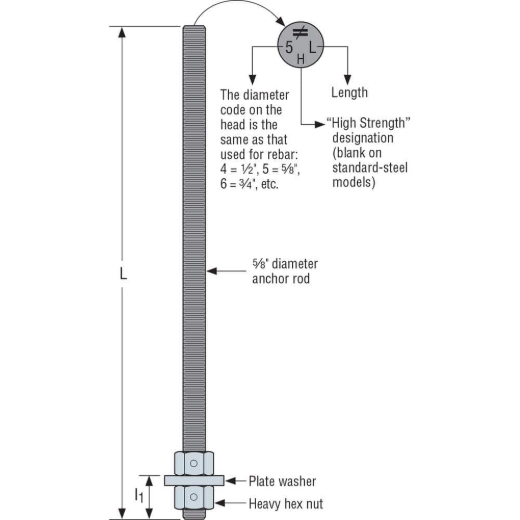

  • Features a plate washer at the embedded end, sandwiched between two fixed hex nuts.
  • Includes a head stamp for easy identification after the pour.
  • Available in standard and high-strength steel options.

Includes

  • 1/2 inch x 24 inch Preassembled Anchor Bolt
  • Plate washer
  • Two fixed hex nuts
Products specifications
rod diameter 1/2 inch
rod length 24 inch
material ASTM F1554 Grade 36 steel
finish Standard Steel (or HDG for PAB4-24-HDG)
*
*
*
