Simpson PAB 1-1/4" x 24" Pre-Assembled Anchor Bolt w/ Washer

Mfr.: Simpson Strong-Tie
Item #: I093326
Mfr. #: PAB10-24
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $118.00
i h h

Description

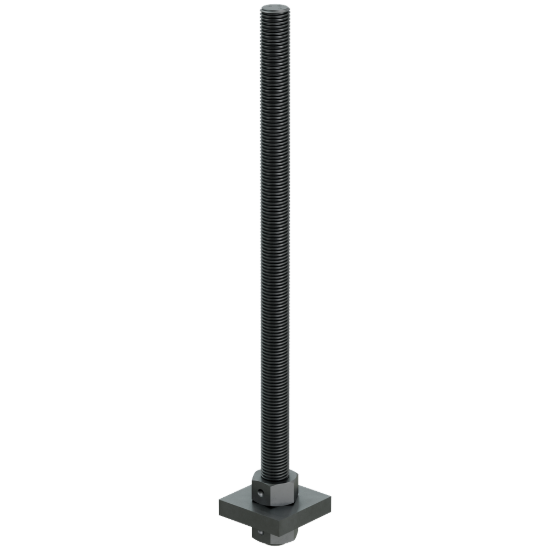

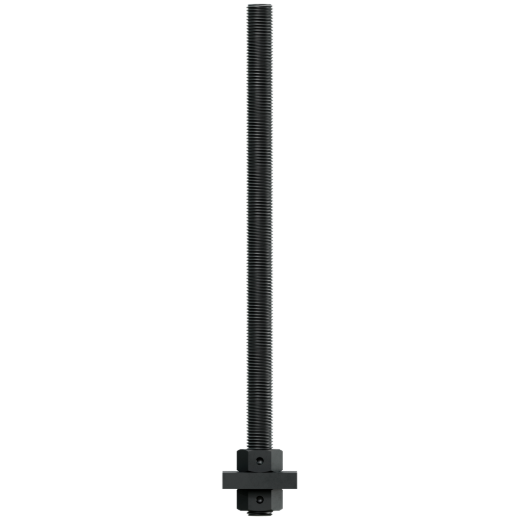

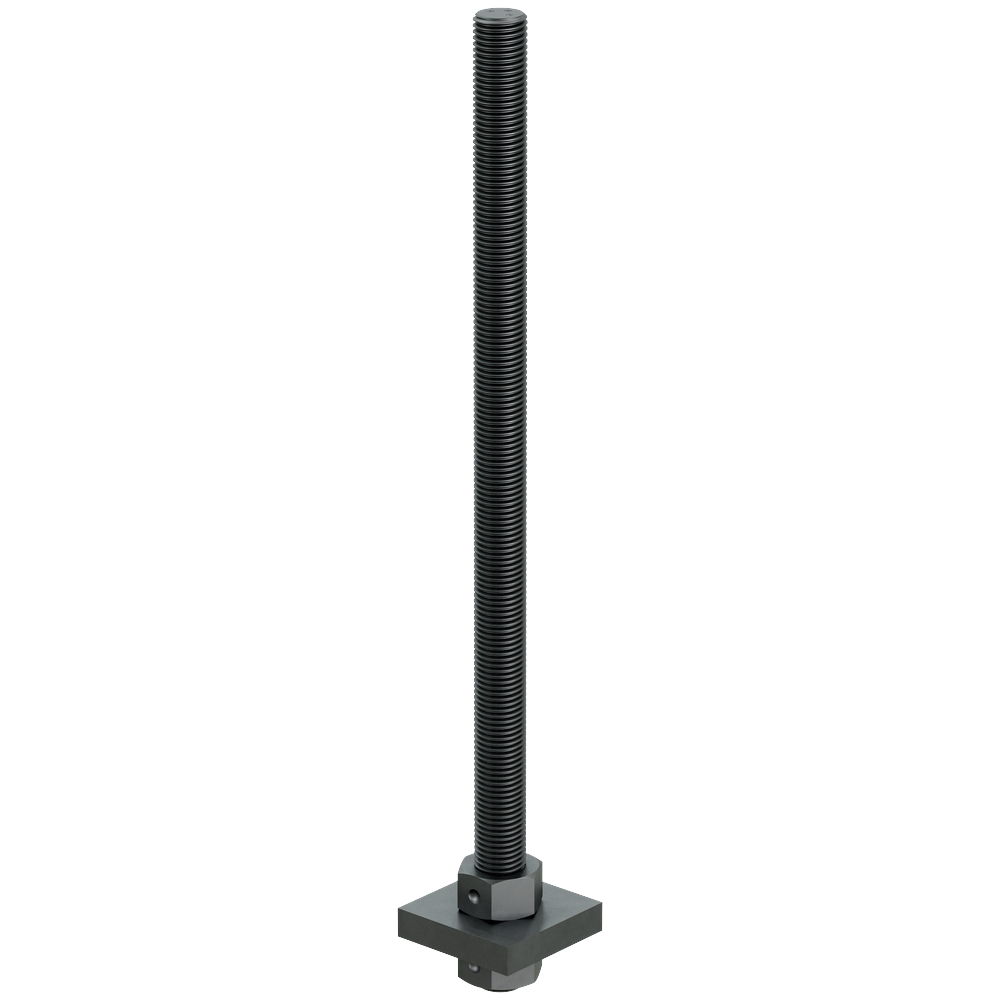

The Simpson Strong-Tie PAB anchor bolt is a versatile cast-in-place anchor bolt ideal for high-tension-load applications, such as rod systems and shearwalls. It features a plate washer at the embedded end, sandwiched between two fixed hex nuts. The PAB also has a head stamp for easy identification after the pour.
  • Available in diameters from 1/2 in. to 1-1/4 in. and lengths from 12 in. to 36 in. (in 6 in. increments)
  • Head stamp contains the Simpson Strong-Tie No Equal sign and diameter designation
  • Rod diameter: 1-1/4 in.
  • Rod length: 24 in.
  • Material: Steel - ASTM F1554 Grade 36, A36 or A307; Fu = 58 ksi

Features

  • Available in diameters from 1/2 in. to 1-1/4 in. and lengths from 12 in. to 36 in. (in 6 in. increments)
  • Head stamp contains the Simpson Strong-Tie No Equal sign and diameter designation
  • Rod diameter: 1-1/4 in.
  • Rod length: 24 in.
  • Material: Steel - ASTM F1554 Grade 36, A36 or A307; Fu = 58 ksi

Specifications


Rod diameter1-1/4 inchRod length24 inch
MaterialSteel - ASTM F1554 Grade 36, A36 or A307; Fu = 58
Products specifications
Anchor Diameter 1-1/4 in
Anchor Type Cast-In-Place
Code Listing ASTM F1554 Grade 36
Country of Origin Varies (subject to change)
Finish / Coating Zinc Plated
Head Style Pre-Assembled with Washer & Nut
Material Carbon Steel
Overall Length 24 in
*
*
*
