  • Simpson PTRHA Powder-Actuated Threaded Rod Hanger for 1/4-" Threaded Rod - 50/box

Simpson PTRHA Powder-Actuated Threaded Rod Hanger for 1/4-" Threaded Rod - 50/box

Mfr.: Simpson Strong-Tie
Item #: I100443
Mfr. #: PTRHA4-131
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $68.56
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

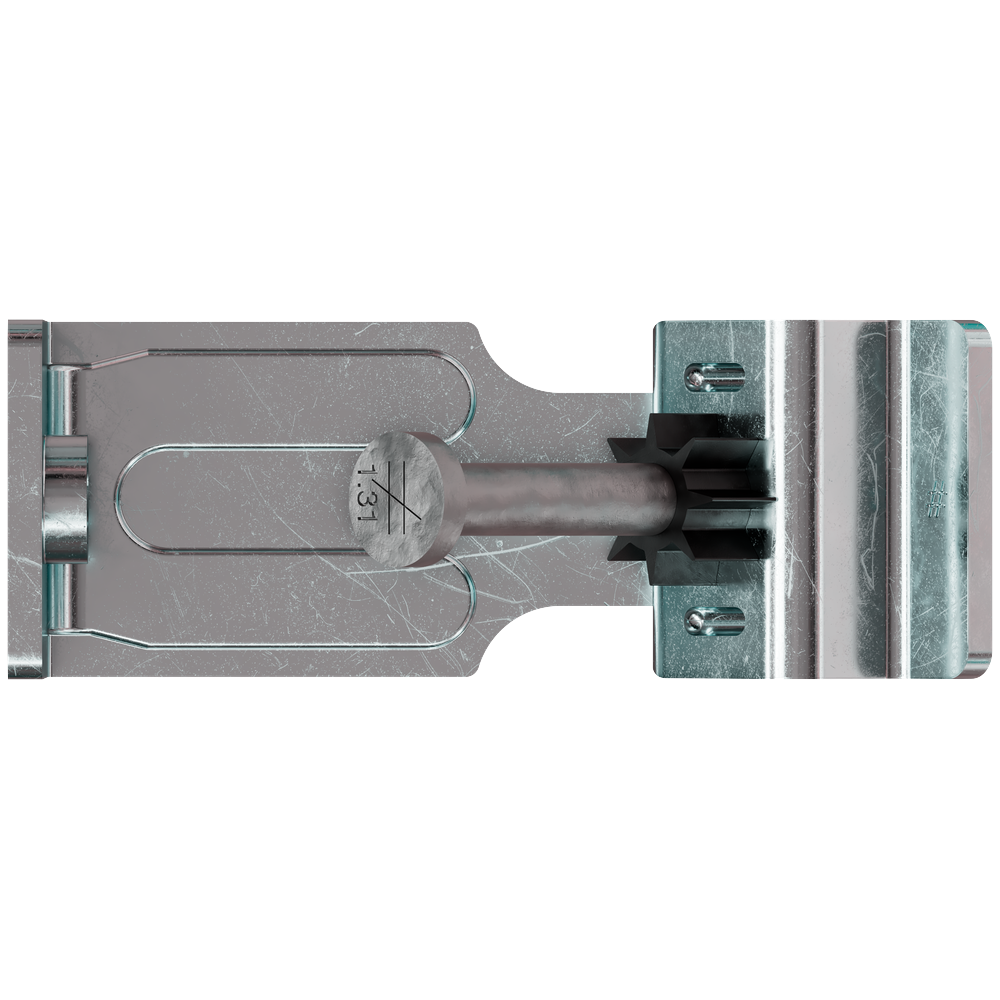

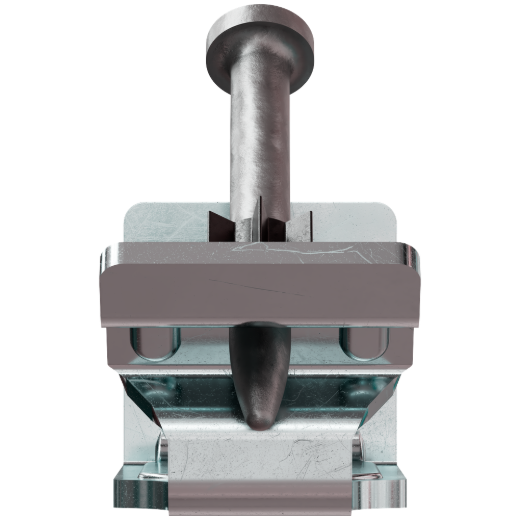

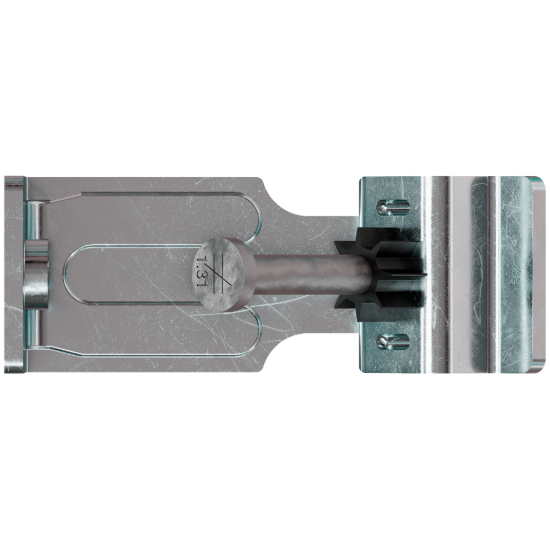

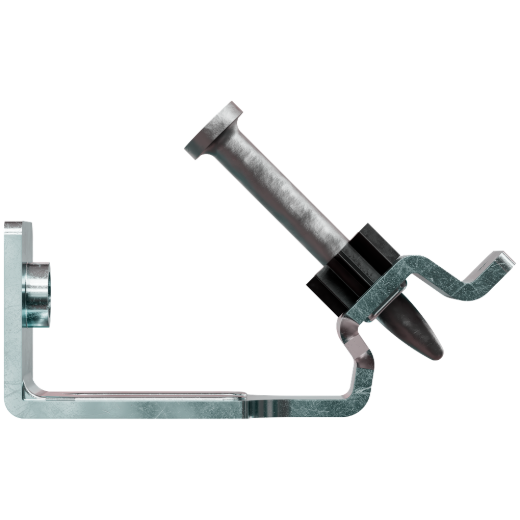

Simpson Strong-Tie offers a full range of gas- and powder-actuated tools and fasteners designed to maximize jobsite productivity and operator comfort. The PTRHA is powder-actuated assembly designed to attach threaded rod to concrete. The PTRHA consists of a 1-5/16 in. x 0.157-in. shank fastener attached to a 14-ga. threaded rod clip. The PTRHA is compatible with Simpson Strong-Tie powder-actuated tool systems as well as other common tools.
  • The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
  • Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469

Features

  • The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
  • Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
  • 0.300-in. pin head diameter
  • 0.157-in. pin shank diameter
  • 1-5/16 in. pin length
  • Accepts 1/4-in. -20 threaded rod

Specifications


Pin Head Diameter0.300 inchPin Shank Diameter0.157 inch
Pin Length1-5/16 inchThreaded Rod Size1/4 inch -20
*
*
*
