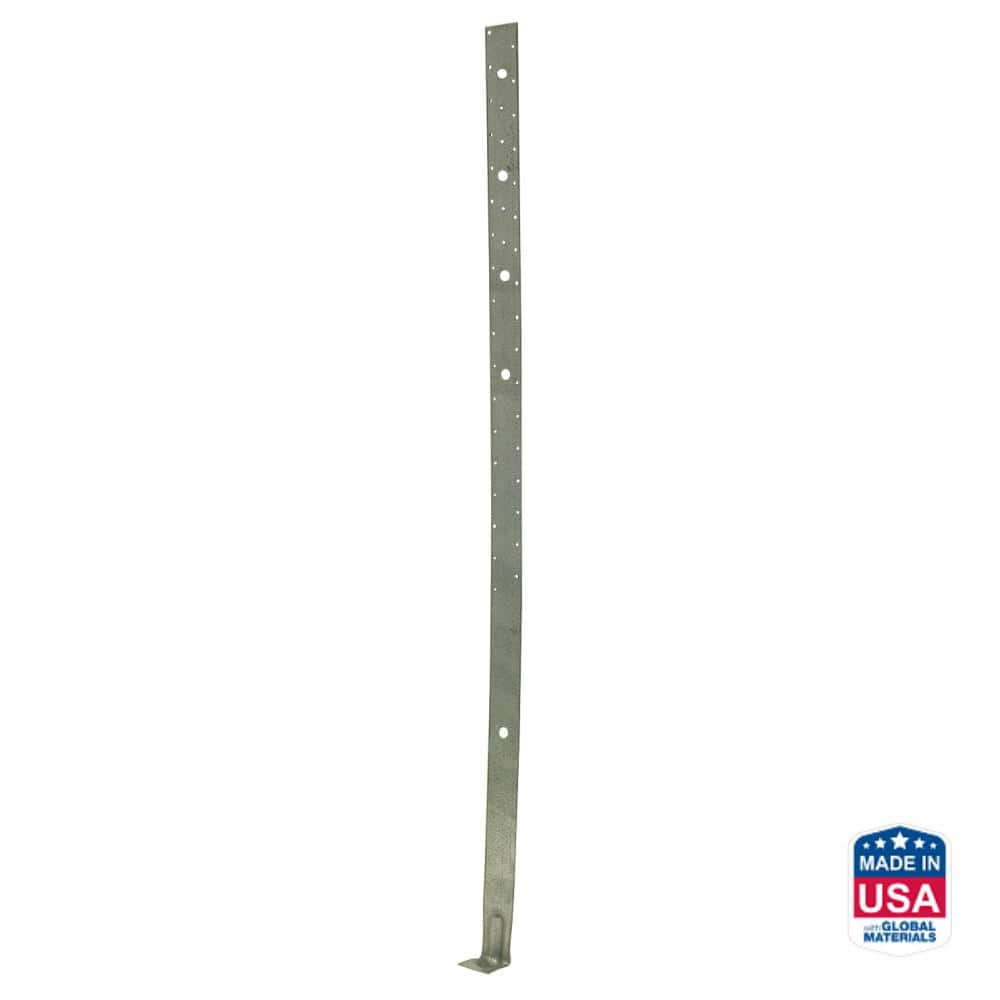

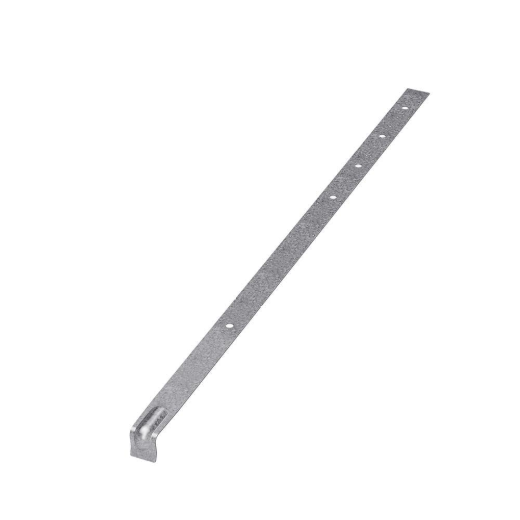

Simpson Purlin Anchor Strap Tie Holdown 51 in PA51

Mfr.: Simpson Strong-Tie
Item #: I090853
Mfr. #: PA51
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $23.19
i h h

Description

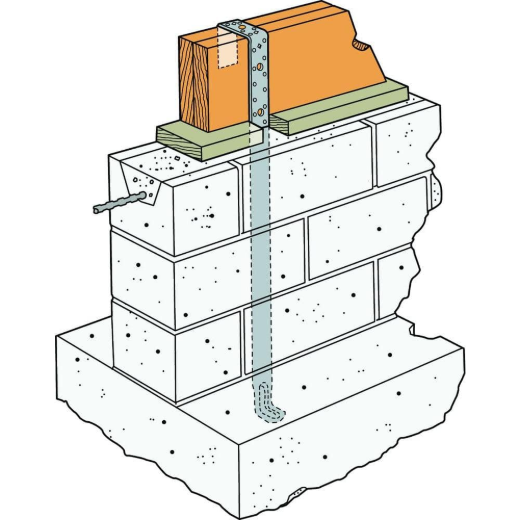

The Simpson Strong-Tie PA51 is a high-performance 51-inch purlin anchor and strap-tie holdown designed for secure wood-to-concrete and wood-to-masonry connections. This versatile connector ensures a continuous load path by transferring uplift and lateral forces from roof or wall framing into the foundation. Engineered for durability and ease of installation, it is an ideal solution for residential, commercial, and agricultural projects requiring code-compliant structural anchorage.
  • 12-Gauge Galvanized Steel
  • Dual Embedment Indicators

Features

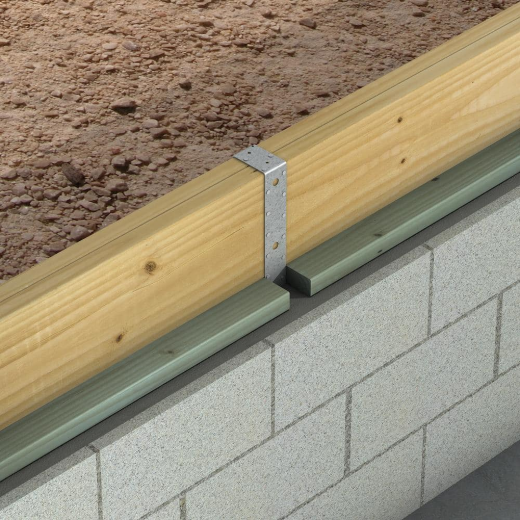

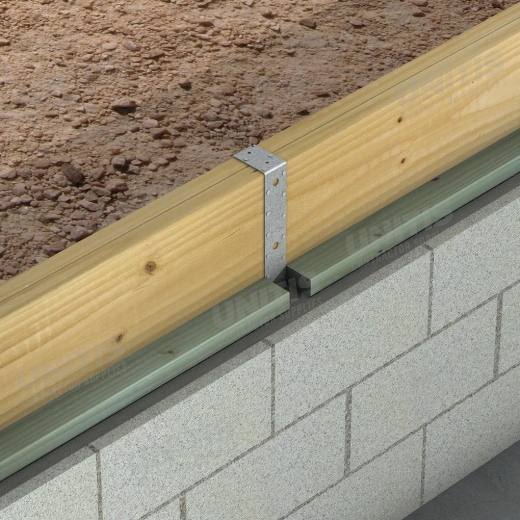

  • Optimized nailing pattern fits narrow faces of nominal 3x or double 2x wood members.
  • Dual-embedment lines provide visual indicators for proper installation depth in both concrete and masonry.
  • Strap can be bent one full cycle (90 vertical then horizontal) for flexible field installation.
  • Low-profile design minimizes hardware visibility in finished projects.
Products specifications
Model No. PA51
Length 51 inch
Width 2-1/16 inch
Thickness 12 Gauge
Material Steel
Finish G90 Galvanized
Min. Embedment 4 inch
Fasteners 10d or 16d Common Nails
*
*
*
