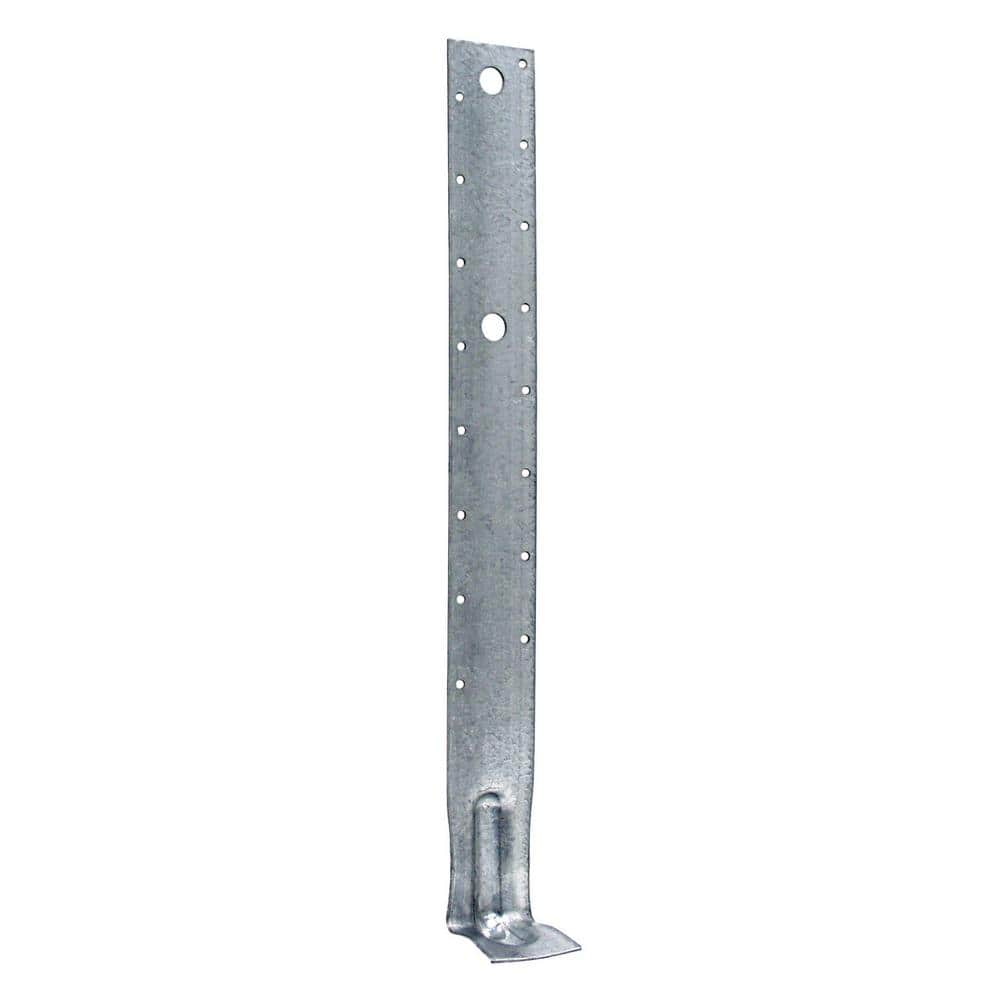

Simpson Purlin Anchor Zmax 18.5

Mfr.: Simpson Strong-Tie
Item #: I093315
Mfr. #: PA18Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $17.97
i h h

Description

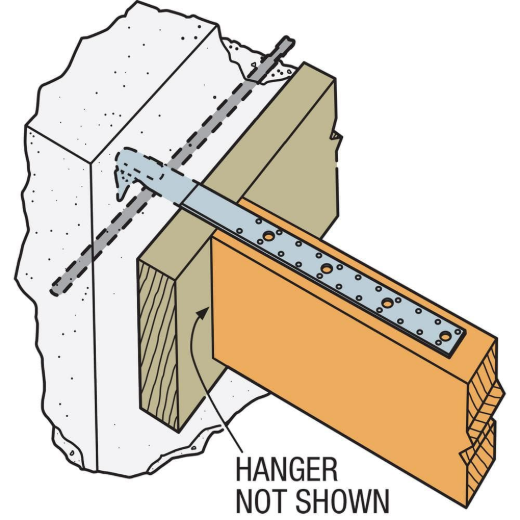

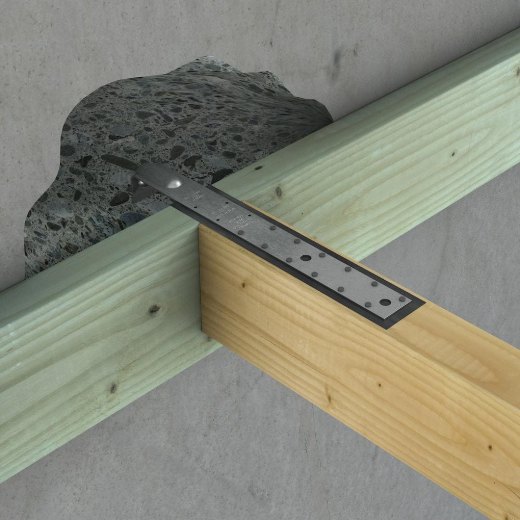

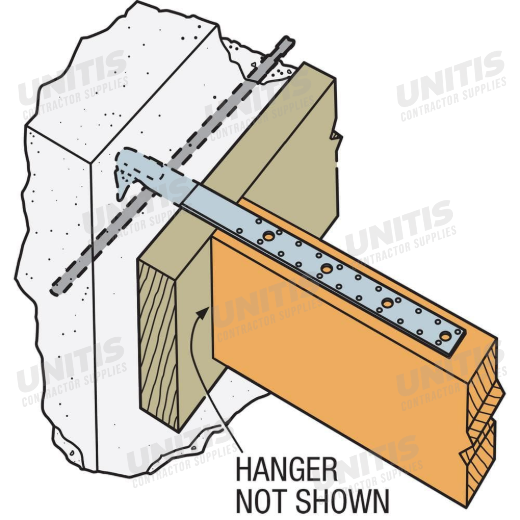

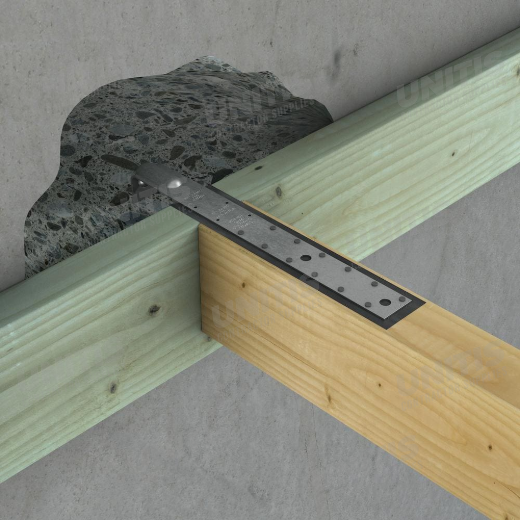

The Simpson Strong-Tie PA18Z Purlin Anchor offers a robust solution for wood-to-concrete and wood-to-masonry connections, fulfilling essential code requirements. It is expertly designed to secure roof purlins to concrete walls or to fasten studs to foundations as a strap-tie holdown. Featuring a dual-embedment line, this anchor ensures straightforward installation. Its low-profile design also minimizes visibility, making it a discreet yet effective structural component.
  • Wood-to-concrete and wood-to-masonry connections
  • Dual-embedment line for ease of installation

Features

  • Minimum embedment line indicators for both concrete and masonry installations.
  • Nailing pattern optimized for narrow face of nominal 3x or double 2x wood member.
  • Low design profile minimizes visibility.
  • ZMAX finish for enhanced corrosion resistance.
  • Compatible with treated lumber.

Includes

  • 1 Purlin Anchor
Products specifications
height 18.976 inch
width 2.0625 inch
depth 2.476 inch
material 12 gauge carbon steel
finish ZMAX coating
length 18-1/2 inch
gauge 12
*
*
*
