Simpson Quadruple 2X10 Face Mount Hanger

Mfr.: Simpson Strong-Tie
Item #: I091335
Mfr. #: HHUS210-4
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $88.38
i h h

Description

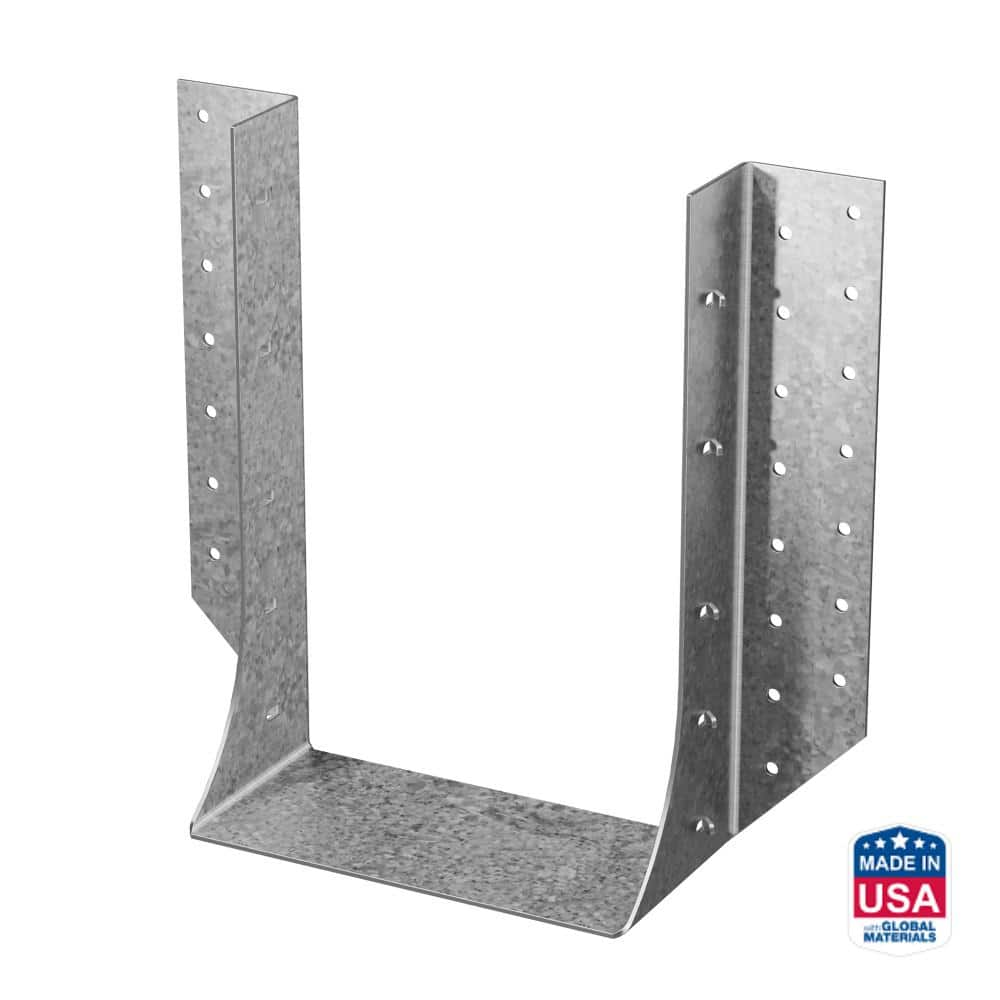

The Simpson Strong-Tie HHUS210-4 is a heavy-duty face-mount joist hanger designed specifically for quadruple 2x10 solid sawn lumber or plated trusses. This extra-heavy U-shaped hanger is engineered for high-load applications, providing exceptional structural support for floor and ceiling joists in both residential and commercial construction. Its double-shear nailing design distributes the load more efficiently, resulting in higher strength and a faster installation process using fewer fasteners.
  • G90 Galvanized Finish
  • Double-Shear Nailing Technology

Features

  • Value-engineered design carries high loads while remaining an economical solution for heavy framing.
  • Versatile installation capability allows the hanger to be installed after the beam is already secured in place.
  • Tested and code-compliant for reliability in demanding structural connections and deck construction.

Includes

  • HHUS210-4 Quadruple 2x10 Face Mount Hanger
Products specifications
Model No. HHUS210-4
Joist Size Quad 2x10
Material 14-Gauge Steel
Finish G90 Galvanized
Height 8-7/8 inch
Width 6-1/8 inch
Depth 3 inch
Mounting Type Face Mount
Fastener Type 16d Common Nails
*
*
*
