  • Simpson Quadruple 2X12 Face Mount Hanger HGUS212-4

Simpson Quadruple 2X12 Face Mount Hanger HGUS212-4

Mfr.: Simpson Strong-Tie
Item #: I091284
Mfr. #: HGUS212-4
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $142.37
i h h

Description

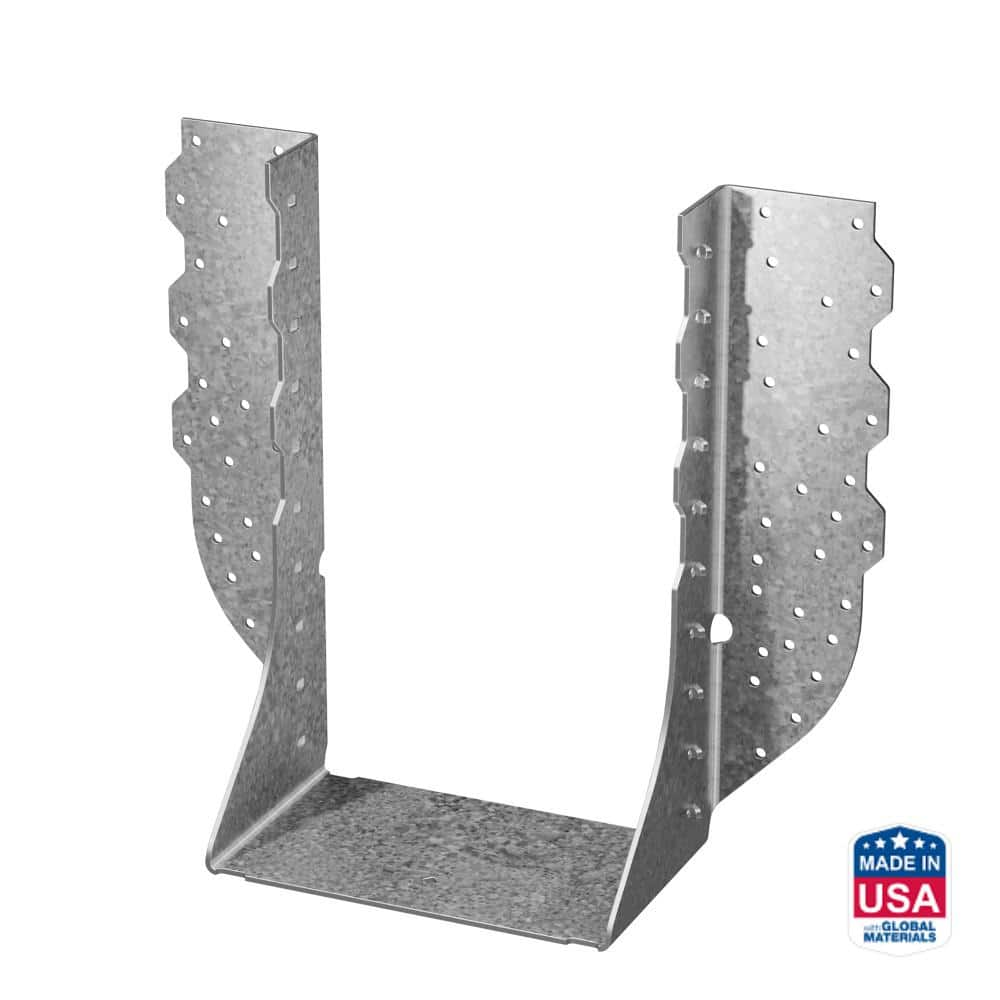

The Simpson Strong-Tie HGUS212-4 is a heavy-duty face-mount hanger designed to provide high-capacity support for quadruple 2x12 girders. It utilizes a patented double-shear nailing system that enhances structural strength by distributing loads across two points on each joist nail. This value-engineered connector is ideal for demanding residential and commercial construction applications requiring robust structural integrity.
  • 12-Gauge Steel Construction
  • Double-Shear Nailing Technology

Features

  • Patented double-shear nailing distributes loads through two points for increased strength.
  • Designed for installation after the beam is secured, providing on-site flexibility.
  • G90 galvanized finish offers superior corrosion protection for long-term durability.

Includes

  • HGUS212-4 Heavy Girder Hanger
Products specifications
Model No HGUS212-4
Material 12-Gauge Steel
Finish G90 Galvanized
Joist Size Quadruple 2x12
Width 6-9/16 inch
Height 10-5/8 inch
Mount Type Face Mount
Series HGUS Heavy Girder Hanger
*
*
*
