Simpson Quick-Install Column Base W/ Sds Screws

Mfr.: Simpson Strong-Tie
Item #: I090988
Mfr. #: CBSTQ66Z-SDS2
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $76.72
i h h

Description

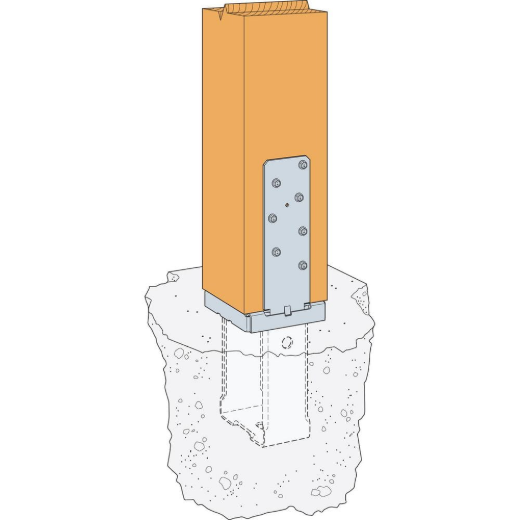

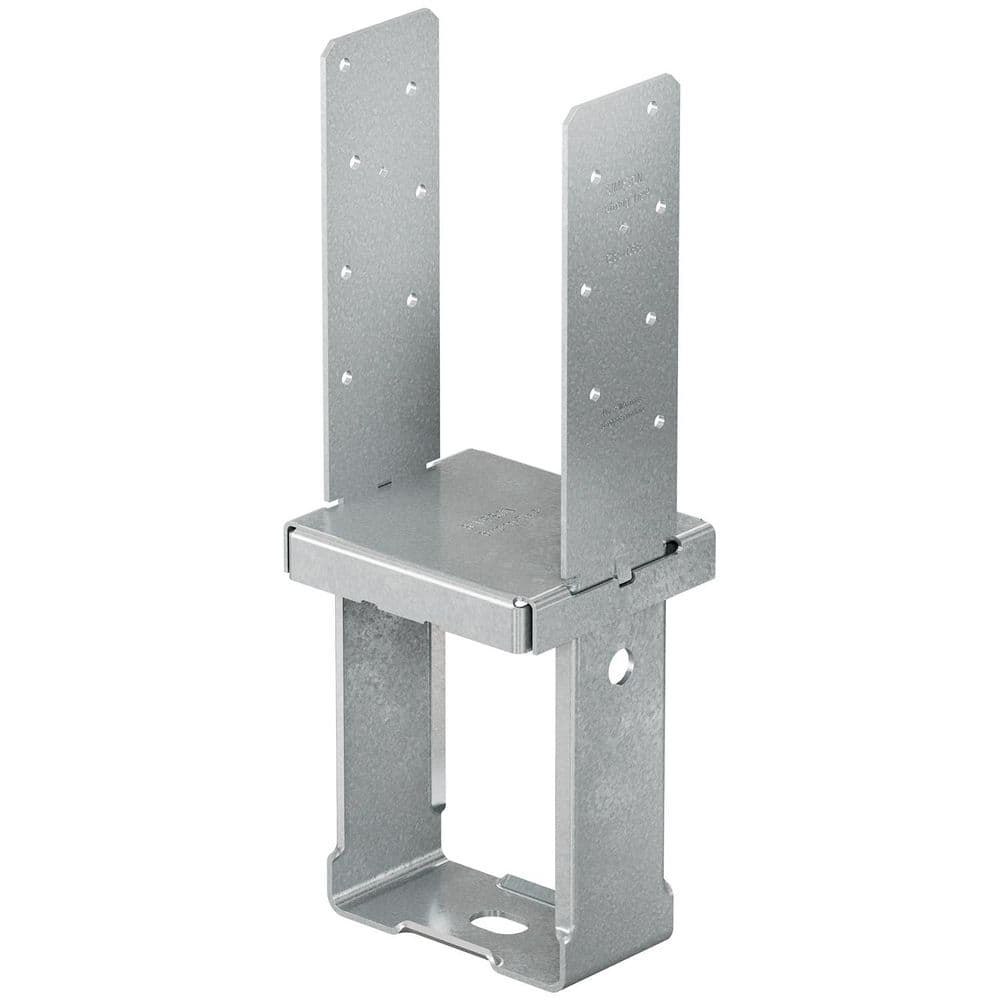

The Simpson Strong-Tie CBSTQ66Z-SDS2 is a high-performance, cast-in-place column base engineered to provide superior strength and stability for 6x6 wood posts. This quick-install standoff base features a 1-inch elevated design that meets building codes and protects posts from moisture-related rot and decay. Designed as a successor to the CBSQ series, it utilizes unique S-shaped bearing tabs to deliver higher load capacities for residential and light commercial structural connections.
  • ZMAX Galvanized Coating
  • S-Shaped Bearing Tabs

Features

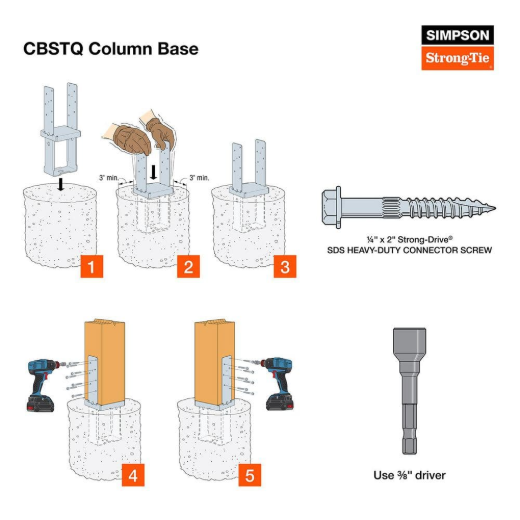

  • Code-required 1 inch standoff elevates the post above concrete to prevent water damage and rot.
  • Strong-Drive SDS Heavy-Duty Connector screws provide a greater wood net section area than traditional bolts.
  • High-download capacity engineered for critical structural connections in outdoor environments.

Includes

  • (14) 1/4 inch x 2 inch Strong-Drive SDS Heavy-Duty Connector Screws
Products specifications
Model No. CBSTQ66Z-SDS2
Post Size 6x6
Material Carbon Steel
Finish ZMAX Galvanized
Base Thickness 12 Gauge
Strap Thickness 10 Gauge
Width (W1) 5-1/2 inch
Width (W2) 5-1/2 inch
Height (H) 8-3/4 inch
Depth (D) 6-7/8 inch
Standoff Height 1 inch
Fasteners Required 14 SDS 1/4 inch x 2 inch
*
*
*
