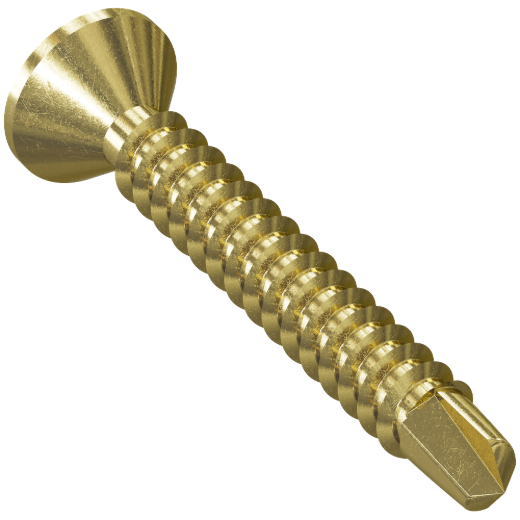

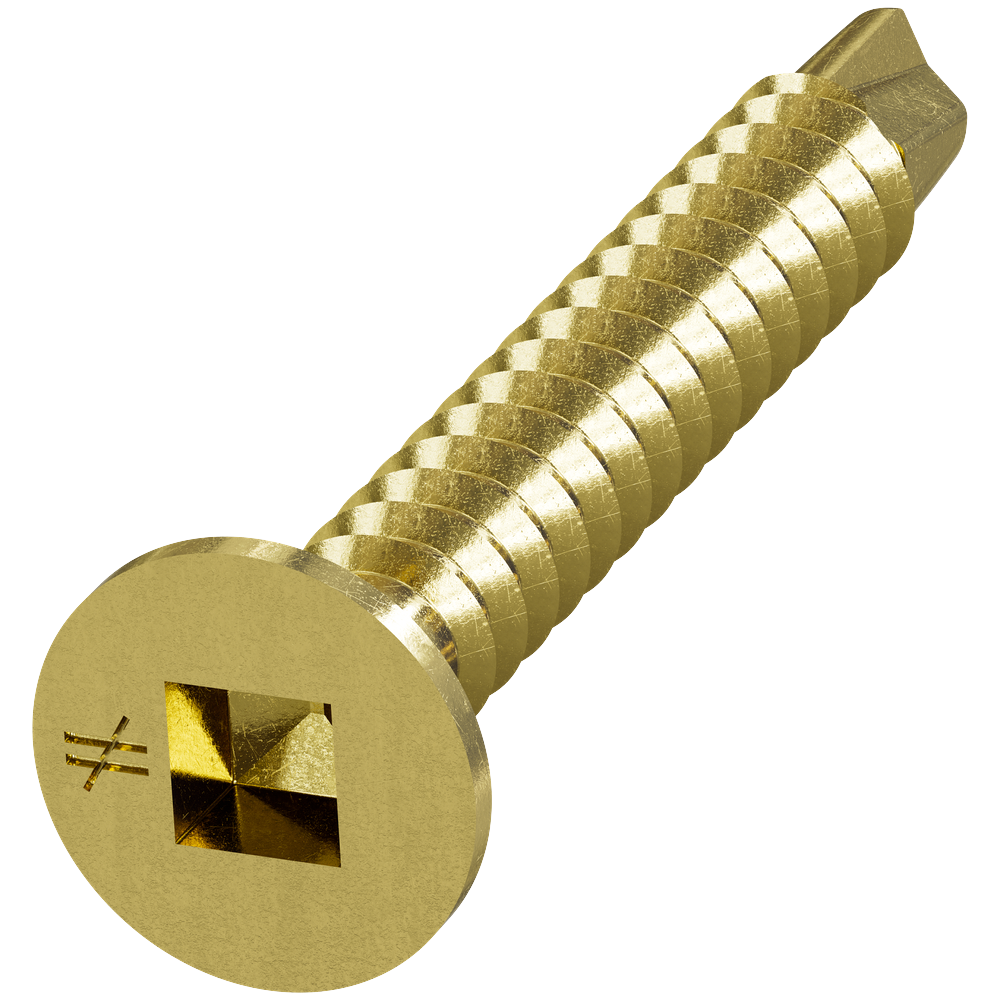

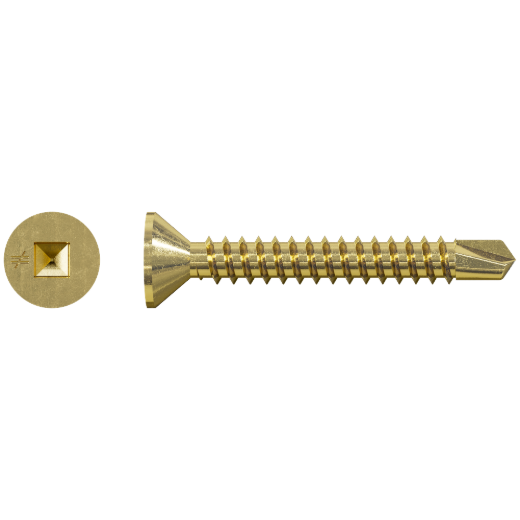

Simpson #8 x 1-1/4" Yellow-Zinc Dichromate Flat-Head Collated Screw (2,500-Qty)

Mfr.: Simpson Strong-Tie
Item #: I092981
Mfr. #: FHSD114S0818
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $226.18
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

Flat head yellow-zinc coated screw for wood or wood structural panel sheathing to cold-formed steel (max. steel thickness 3/16 inch). #2 square drive, drill point, 18 TPI, 0.310 inch head diameter.
  • Yellow-zinc dichromate coating for corrosion resistance
  • Flat head with nibs for easy countersinking
  • #2 square drive compatible with Quik Drive PRO200G2 and PRO200SG2
  • Drill point for self-drilling into steel up to 3/16 inch
  • 2500 screws per box

Features

  • Flat head yellow zinc fasteners have curved collation
  • #2 square drive for #8 (replacement bit BIT2S)
  • Use for wood or wood structural panel sheathing to cold-formed steel (recommended max. steel thickness: 3/16 inch)
  • #3 square drive for #10 (replacement bit BIT3S)
  • Type 410 stainless steel is coated for additional corrosion protection

Specifications


Model No.FHSD114S0818CoatingMaterialYellow-Zinc Coated
Screw Size#8Length (in.)1 1/4
Head Diameter (in.)0.310Drive Type#2 Square
Head TypeFlat HeadTPI18
Max. Grip Length (in.)0.858Point TypeDrill Point
Point Size2Compatible ToolsQuik Drive PRO200G2, Quik Drive PRO200SG2
Packaging Qty.2500
*
*
*
