Simpson Roof Truss Clip

Mfr.: Simpson Strong-Tie
Item #: I093961
Mfr. #: STC
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $1.00
i h h

Description

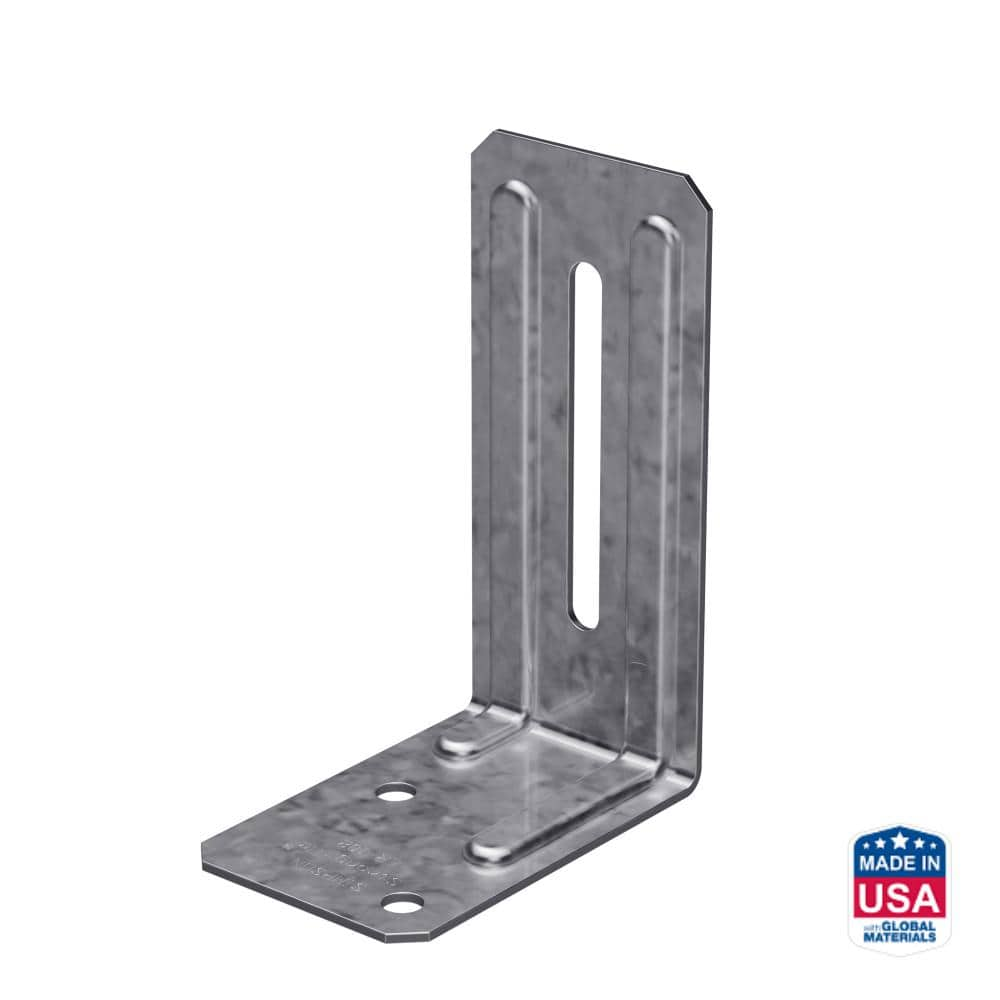

The Simpson Strong-Tie STC Roof Truss Clip is engineered for reliable alignment control between roof trusses and nonbearing walls. Crafted from durable 18-gauge galvanized steel, this clip ensures robust structural connections and promotes consistent, straight corners in construction projects. Its design allows for controlled vertical movement of the truss chord under load, minimizing stress on fasteners and contributing to long-term structural integrity. This versatile clip is an essential addition for both professional builders and DIY enthusiasts tackling light-duty to demanding applications.
  • 18-gauge galvanized steel construction

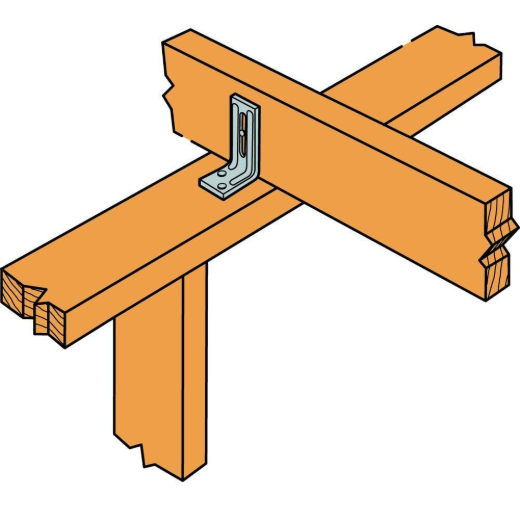

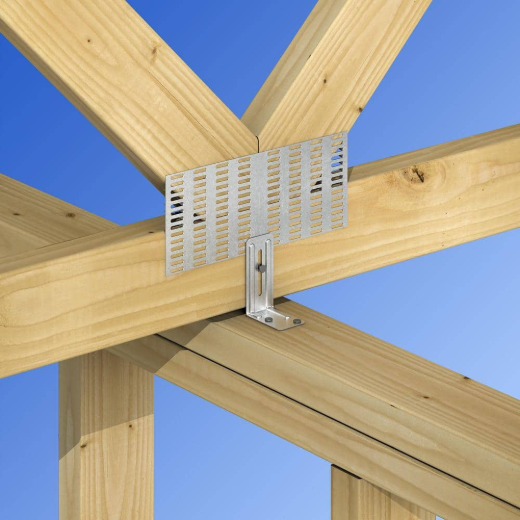

  • Provides alignment control between roof trusses and nonbearing walls

Features

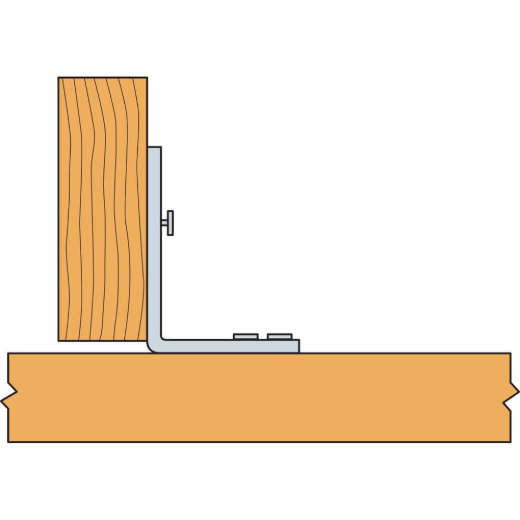

  • Features a 1-1/2 inch slot that permits vertical truss chord movement when loads are applied, helping to minimize stress on fasteners.
  • The narrow 1-1/4 inch width fits tight framing conditions.
  • Helps prevent fasteners from tearing through ceiling sheetrock when paired with a drywall stop.
  • Not recommended for floor applications due to potential joist deflections and squeaks.

Includes

  • 200 pcs per case (for some product listings)
Products specifications
gauge 18 ga
material Steel
finish Galvanized

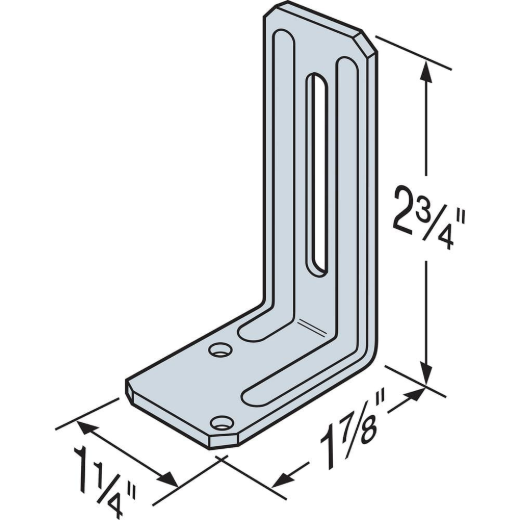

width 1-1/4 inch
height 2-3/4 inch
depth 1-7/8 inch
*
*
*
