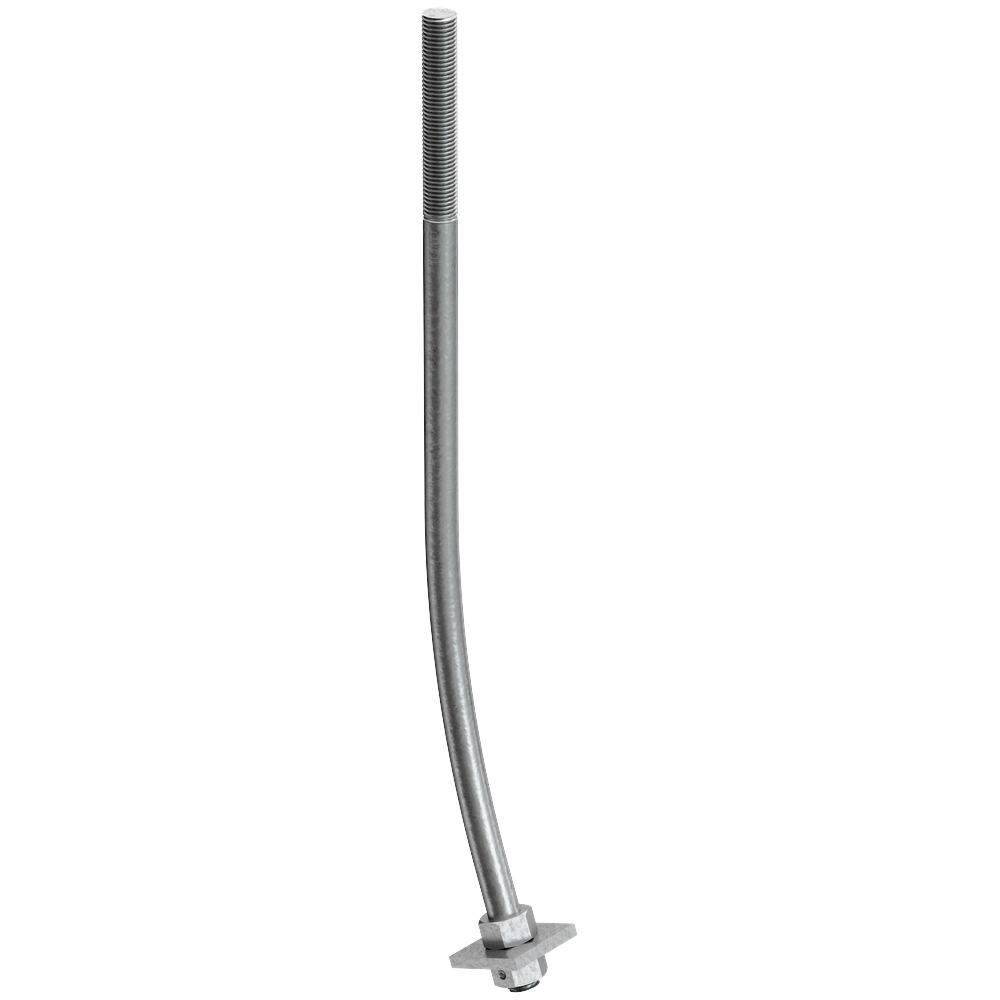

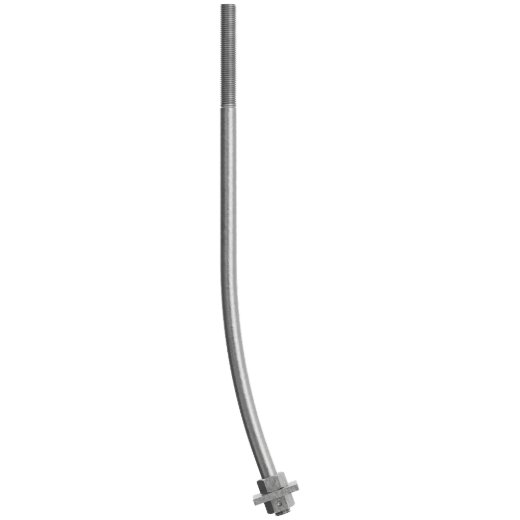

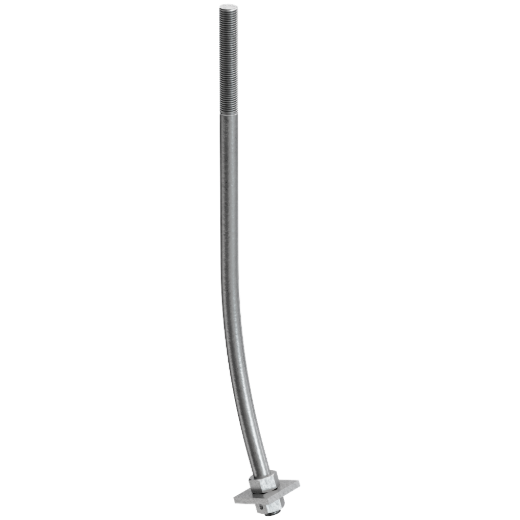

Simpson SB 1" Diameter x 30" Hot-Dip Galvanized Anchor Bolt

Mfr.: Simpson Strong-Tie
Item #: I045564
Mfr. #: SB1X30HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $132.96
i h h

Description

The SB anchor bolt is a high-capacity solution for holdowns that require larger diameter anchors. The smooth transition angle positions the head of the anchor in the optimum location in the concrete stem wall to maximize performance. The SB1x30 covers holdowns utilizing a 1 inch diameter anchor that exceed the capacity of our SSTB bolts.

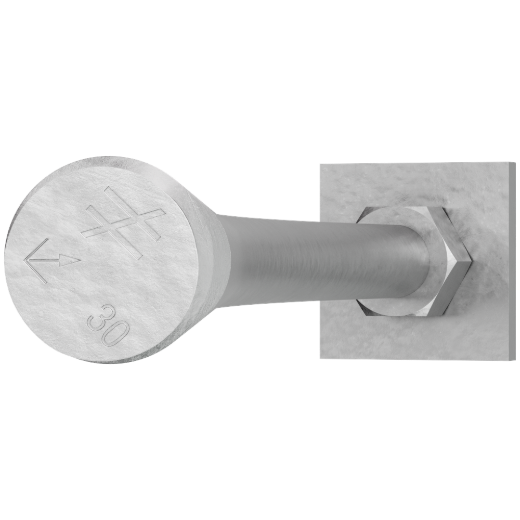

  • Identification on the bolt head showing embedment angle and model
  • Sweep geometry to optimize position in form
  • Rolled thread for higher tensile capacity
  • Hex nuts and plate washer fixed in position

Features

  • Identification on the bolt head showing embedment angle and model
  • Sweep geometry to optimize position in form
  • Rolled thread for higher tensile capacity
  • Hex nuts and plate washer fixed in position
  • Diameter: 1 in.
  • Length: 30 in.

Specifications


Diameter1 inchLength30 inch
Products specifications
Anchor Diameter 1 in
Anchor Type Cast-In-Place
Code Listing ASTM F1554 Grade 36
Country of Origin Varies (subject to change)
Finish / Coating Hot-Dip Galvanized
Head Style Threaded Stud
Material Carbon Steel
Overall Length 30 in
*
*
*
